SFP-400B 15124:G1 06/24/97
23
Side View
Front View
Single-gang Box
Connect to corresponding terminals of RZA-
4X Remote Annunciator.
+24V
Out #1
Out #2
Out #3
Out #4
System Trouble
Sound
Resound
1
2
3
4
5
6
7
8
The wiring of this module must follow the requirements as specified in the
"General"
Section,
"UL Power
Limited Wiring Requirements."

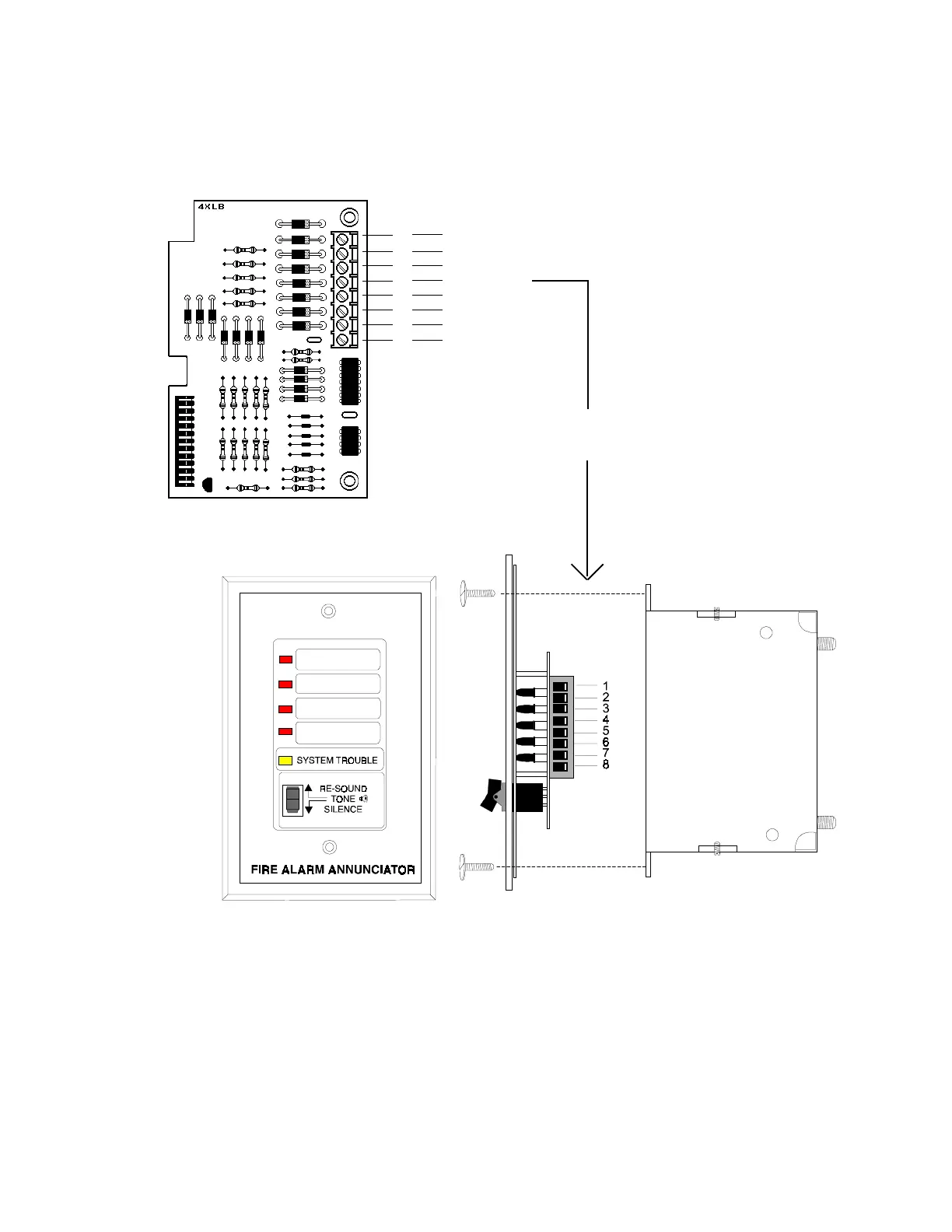

LED Interface Module -- 4XLM
Remote Annunciator -- RZA-4X
Figure 3.6-3: LED Interface Module--4XLM
Note:
Make wiring connections with system power off. Maximum wire impedance is 50 ohm per wiring connection.
