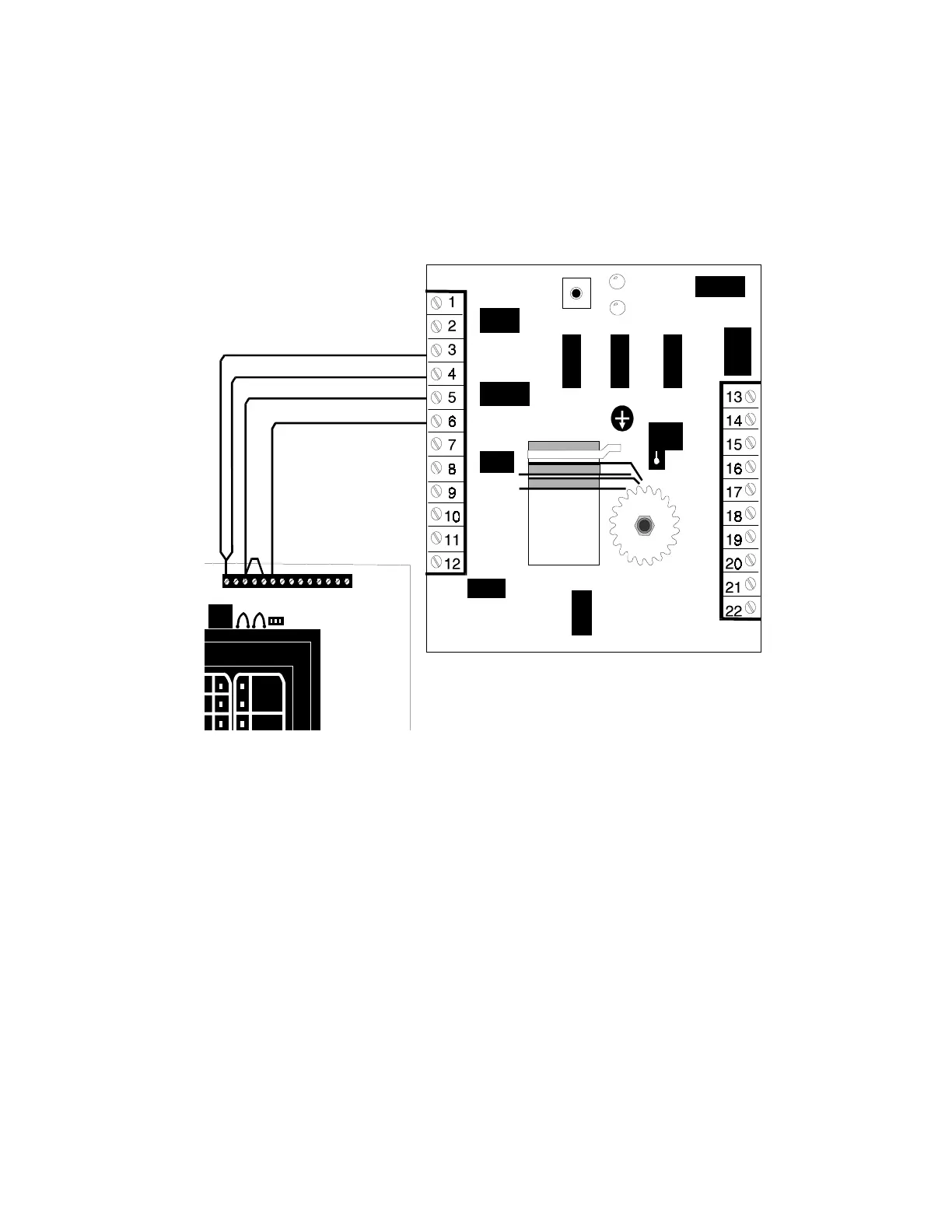

Figure B-4: NFPA 72-1993 Proprietary Protective Signaling System
Notes:
1) Connection between control panel and the transmitter are supervised by the transmitter.
2) Use transformer model ULT STK. NO. 1000391 (listed, Class 2, 12 V, 10 VA.). See Potter Electric Signal
Company Bulletin # 748.
3) This control panel/transmitter arrangement can be employed for NFPA 72-1993 Proprietary Protective
Signaling System.
RESET
TROUBLE
ALARM
SFP-400B
Notes:
Form-C Trouble contact which will automatically activate on any Trouble condition.
Form-C Alarm contact programmed to activate on General Alarm.
