Nova Lock&Load User Manual

TROUBLESHOOTING CONTINUED
NOVA Lock & Load
TM
Owner’s Manual
12
LIMIT SWITCH TEST PROCEDURE
 Set multimeter to “RX1” scale for “Continuity
Test”.
 Attach multimeter leads to pins “B” and “C” of
limit switch connector. You should have:
- plunger released - no meter reading.
- plunger depressed - a “Full Scale” meter
reading.
NOTE: The green (ground) wire of the limit switch
does not have to be tested. A continuity test lamp
may be used instead of a multimeter.

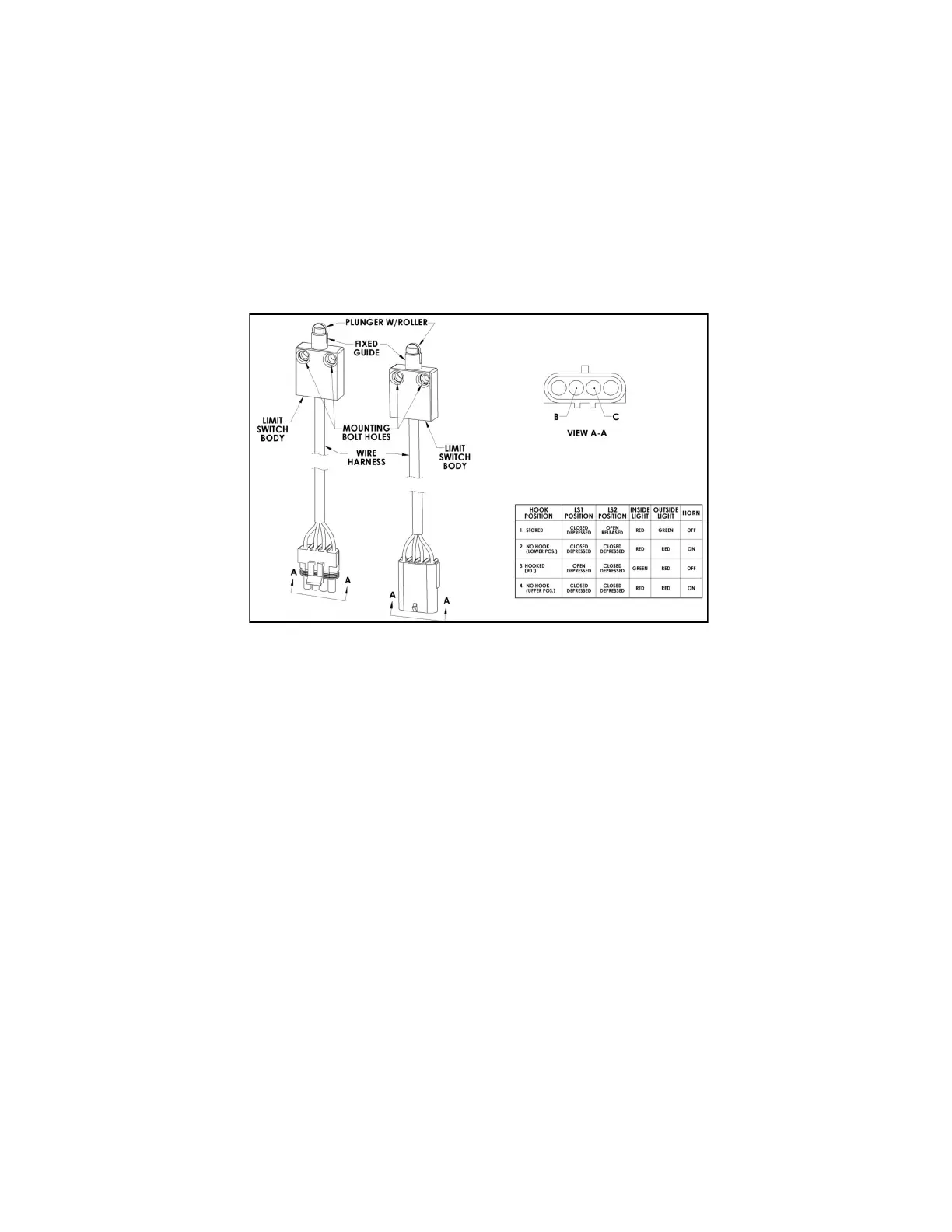

FIGURE I—LIMIT SWITCH AND HOOK POSITION CHART
