ELECTRICAL SCHEMATIC

NOVA Lock & Load

TM

Owner’s Manual

14

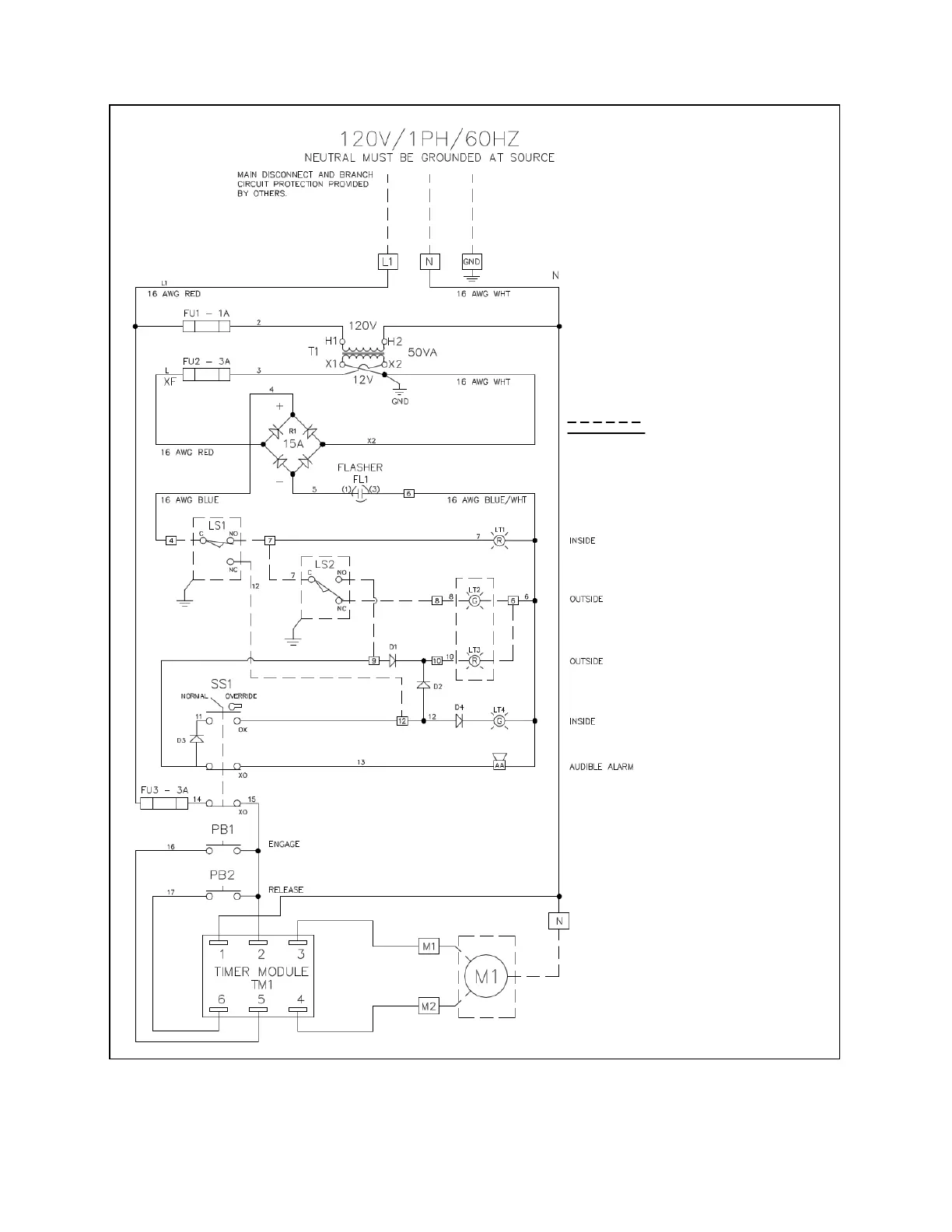

FIGURE K—ELECTRICAL SCHEMATIC

WIRING PROVIDED BY OTHERS

WIRING PROVIDED BY NOVA TECHNOLOGY

LOCK MOTOR

1/10 HP

3.5 FLA

MOTOR HAS AUTOMATIC

THERMAL OVERLOAD
