Nova Lock&Load User Manual

PARTS
NOVA Lock & Load
TM
Owner’s Manual
16

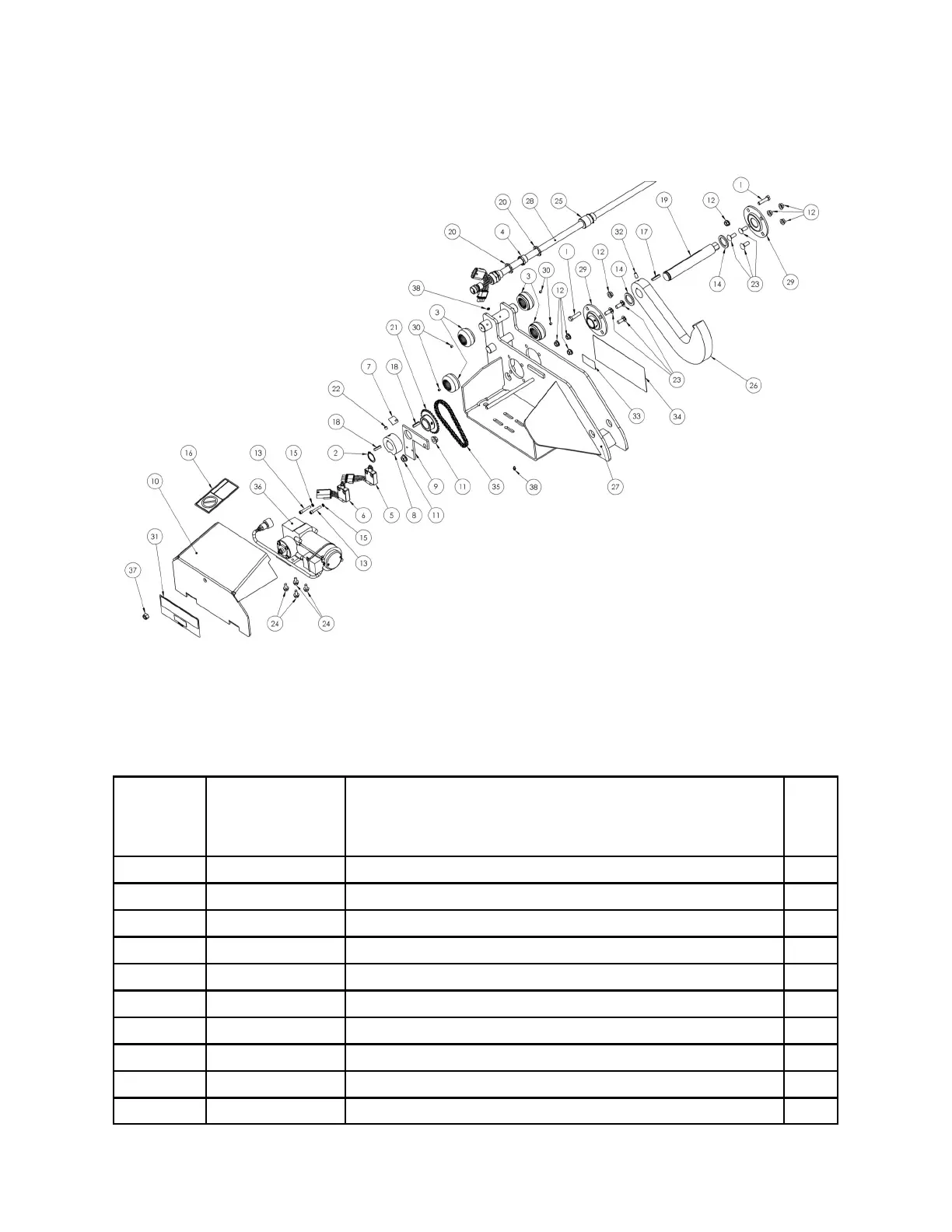

CARRIAGE ASSEMBLY DRAWING
FIGURE M —CARRIAGE ASSEMBLY
CARRIAGE ASSEMBLY PARTS LIST
ITEM NO. PART NUMBER DESCRIPTION
QTY.
1 MF2-015-000 3/8"-16 X 1 1/2" HH CAP SCREW
2
2 MF2-061-000 SNAP RING
1
3 MF2-047-000 ROLLER ASSEMBLY
4
4 MF2-034-000 3/4" CONDUIT NIPPLE
1
5 MF2-038-000 LIMIT SWITCH, LS1
1
6 MF2-039-000 LIMIT SWITCH, LS2
1
7 MF2-094-000 CAM DECAL
1
8 MF2-028-000 CAM
1
9 MF2-024-000 LIMIT SWITCH MOUNTING PLATE
1
10 MF2-042-000 CHAIN COVER
1
