SLOPE EXTENSION DRAWING AND PARTS LIST

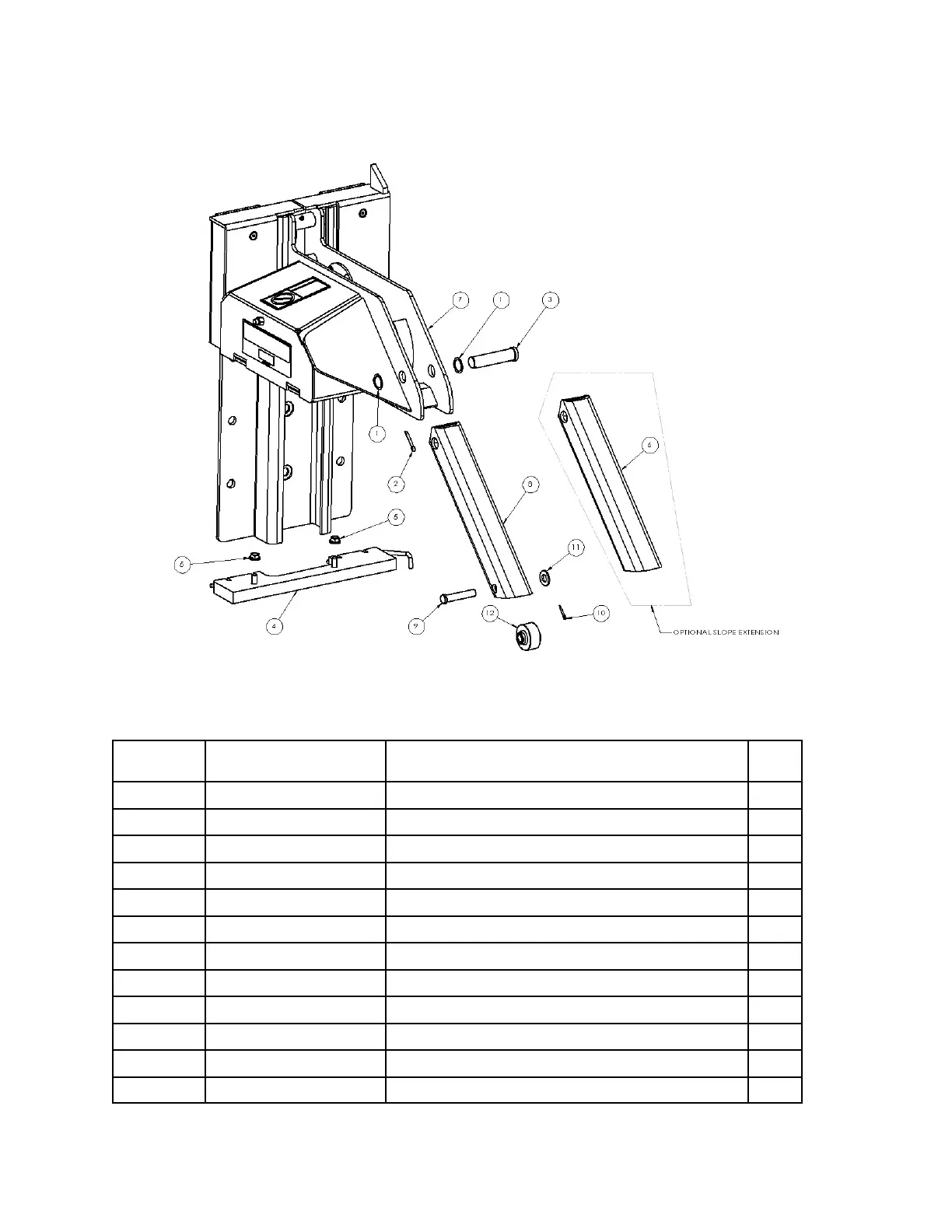

FIGURE O—SLOPE EXTENSION ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 MF2-045-000 1" X 18 GAUGE FLAT WASHER 2
2 MF2-046-000 COTTER PIN 1
3 MF2-044-000 SLOPE EXTENSION PIVOT PIN 1
4 MF2-043-000 SPRING MOUNTING PLATE ASSEMBLY 1
5 MF2-026-000 7/16"-14 SERRATED FLANGE LOCK NUT 2
6 MF2-002-000 SLOPE EXTENSION 1
7 MF2-007-000 LOCK & LOAD CARRIAGE ASSEMBLY 1
8 MF2-132-000 ROLLER SLOPE EXTENSION 1
9 MF2-143-000 5/8” X 3” CLEVIS PIN 1
10 MF2-142-000 COTTER PIN 1
11 MF2-130-000 5/8” SAE FLAT WASHER 1
12 MF2-136-000 ROLLER ASSEMBLY 1
