4.4 Spindle Index/Lock
The spindle index pin locks the headstock spindle. It is selectable in 15-degree increments (24 divisions). An indicator
decal is on the rear headstock.
1. Stop the lathe.
2. To lock the spindle, lift up and turn the Locking Knob into the LOCK position until the internal pin engaged into
the index fly wheel. Caution: Ensure the pin engaged into a slot by turning the spindle with the hands. to unlock,
turn it into the UNLOCK position.

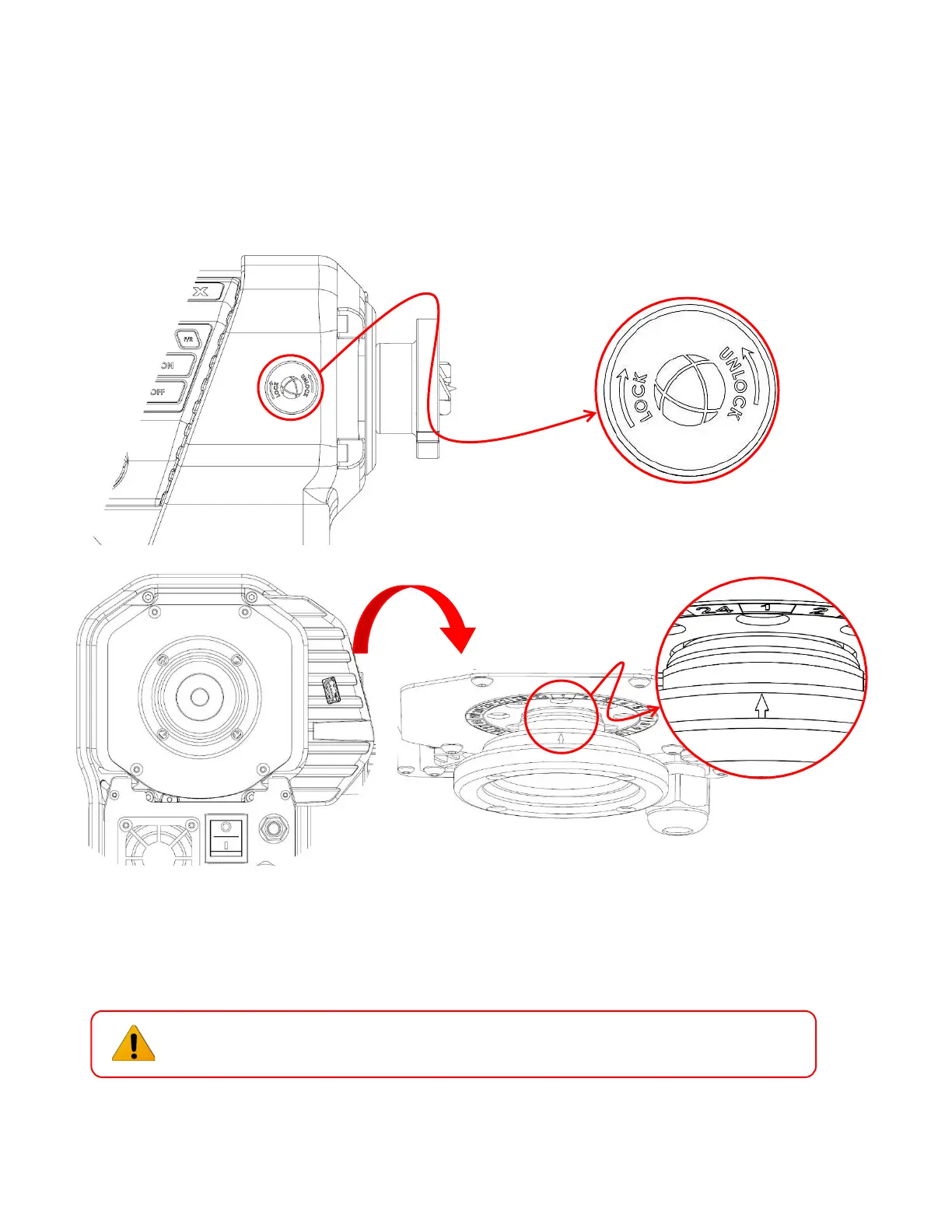

Spindle Lock
Arrow on rear handwheel indicates position of spindle indexing
WARNING! Make sure the index pin is disengaged before operating the lathe.
