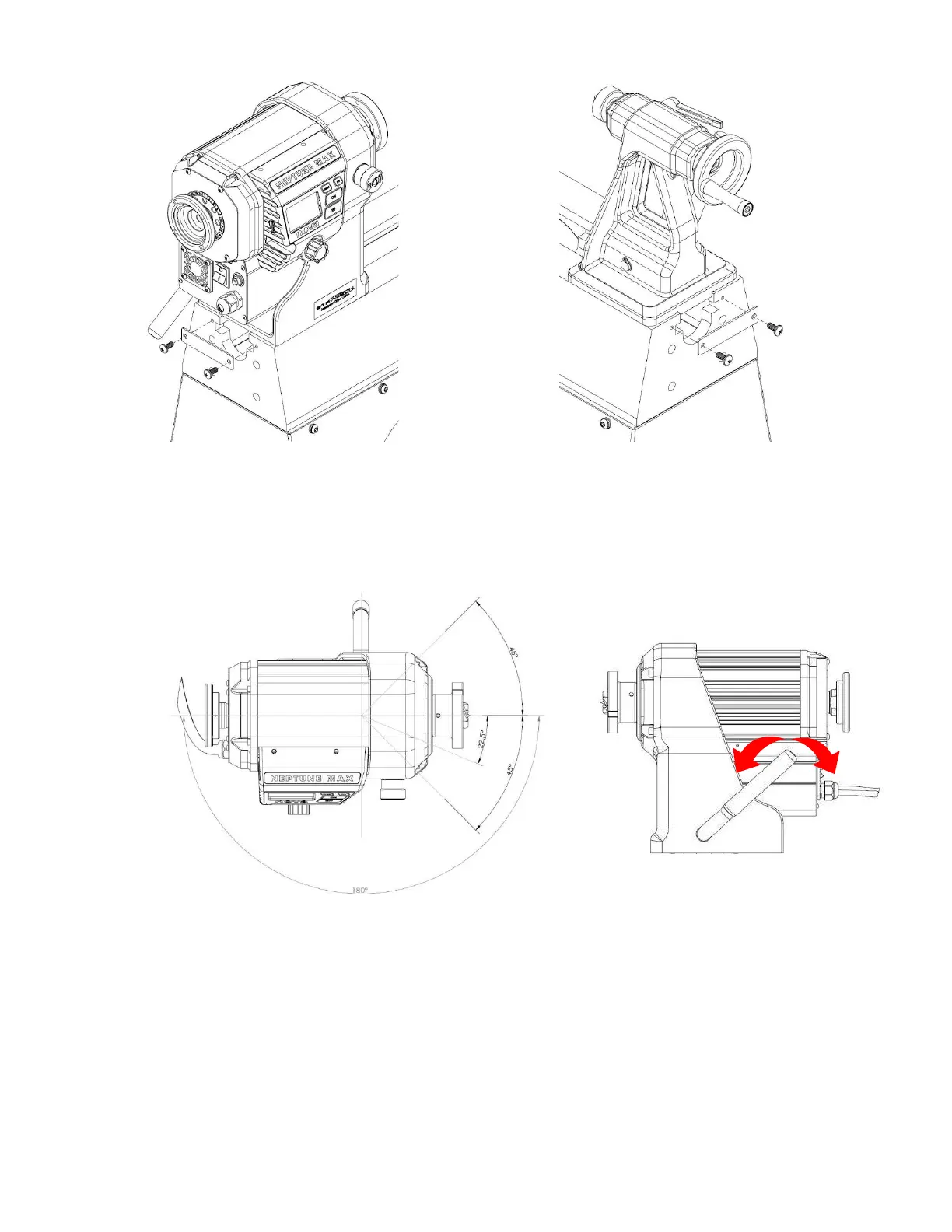

2. Replace stop plates on both ends of bed.
Screw end plate into bed to secure headstock onto bed
Screw end plate into bed to secure tailstock onto bed
4.3 Positioning the Headstock on the Bed
The headstock uses a cam lock assembly for securing in place along the bed. To move the headstock:
1. To unlock the headstock, push the locking handle backwards or lock the headstock by pushing the handle
forwards.
2. When the headstock is unlocked, slide and swivel the headstock along the bed to the desired position.
3. Re-Lock the headstock firmly, ensure the headstock is secured before running the lathe.
Lock
Unlock
