4.2.3 Mounting the Headstock, Toolrest and Tailstock onto the Bed

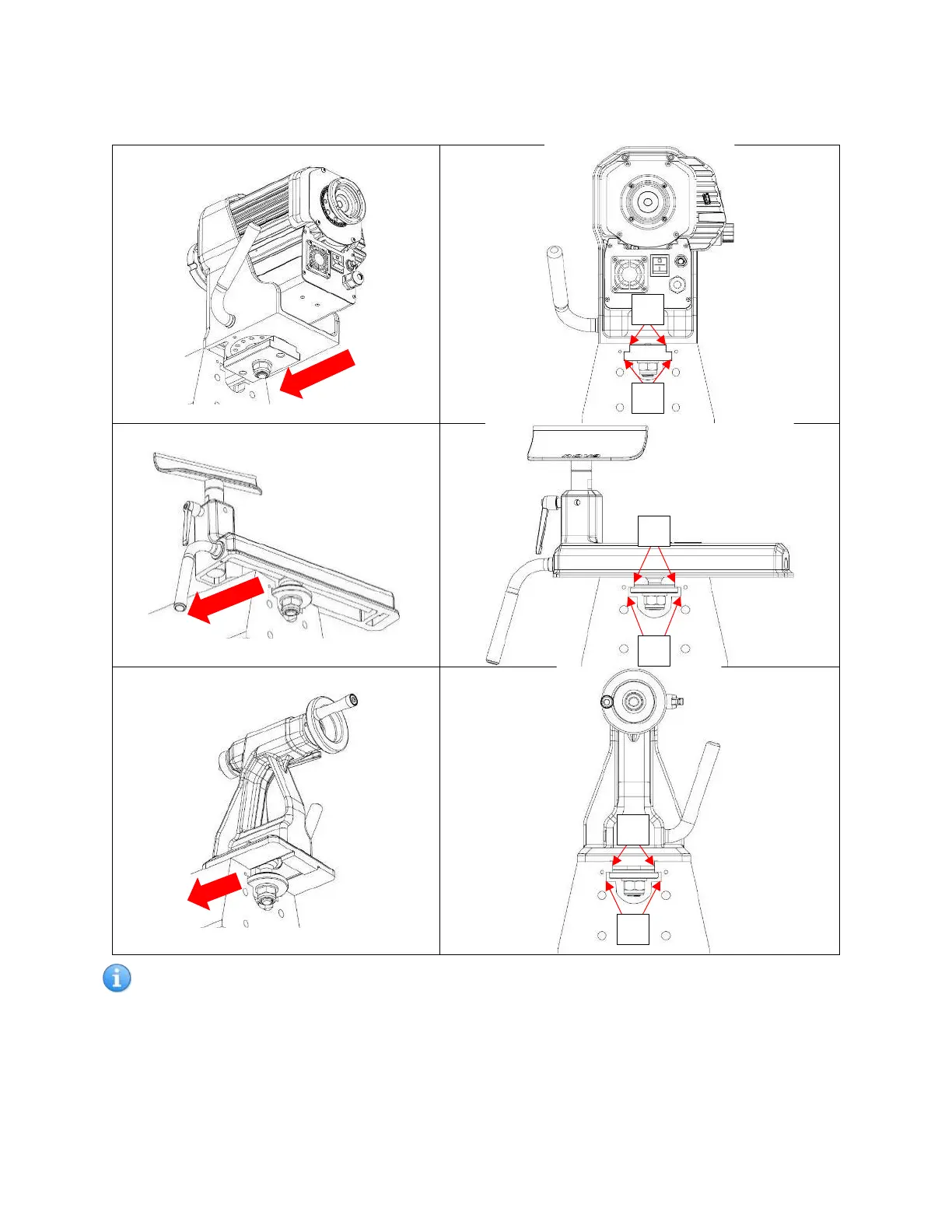

1. Slide headstock, Toolrest, and tailstock onto bed, ensuring lock plate (A) is correctly lined up with bed way (B),
as shown below:
Note: Turn the lock handle to adjust the position of the lock plate if they cannot slide
onto the lathe bed section.
