IMPORTANT: SWITCH OFF ELECTRICAL MAINS AT THE
MINIATURE CIRCUIT BREAKER BOX.
Installation procedures

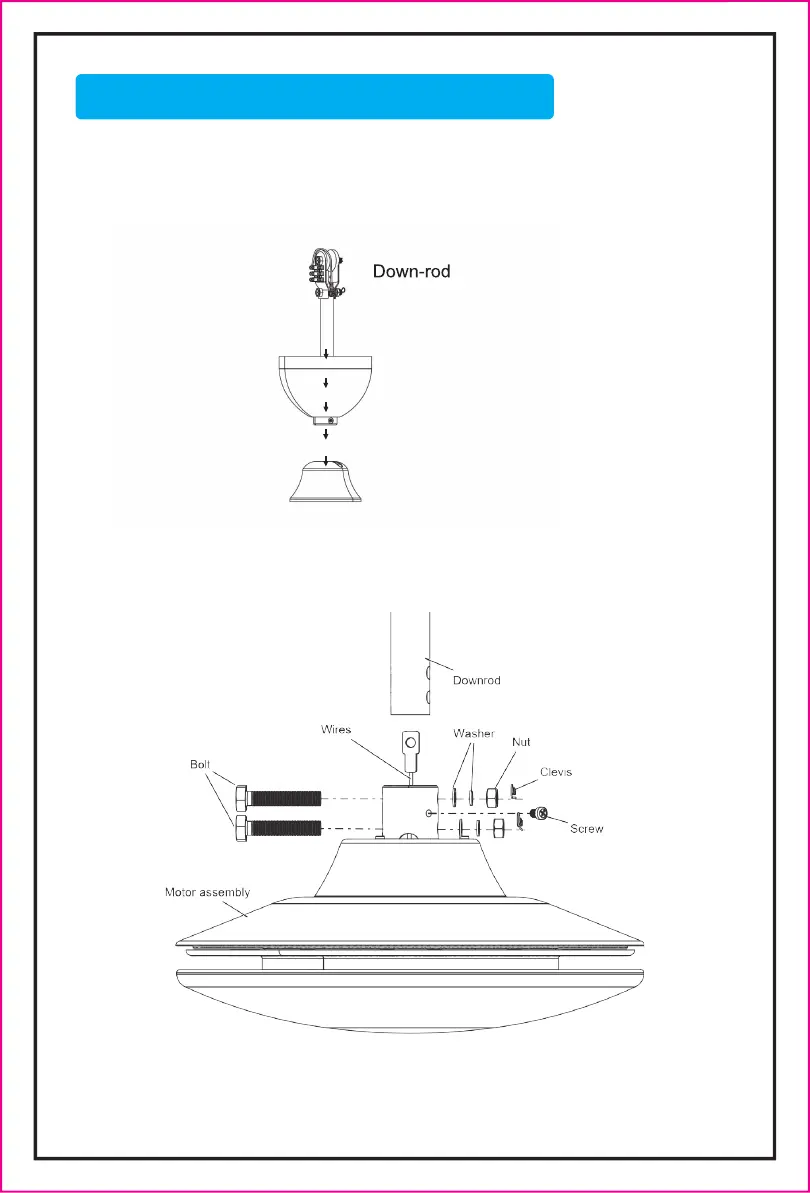

Step 1 - Assembly canopy and coupling cover through the down rod.
Step 2 - Remove both sets of clevis pins, nuts, washers, and bolts from the motor
and assemble the joint. Route all wires from the motor assembly through
the down rod. Place down rod to coupling with bolts, washers, nuts, and
tighten them firmly then insert the clevis pins. Step 2 -
Canopy
Coupling cover
3
