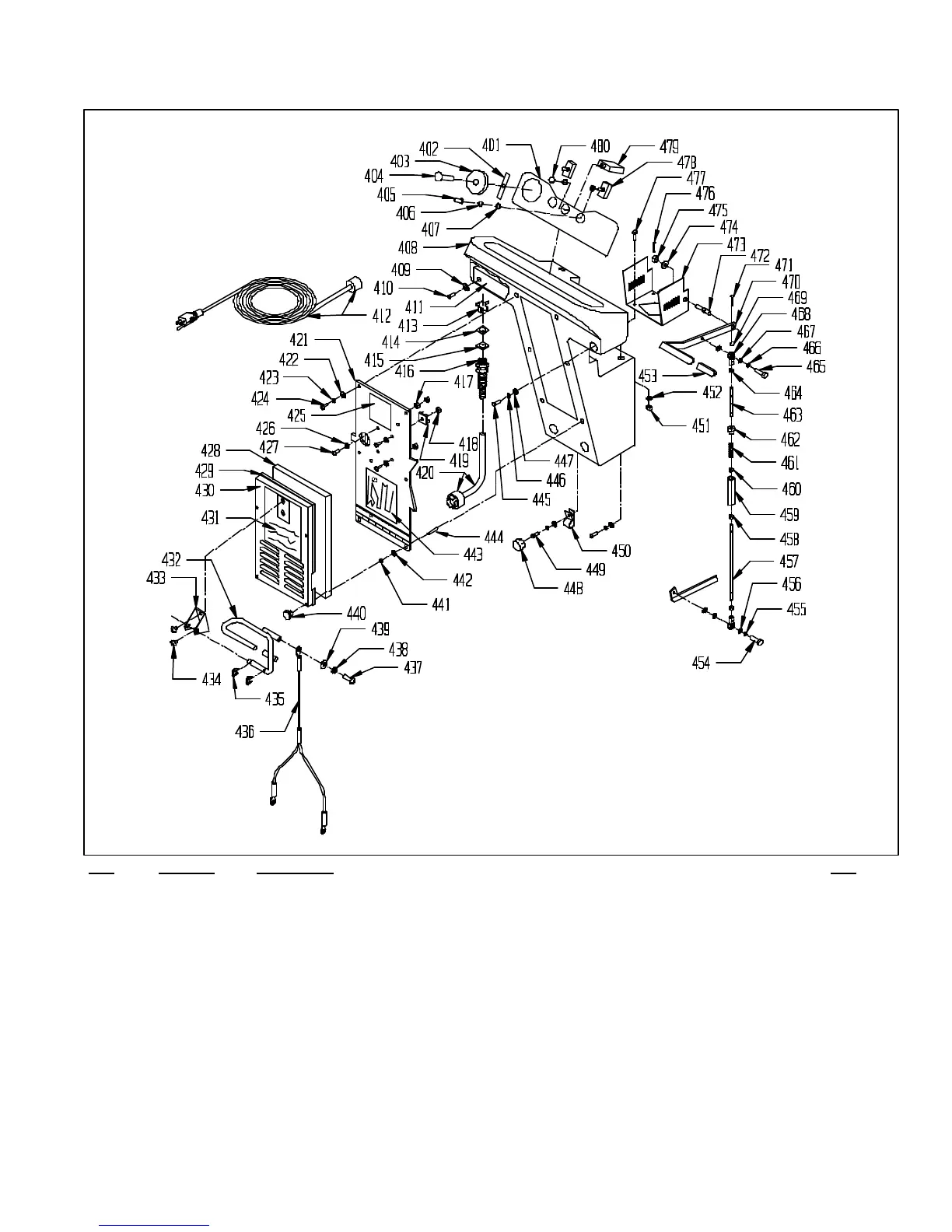

CONTROL PANEL ASSEMBLY
ITEM PART NO. DESCRIPTION QTY
463 26-9-181-1 SHORT LIFT ROD, BRUSH 1
464 91-2-201-0 3/8-24 HEX NUT 2
465 91-2-198-0 7/16 I.D. X 1 O.D. X .075/.080 THICK SAE FLAT WASHER (3/8) 2
466 91-2-226-0 3/8-16 X 1 HEX BOLT 1
467 91-2-210-0 3/8 SPLIT LOCK WASHER 1
468 44-9-053-1 3/8 ROD END 2
469 23-9-256-1 CIRCLE COTTER - #CC-7 1
470 26-9-137-3 BRUSH LIFT HANDLE 1
471 23-9-195-1 PIN 1
472 24-9-060-1 PIVOT STUD 1
473 23-9-556-3 BRACKET, MOUNT LIFT ARM 1
474 91-2-245-0 17/32 I.D. X 1 1/16 O.D. X .074/.121 THICK SAE FLAT WASHER (1/2) 1
475 23-9-271-1 1/2-13 SLOTTED HEX NUT 1
476 52-9-652-1 HUMPED COTTER PIN 1
477 91-2-125-0 1/4-20 X 3/4 HEX BOLT WITH NYLON PATCH 4
478 07-9-204-1 SWITCH, TOGGLE VAC 2
479 23-9-220-1 CIRCUIT BREAKER, 115 VOLT 10 AMP 1
23-9-270-1 CIRCUIT BREAKER, 240 VOLT 5 AMP 1
480 48-9-247-1 CIRCUIT BREAKER BUTTON SEAL 1
