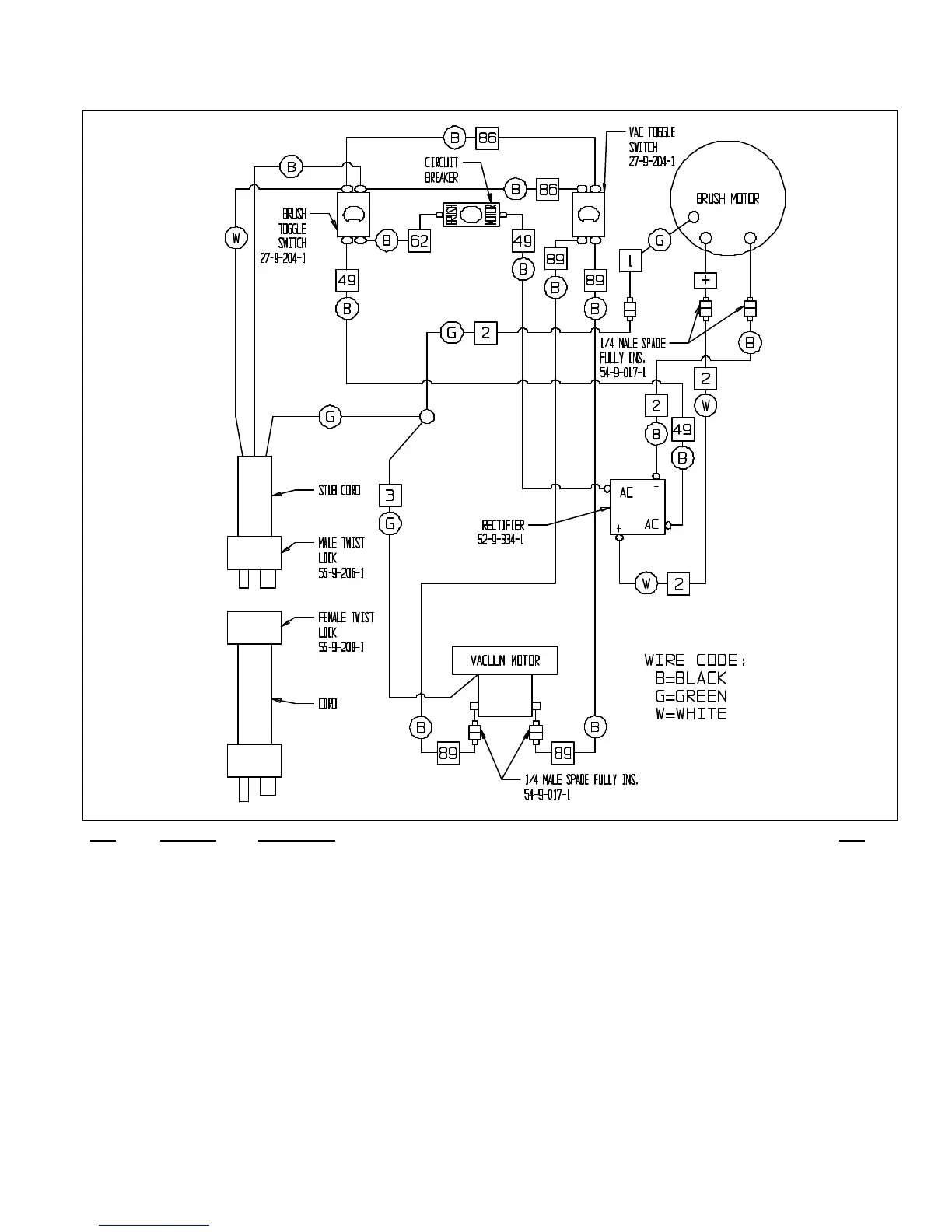

ELECTRICAL WIRING DIAGRAM
ITEM PART NO. DESCRIPTION QTY
1 23-9-287-1 GROUND WIRE 115 VOLT / 240 VOLT 1
2 23-9-308-1 MOTOR CORD, 115 VOLT & 240 VOLT 1
3 32-9-069-1 GREEN WIRE GROUND TO MOTOR 1
49 27-9-216-1 WIRE ASSEMBLY, #14 X 12", 49 2
62 27-9-237-1 WIRE #14 X 6", #62 1
86 33-9-073-1 WIRE #18 X 10", #86 2
89 23-9-202-1 WIRE LEAD VACUUM - SWITCH 2
— 02-9-967-1 SHUKO CORD 75' 16-3 240 VOLT 1
— 23-9-107-1 VACUUM MOTOR 120 VOLT 1
— 23-9-109-1 VACUUM MOTOR 240 VOLT 1
— 23-9-220-1 CIRCUIT BREAKER, 115 VOLT 10 AMP 1
— 23-9-242-1 STUB CORD, WITH MALE TWIST LOCK 120 VOLT 1
— 23-9-244-9 STUB CORD, WITH MALE TWIST LOCK 240 VOLT 1
— 23-9-270-1 CIRCUIT BREAKER, 240 VOLT 5 AMP 1
— 23-9-301-1 GEAR MOTOR (IMPERIAL) 3/4 HP 120 VOLT 1
— 23-9-302-1 GEAR MOTOR (IMPERIAL) 3/4 HP 240 VOLT 1
— 23-9-379-1 CORD - 75 FEET, 14-3 ST, 120 VOLT 1
— 27-9-204-1 TOGGLE SWITCH - VAC 1
— 52-9-334-1 RECTIFIER, OHIO, VK - 447 1
— 54-9-017-1 1/4 MALE SPADE TERMINAL FULLY INSULATED 4
— 55-9-206-1 MALE TWIST LOCK 120/240 VOLT 1
— 55-9-208-1 FEMALE TWIST LOCK 120/240 VOLT 1
