NSS WRANGLER 20 E - Page 14

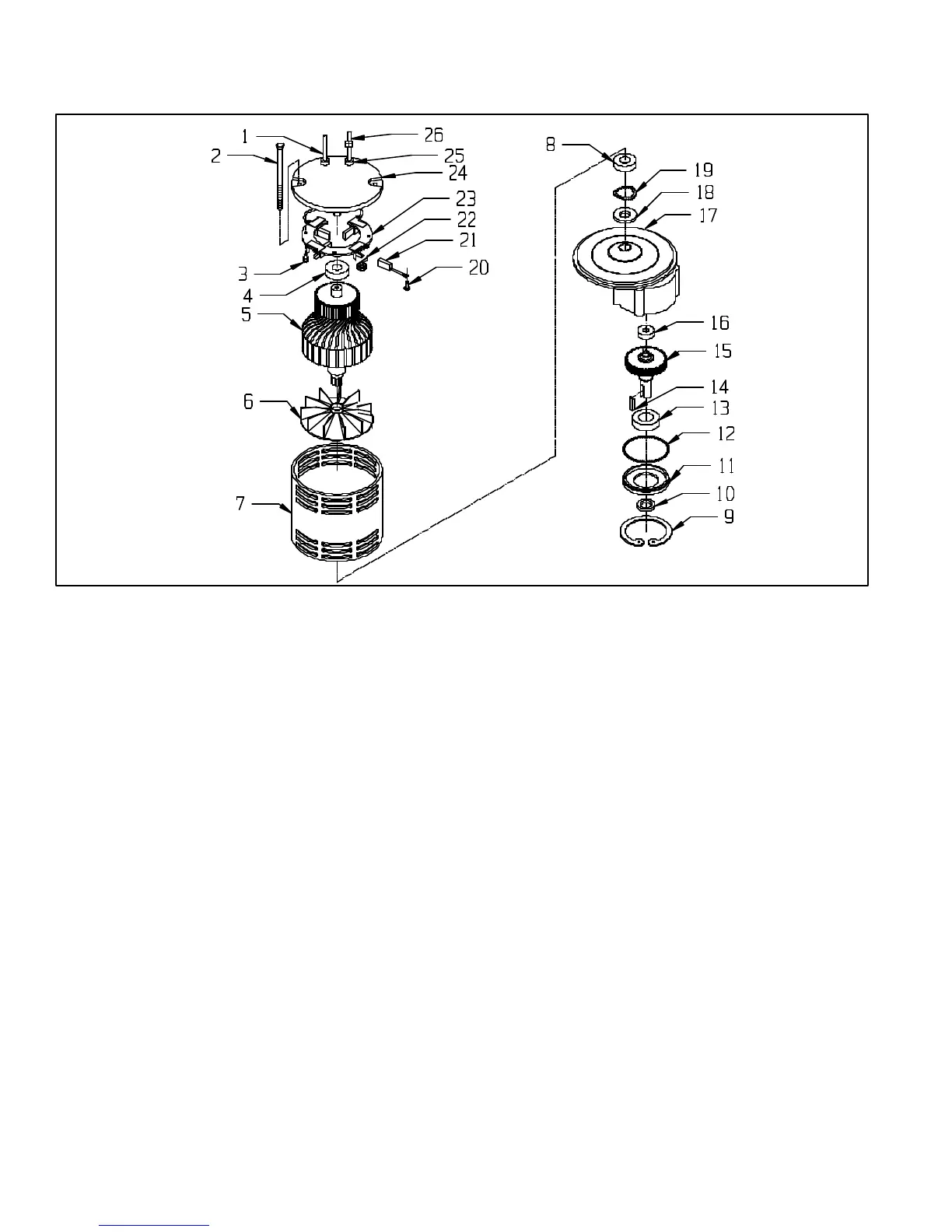

BRUSH GEAR MOTOR
ITEM PART NO. DESCRIPTION QTY.
23-9-300-1 COMPLETE MOTOR ASSEMBLY - 120 VOLT 1
23-9-302-1 COMPLETE MOTOR ASSEMBLY - 24- VOLT 1
1 23-9-327-1 NEGATIVE LEAD 1
2 33-9-120-1 THRU BOLT 1/4-20 X 7 3/4 2
3 ———- 10-24 X 1/2 SELF TAP ROUND HEAD SLOTTED SCREW 2
4 50-9-204-1 TOP END BEARING 1
5 23-9-316-1 ARMATURE ASSEMBLY, INCLUDES VENT FAN AND BEARINGS - 120 VOLT 1
23-9-321-1 ARMATURE ASSEMBLY, INCLUDES VENT FAN AND BEARINGS - 240 VOLT 1
6 33-9-119-1 ARMATURE VENT FAN 1
7 23-9-315-1 STATOR FRAME ASSEMBLY WITH MAGNETS 1
8 33-9-105-1 BOTTOM END BEARING 1
9 33-9-117-1 SNAP RING 1
10 33-9-116-1 OIL SEAL, SMALL 1
11 33-9-115-1 END CAP 1
12 33-9-114-1 “O” RING 1
13 33-9-113-1 BOTTOM BEARING, LARGE 1
14 27-9-268-1 MOTOR KEY, 1/4 X 1/4 X 1 1
15 33-9-112-1 GEAR SHAFT 1
16 33-9-111-1 TOP BEARING, SMALL 1
17 33-9-110-1 GEAR BOX - HOUSING ONLY 1
33-9-118-1 GEAR BOX ASSEMBLY, (INCLUDES ITEMS 9 TO 18) 1
18 33-9-109-1 OIL SEAL, LARGE 1
19 27-9-759-1 HELICAL WASHER 1
20 ———- 10-32 X 1/2 PAN HEAD SLOTTED SCREW, BRASS 4
21 23-9-319-1 CARBON BRUSH - 120 VOLT 4
23-9-324-1 CARBON BRUSH - 240 VOLT 4
22 27-9-757-1 CARBON BRUSH SPRING 4
23 23-9-317-1 BRUSH BOARD ASSEMBLY, INCL. CARBON BRUSHES & SPRINGS - 120 VOLT 1
23-9-322-1 BRUSH BOARD ASSEMBLY, INCL. CARBON BRUSHES & SPRINGS - 240 VOLT 1
24 33-9-100-1 TOP END BRACKET ONLY 1
23-9-318-1 TOP END BRACKET WITH BRUSH BOARD ASSEMBLY - 120 VOLT 1
23-9-323-1 TOP END BRACKET WITH BRUSH BOARD ASSEMBLY - 240 VOLT 1
25 23-9-320-1 STRAIN RELIEF 2
26 23-9-326-1 POSITIVE LEAD 1
