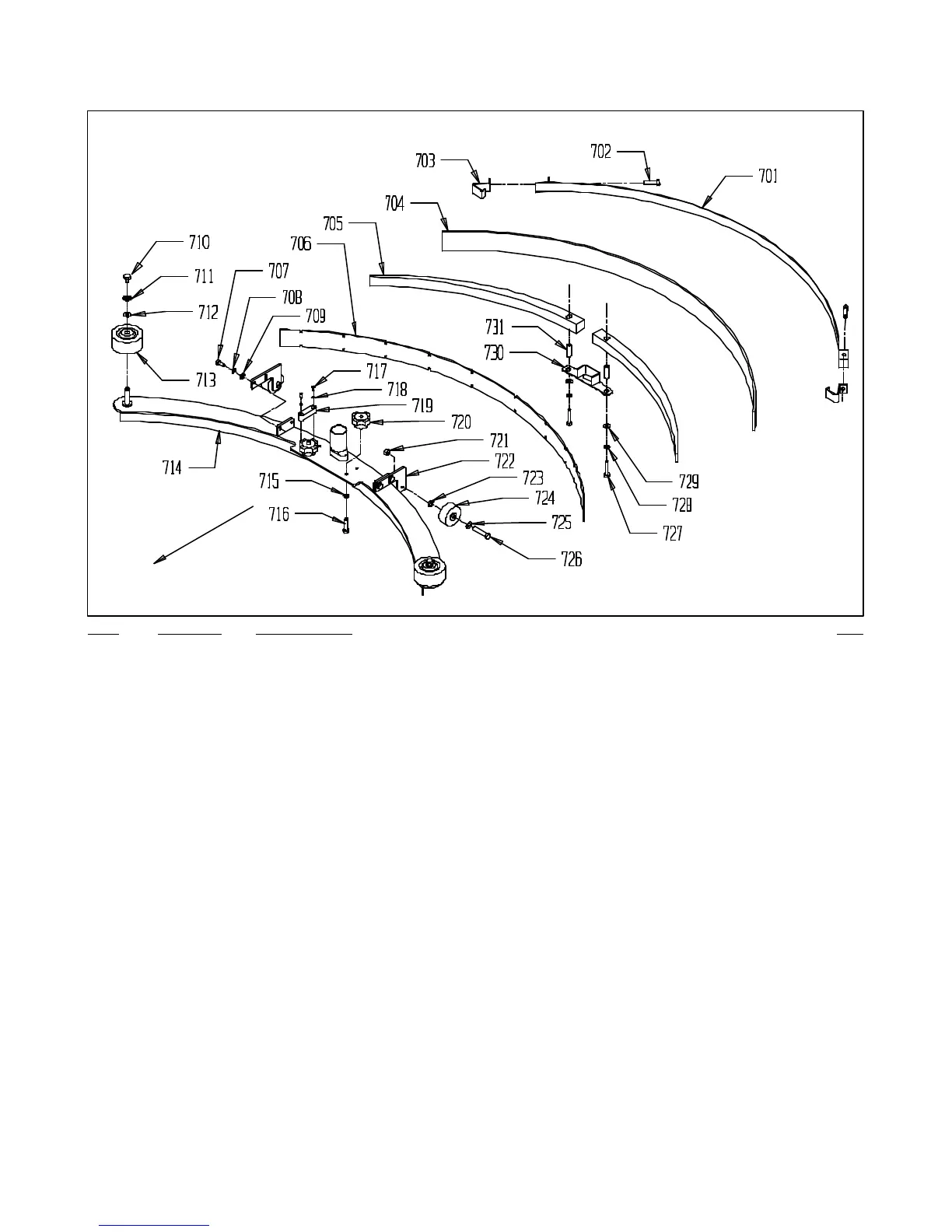

CURVED SQUEEGEE ASSEMBLY 24-9-249-9
ITEM PART NO. DESCRIPTION QTY
701 24-9-255-1 REAR SECURING STRAP 1
702 91-2-172-0 5/16-18 X 1 1/4 FULL THREADED HEX HEAD BOLT 2
703 24-9-256-1 HOOKED END 2
704 24-9-253-1 REAR BLADE 1
705 24-9-251-1 CENTER WEDGE 2
706 24-9-252-1 FRONT BLADE 1
707 91-2-121-0 1/4-20 X 5/8 HEX BOLT 4
708 91-2-088-0 1/4 SPLIT LOCK WASHER 4
709 91-2-093-0 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4) 4
710 91-2-156-0 5/16-18 X 1/2 HEX BOLT 2
711 91-2-141-0 5/16 EXTERNAL STAR LOCK WASHER 2
712 91-2-139-0 11/32 I.D. X 11/16 O.D. X .051/.080 THICK SAE FLAT WASHER (5/16) 2
713 27-9-028-1 BUMPER WHEEL 2
714 24-9-250-3 MAIN HOUSING 1
24-9-249-9 CURVED SQUEEGEE ASSEMBLY 1
715 91-2-152-0 5/16 SPLIT LOCK WASHER 2
716 91-2-172-0 5/16-18 X 1 1/4 FULL THREADED HEX HEAD BOLT 2
717 91-2-007-0 6-32 X 3/8 ROUND HEAD PHILLIPS MACHINE SCREW 2
718 91-2-003-0 #6 SPLIT LOCK WASHER 2
719 24-9-258-1 SQUEEGEE LEVEL 1
720 27-9-100-2 SQUEEGEE KNOB 2
721 91-2-145-0 5/16-18 HEX NUT WITH NY-LOK INSERT 2
722 24-9-257-1 DOLLY WHEEL MOUNTING BRACKET 2
723 91-2-139-0 11/32 I.D. X 11/16 O.D. X .051/.080 THICK SAE FLAT WASHER (5/16) 2
724 30-9-674-1 ROLLER WHEEL 2
725 91-2-139-0 11/32 I.D. X 11/16 O.D. X .051/.080 THICK SAE FLAT WASHER (5/16) 2
726 91-2-176-0 5/16-18 X 1 3/4 HEX BOLT 2
727 91-2-128-0 1/4-20 X 1 1/2 HEX BOLT 2
728 91-2-088-0 1/4 SPLIT LOCK WASHER 2
729 91-2-093-0 9/32 I.D. X 5/8 O.D. X .051/.080 THICK SAE FLAT WASHER (1/4) 2
730 24-9-254-1 CENTER HOLD DOWN 1
731 24-9-259-1 CENTER HOLD DOWN SPACER 2
