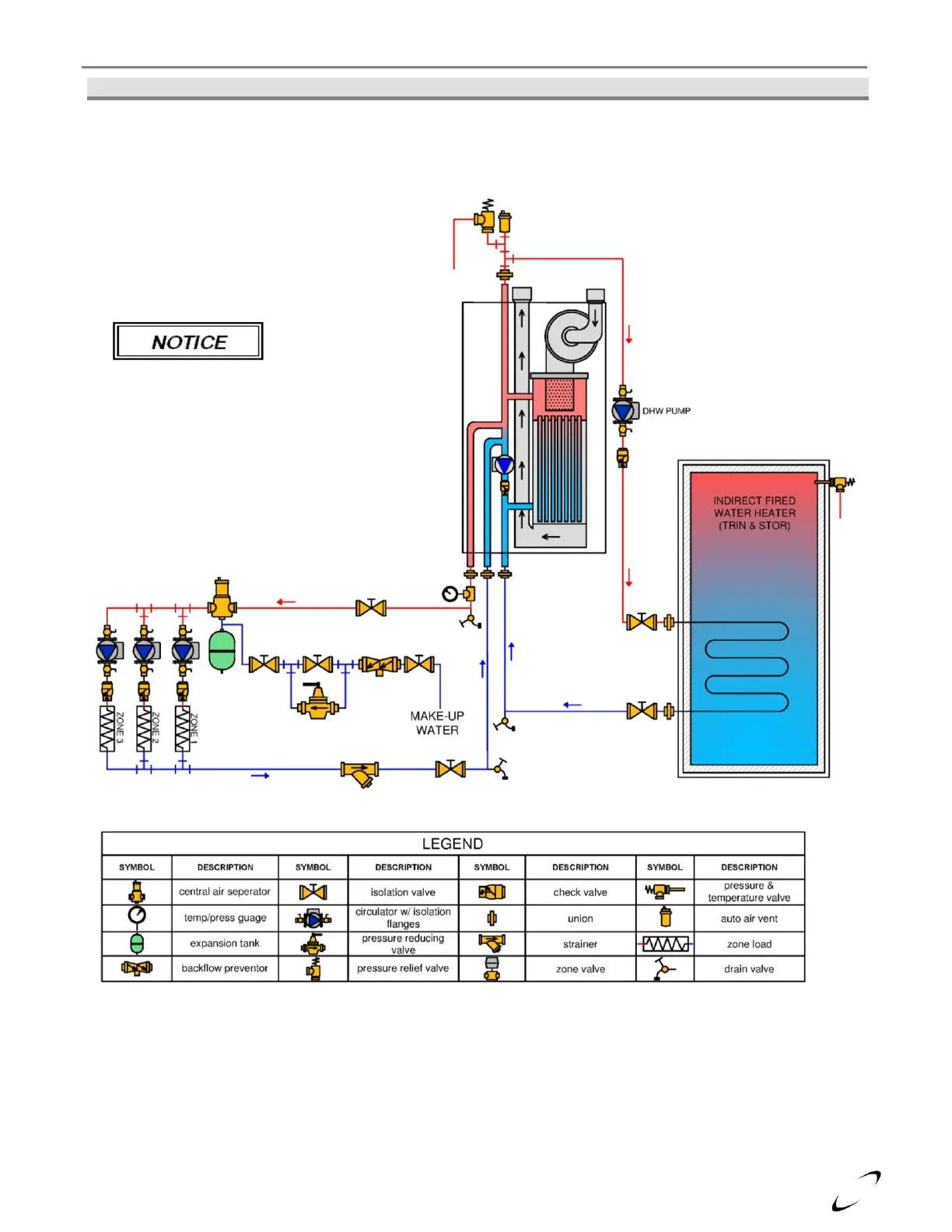

Figure 10-10 VM110 Plumbing Schematic – Multiple CH Pumps
w/ Indirect Fired Water Heater
Figure illustrates the basic
plumbing requirements for
a VM110 boiler installation with multiple Central
Heating circulators, and an Indirect Fired Water
Heater. Refer to Figure 10-2 for boiler fitting
identification.
