Nu-Tek MT2203 - Illustrations Current Waveforms

f Carrier frequency
fb Beat frequency
f Carrier frequency
fb Beat frequency
f Beat frequency
Premod
IFC-4P
Russian
21
Polarity: This refers to the polarity (+/-) of the red lead wire; connect the lead wire to the
active electrode.
Cycle Time: refers to the time that the current is On and Off (in seconds). Example: for a
Cycle Time of 10/50, the current will be flowing for 10 seconds and resting for 50 seconds.
Ramp: The time that the current will take to increase to the set intensity level. Ramps occur
at the beginning and ending of a timed On cycle.

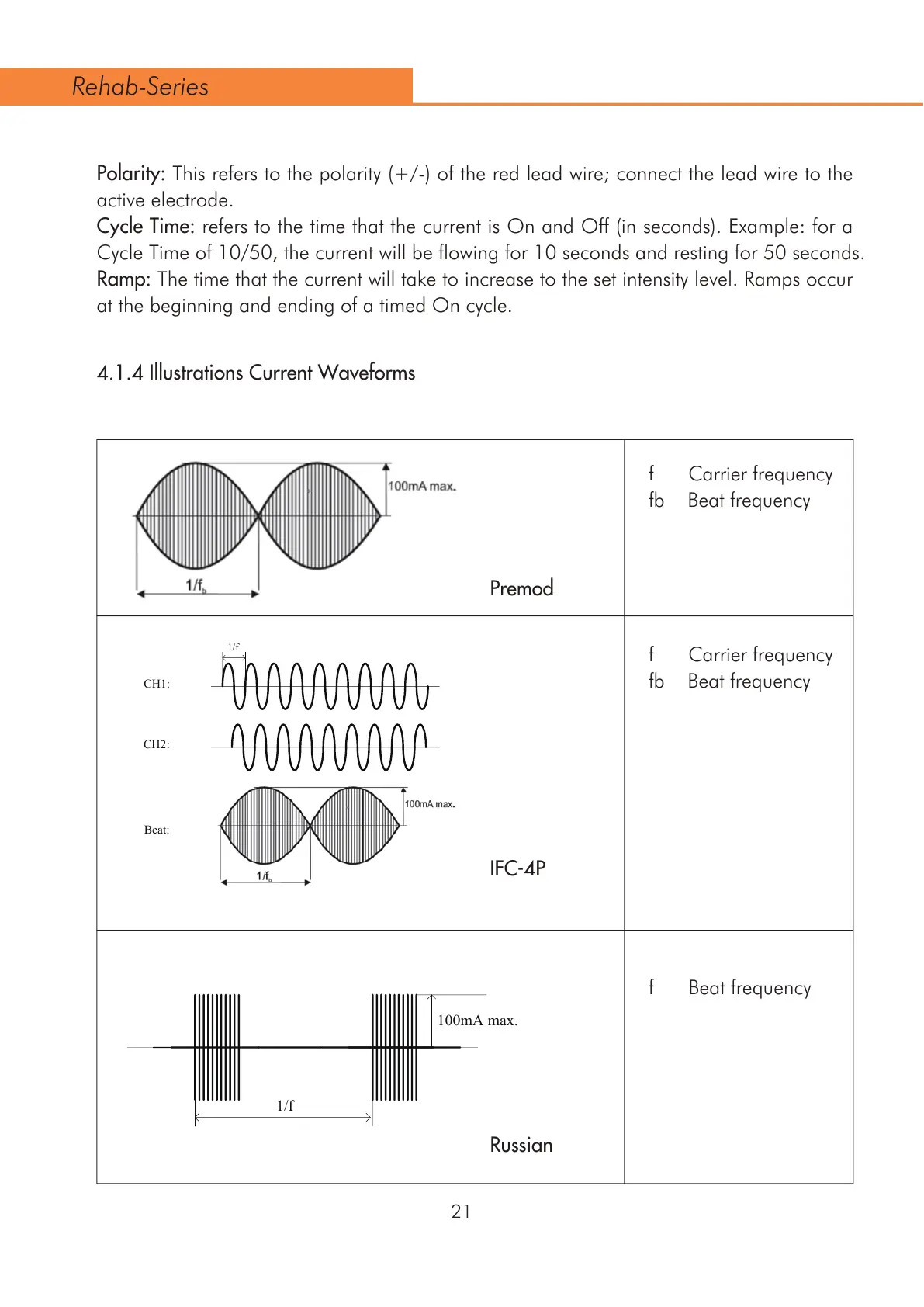

4.1.4 Illustrations Current Waveforms
!
!"#
$%!&
$%'&
()*+&
!
