2.0 FC BUS DEVICES
2.1 Networking Connection Example
7

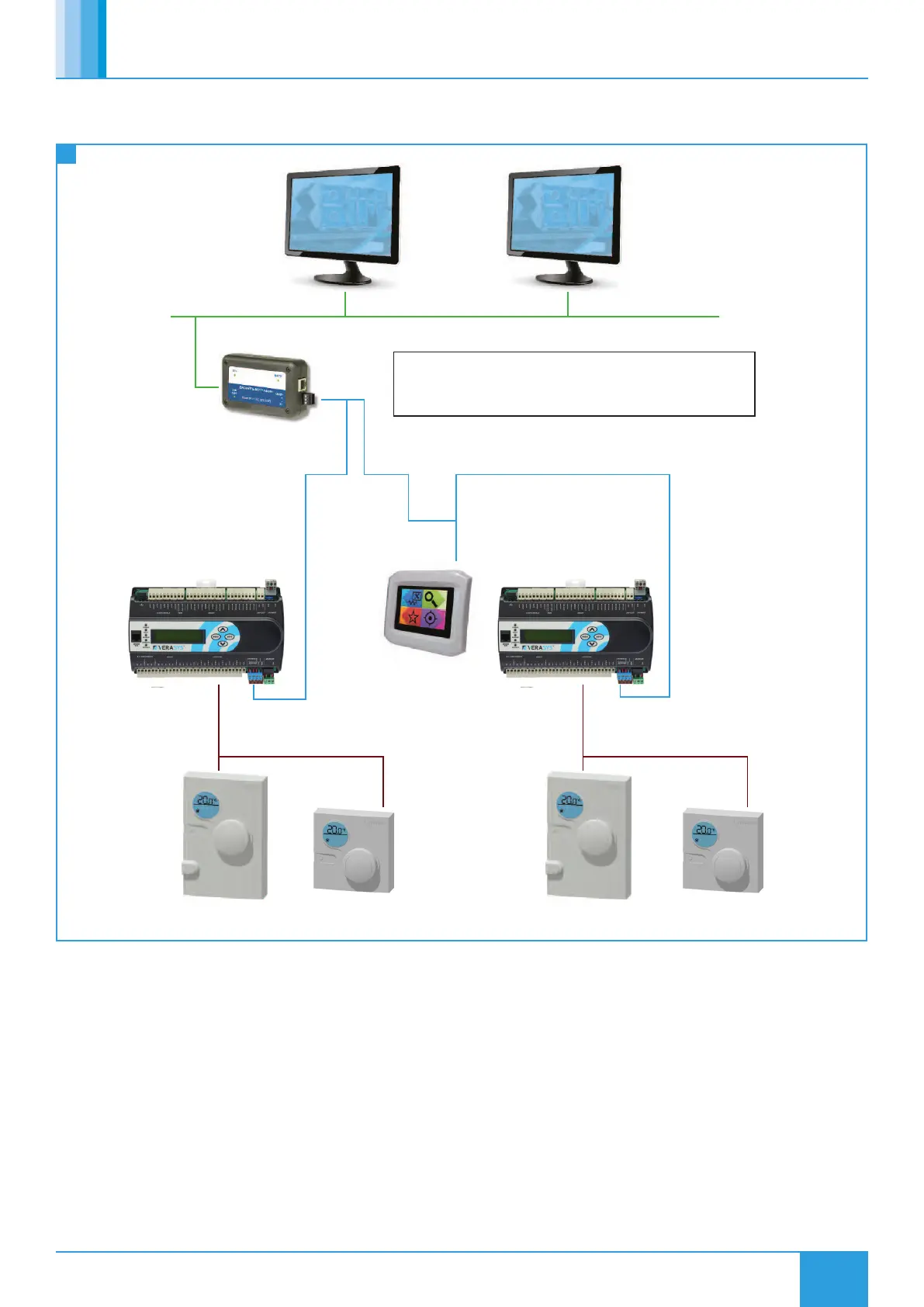

Networking Connection Example
Ethernet IP
MTSP to IP Router
(Sensor Actuator) SA Bus
For best results, use a linear network and switch on the EOL resistors at each end of the FC bus.
(Sensor Actuator) SA Bus
(Field Controller) FC Bus
The FC Bus has a maximum limit of 31 devices
