nuaire.co.uk 029 2085 8400 28. 10. 19. Leaflet Number 671566
Installation and Maintenance
FLATMASTER Low Energy Positive Input Ventilation Unit
2.2.1 Points to consider
•The inlet ducting should be kept as short as possible to avoid condensation
build up on the ducting surface (see fig. 5 and 6).
•Find the shortest, most direct route from outside of the unit and then to
the discharge grille using the least number of bends (these bends increase
the airflow resistance).
•Note the location of any joists, pipes, electrical cables etc.
•Allow adequate access to the front cover to allow filter cleaning.
2.3 Setting up the correct airflow direction
Transformation
piece
Scroll cover
Deflection plate position
under scroll cover
AIRFLOW
PCB cover
Left Hand Discharge
(when viewed from front)
Scroll Direction of rotation
(see “Setting the unit”)

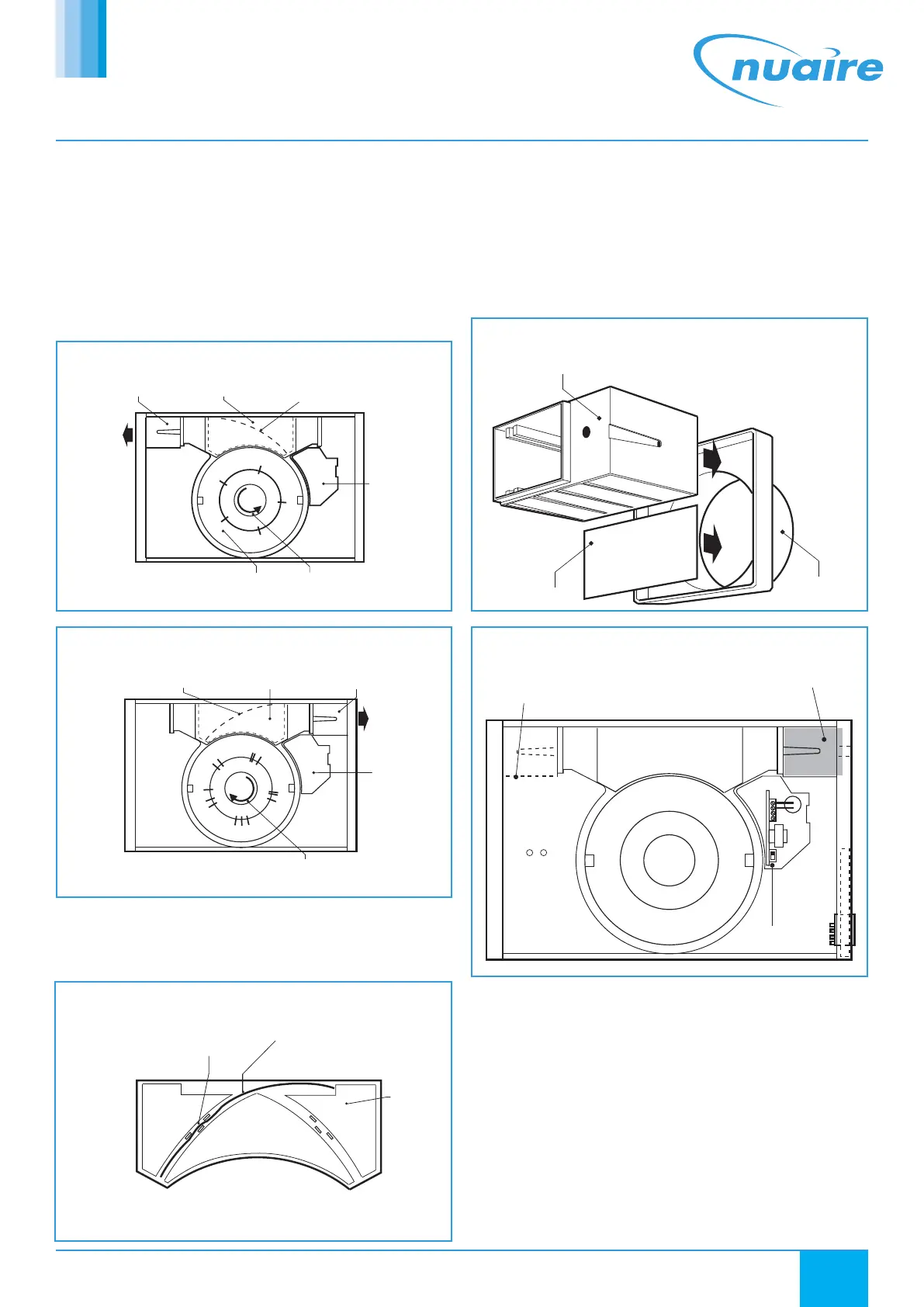

Figure 4. Left hand discharge unit.
Figure 5. Right hand discharge unit.
Deflector
plate
position
under
scroll
cover
Deflector plate
pinched between guide
posts as shown
Deflector plate
shown fitted in
left hand air discharge
Deflector plate shown fitted for left hand
air discharge (viewed from inside).
Scroll
cover
2.3.1 Fitting the deflector plate
Fit deflector plate into scroll cover as shown below. Once fitted the
assembly can be slotted into the scroll and clipped firmly in place.
Figure 6. Fitting deflector plate.
2.3.2 Transformation Piece
This should be on the appropriate scroll outlet. The transformation
piece should be fitted into the chosen outlet spigot insert, prior to
fitting.
Note: If the round spigot is used as an outlet, the 115 x 55mm clear
blanking plate will need to be fitted (as shown). This plate should be
prevented from movement by the use of silicone sealant.
Figure 7. Fitting the transformation piece.
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Transformation piece
Transformation piece
optional position
PCB
Figure 8. Optional transformation piece location.
2.4 Fitting of ducts
To prevent access to live or moving parts ensure ducts are adequately
secured to the spigots by fitting self tapping screws or by other means
requiring a tool. If using duct tape ensure tape cannot be removed
without the use of a tool by securing with tie wraps.
Scroll cover Transformation
piece
Deflection plate position
under scroll cover
AIRFLOW
Right Hand Discharge
(when viewed from front)
PCB cover
Direction of rotation
(see “Setting the unit”)
Transformation
piece
Blanking plate
Outlet
Spigot
