5
nuaire.co.uk 029 2085 8400 28. 10. 19. Leaflet Number 671566
Installation and Maintenance
FLATMASTER Low Energy Positive Input Ventilation Unit
4.3 Smoke alarm automatic shut down
If the unit is required to switch off in the event of smoke detection,
alarms are available with separate relay bases from companies such as:
Dicon Safety products – www.diconsafety.co.uk
Aico Ltd – www.aico.co.uk

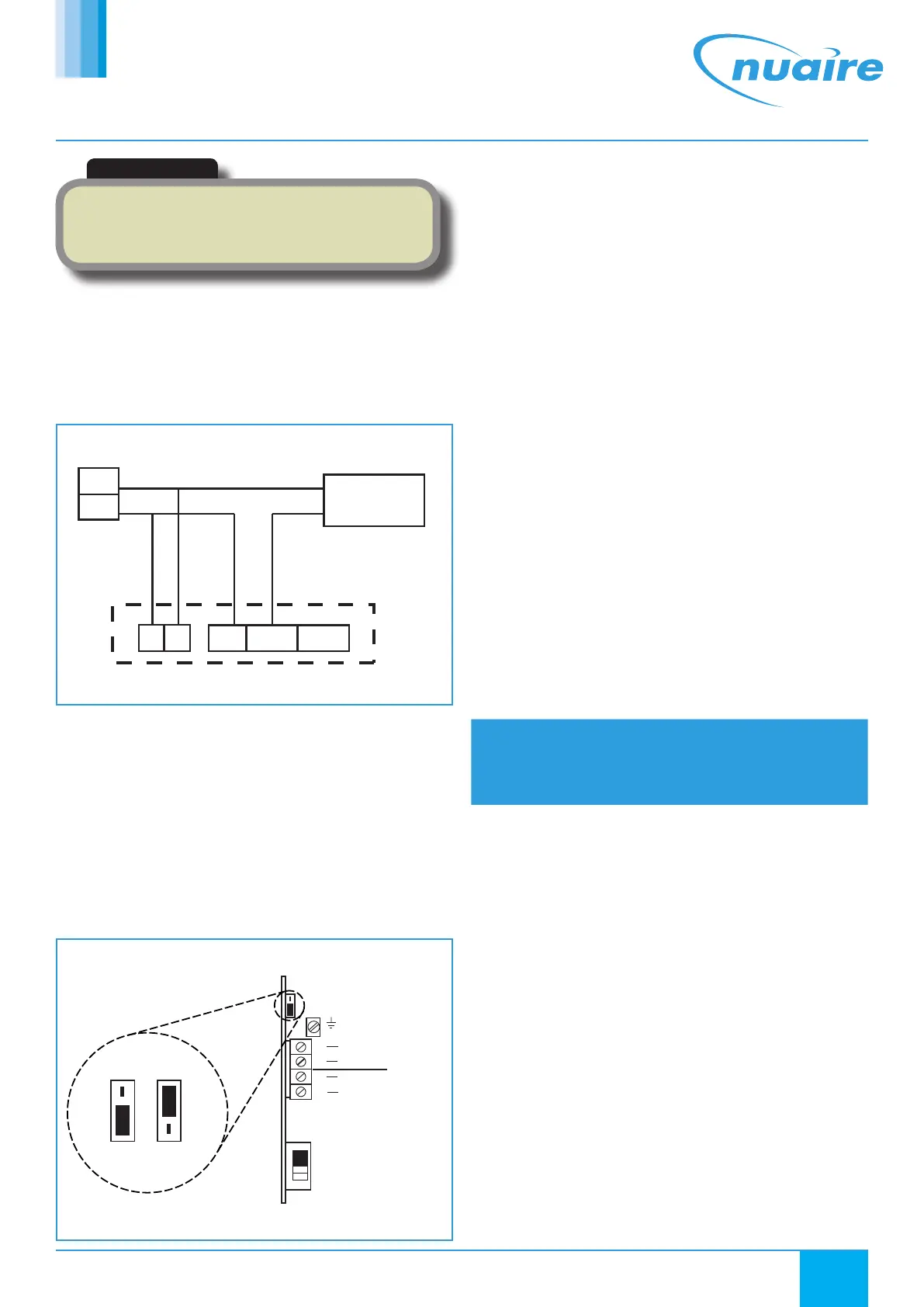

Figure 13. Typical wiring (refer to manufactures specific instructions).
5.0 SETTING THE UNIT SPEED / ROTATION
The speed selector is located on the PCB (see figure 14). The unit has a
choice of three speeds to suit the size of the dwelling and the moisture
being generated. The unit is factory set at No. 3 - High Speed. We
recommend that the unit is operated at this speed and the setting
reduced if and when necessary in the future.
Replace PCB cover and test the unit. Check rotation of fan with
diagrams under airflow direction. If direction is incorrect, isolate
the unit, remove PCB cover and alter the fan rotation jumper block
(mounted on the PCB). Replace PCB cover and re-check direction of fan.
Replace filter and front cover.
Fan Rotation Jumper Block
Earth post on rear panel
SupplyL
N Supply
L Do not use
N
Do not use
3
2 Speed selector
1
Fan Rotation Jumper Block
Left Hand
Discharge
Right Hand
Discharge
Figure 14. PCB
(viewed end on).
6.0 MAINTENANCE
The maintenance requirements for this product can be found in the
“Product Safety – Essential Operational Checks” section, which is
located in this document and includes the replacement of the filter
(Our part number FLAT-FILTERKIT) every 12 months; this interval
may need to be shortened, if the unit is operating under adverse
environmental conditions.
7.0 WARRANTY
The unit has a 5 year warranty starting from the day of delivery and
includes parts and labour for the first year. The remaining 4 years covers
parts only. This warranty is conditional on the following:-
•That the unit is installed strictly in accordance with this guide.
•That the unit filters are removed and replaced at the
recommended intervals.
This warranty is void if the equipment is modified without
authorisation, is incorrectly applied, misused, disassembled, or not
installed, commissioned and maintained in accordance with the details
contained in this manual and general good practice.
The product warranty applies to the UK mainland and in accordance
with Clause 14 of our Conditions of Sale. Customers purchasing from
outside of the UK should contact Nuaire International Sales office for
further details.
8.0 AFTER SALES
For technical assistance or further product information, including spare
parts and replacement components, please contact the After Sales
Department.
Telephone 02920 858 400
aftersales@nuaire.co.uk
IMPORTANT
For good EMC engineering practice, any sensor cables or switched live
cables should not be placed within 50mm of other cables or on the
same metal cable tray as other cables.
N
Mains power Smoke Nc contacts
L
Flatmaster
PCB
L N NC C
230V
NO
Supply
230V
