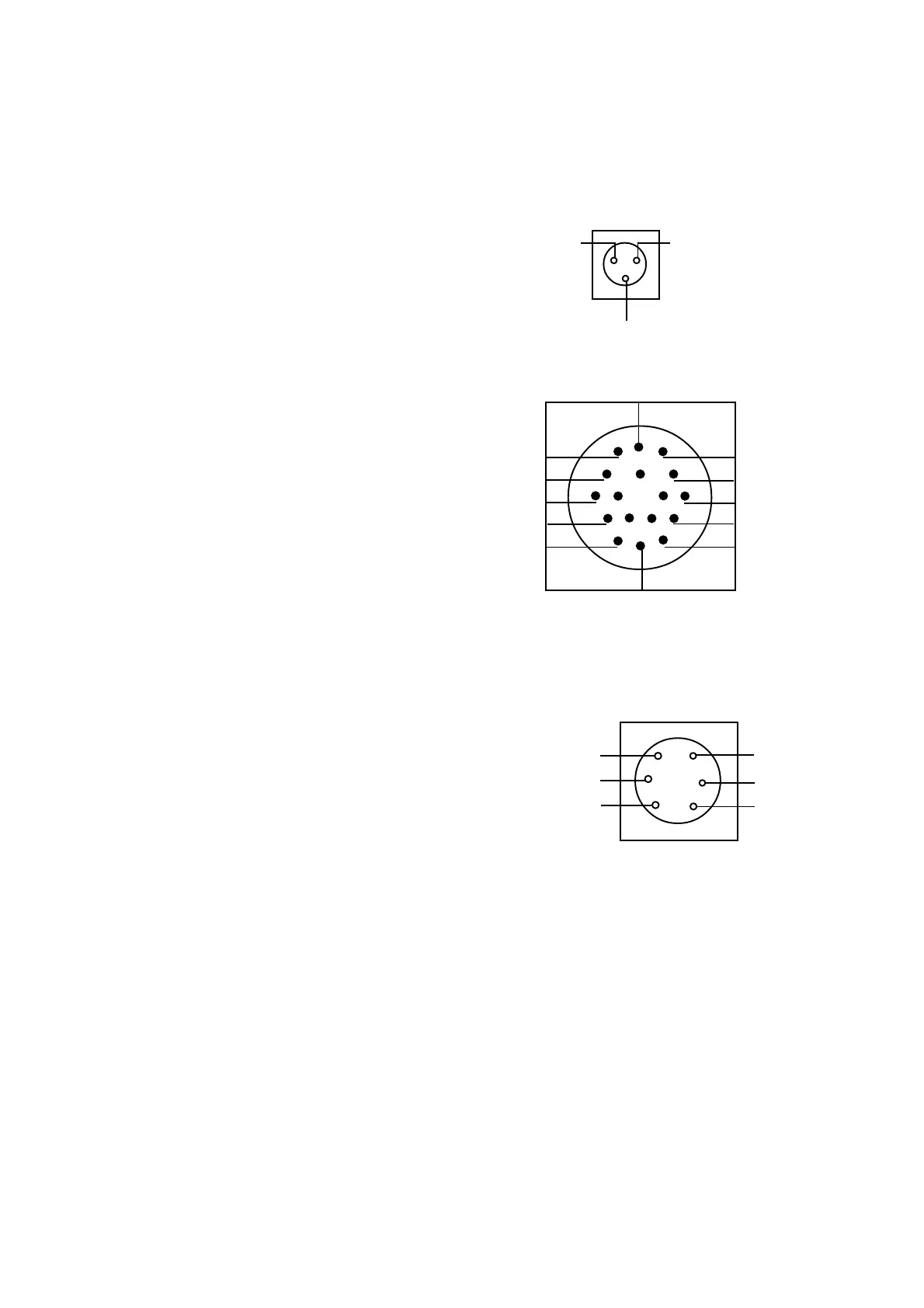

CHAPTER - VI
SIDE PANEL CONNECTOR DETAILS
a. 3 pin MS Male connector (Mains)
Pin Number Signal
1 Live
2 Neutral
3 Chasis/Earth/GND
b. 17 pin MS Male connector (EXT I/O)
Pin Number Signal
A,B,C,D,E,F No Connection
G COM Changeover II
H N/C Changeover II
J N/O Changeover II
K COM Changeover I
L N/O Changeover I
M N/C Changeover I
N,R,P No Connection
c. 6 pin MS connector Male connector (To Detector Probe)
Pin Number Signal
A GND
B +5V
C RS-485 (“A”) (For connecting to detector side
D RS-485 (“B”) RS485 Transceiver)
E Fraction of HV
F NC
3 pin MS
(panel mount connector)
1
2
3
6 pin MS (panel mount connector)
A
E
D
C
B
F
