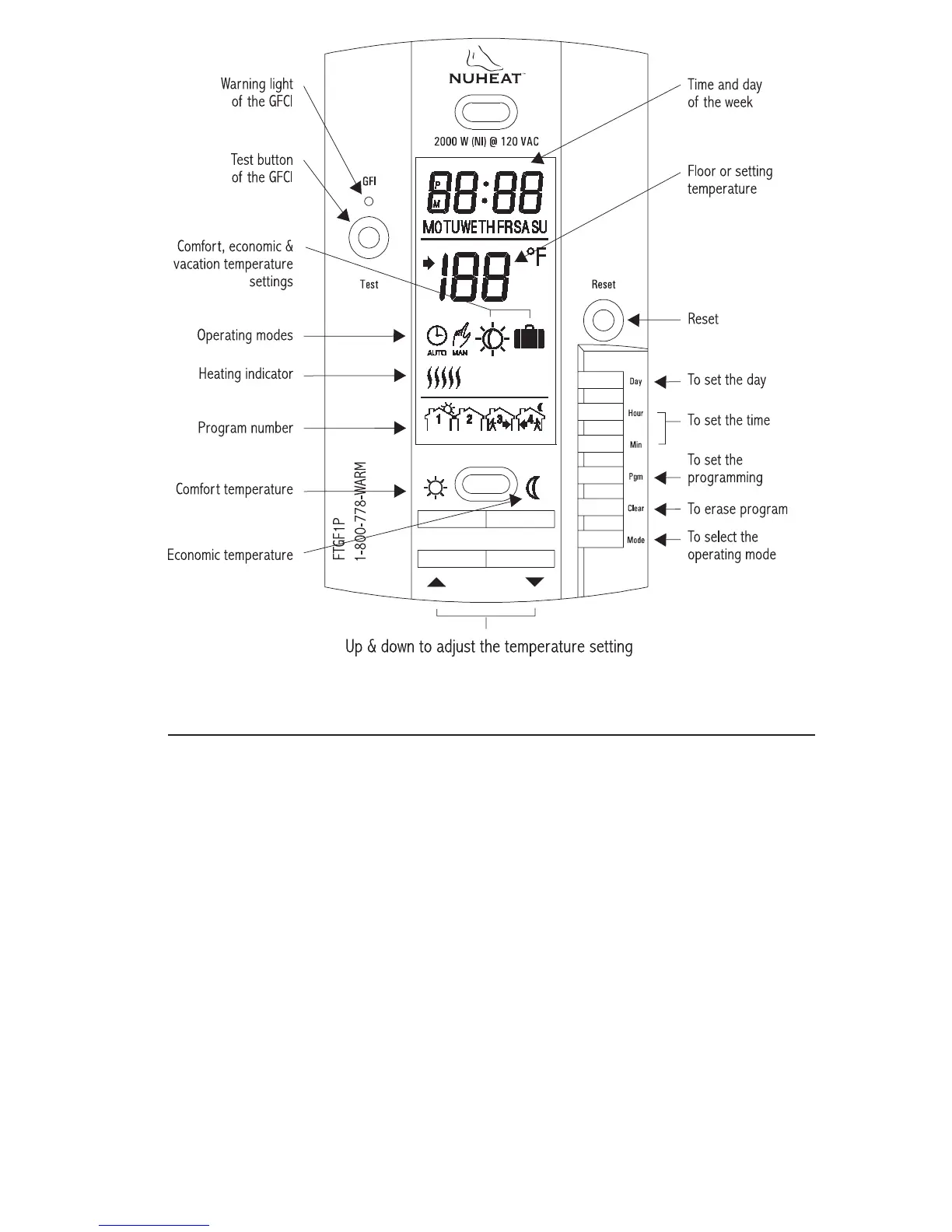

INSTALLA
TION
This thermostat is designed to control electric floor-warming systems. The
resistive load must not exceed 2000 watts (NI) @ 120 VAC (16.7 A). The
thermostat is equipped with a ground fault circuit interrupter (GFCI) and therefore
the isolation of the line and load are required for operation. Do not cap all the
white wires together. During a ground fault, only the current in the black wire
(line) of the load will be cut-off. Connect thermostat as shown on diagram.
A certified electrician must install the thermostat.
PARTS INCLUDED
- One (1) FTGF1P (120 VAC) thermostat
- Two (2) 6-32 screws
- Four (4) solderless connectors (for copper wire)
- One (1) Temperature sensor with a 15 foot extension
TURN OFF POWER OF THE HEATING SYSTEM A
T THE MAIN POWER
PANEL TO AVOID ELECTRICAL SHOCK. Keep air vents of the thermostat
clean and free from obstructions.
720-111009 2/8
