NUHN MAGNUM User Manual

MAGNUM
Page 6

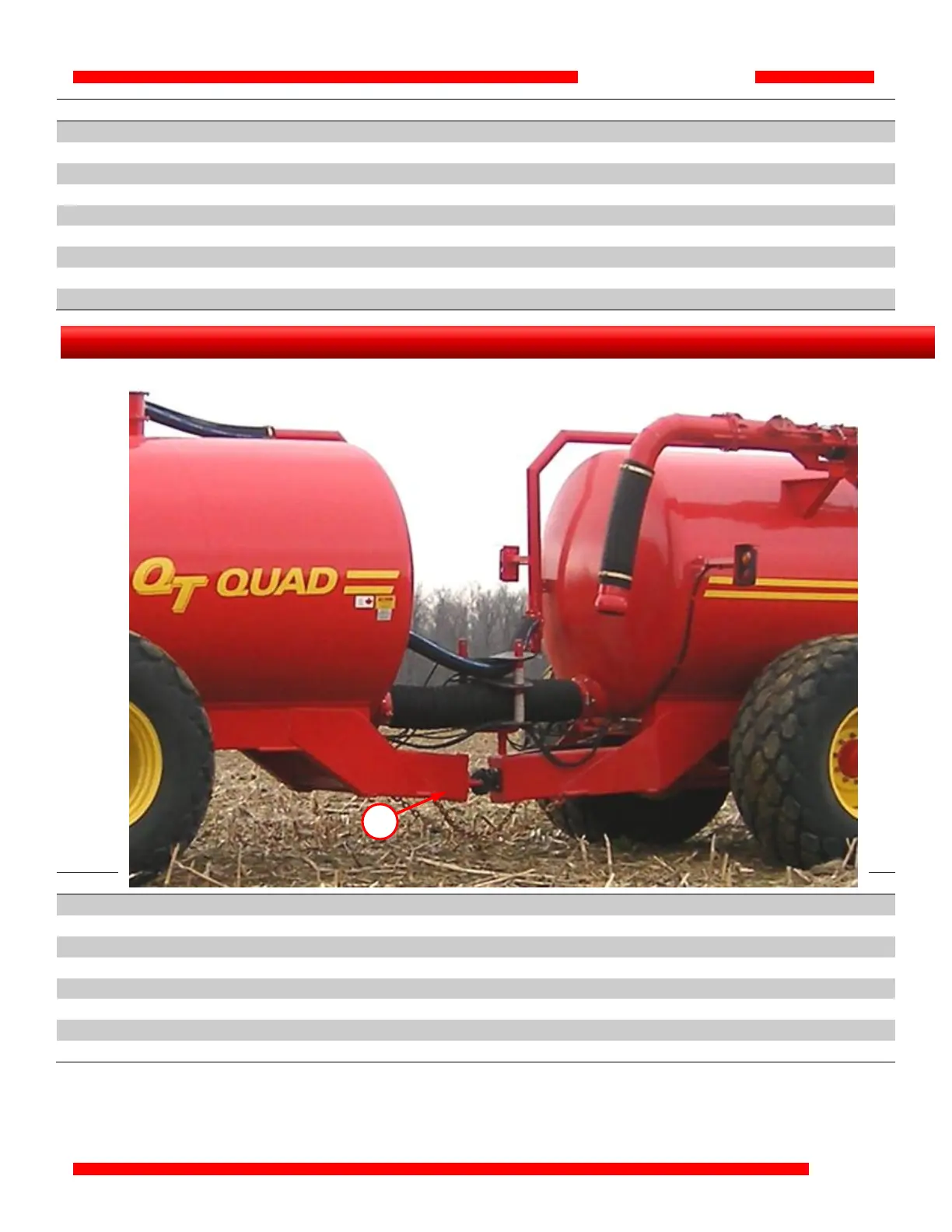

ITEM NO.
PART NO.
DESCRIPTION
17
102-203x0.17
Hose - Vacuum - White PVC - 2" x 2”
18
102-203X0.58
Hose - Vacuum - White PVC - 2" x 7”
19
102-203X1.08
Hose - Vacuum - White PVC - 2" x 13”
20
102-238
Bolt - Hex Head - 0.875” x 3.5 - GR8
21
102-308
Hose - 12" Quad Coupling (Orange Stripe)
22
102-334
Hose Clamp - 2.5" - Mikalor - 68-73
23
102-610
Chain - 0.5" Connector Link for Safety Chain
24
103-638
Hose Clamp - 6" - 162-174 double bolt
25
103-798
Quad Train - Hose Saddle - Rubber - 12" x 24" x 0.625"
ITEM NO.
PART NO.
DESCRIPTION
102-308
Hose - 12" Quad Coupling (Orange Stripe)
101-922
Hose Kevlar Cover - 12" Quad Coupling (26" x 70")
103-798
Quad Train - Hose Saddle - Rubber - 12" x 24" x 0.625"
100-374
Chain & Links - 0.5" x 48" (Vacuum Quad Safety Chain)
16
101-924
Chain - 0.5" x 48" G70 (Chain only)
102-610
Chain - 0.5" Connector Link
101-920
Quad Train - Pintle Hitch Hook
101-921
Quad Train - Pintle Hitch Eye - 0.875 hole
For generic Top Load parts used on the Quad Vac, see Magnum Replacement Parts
For generic Vacuum parts used on the Quad Vac, see Vacuum Replacement Parts.
VACUUM
16
