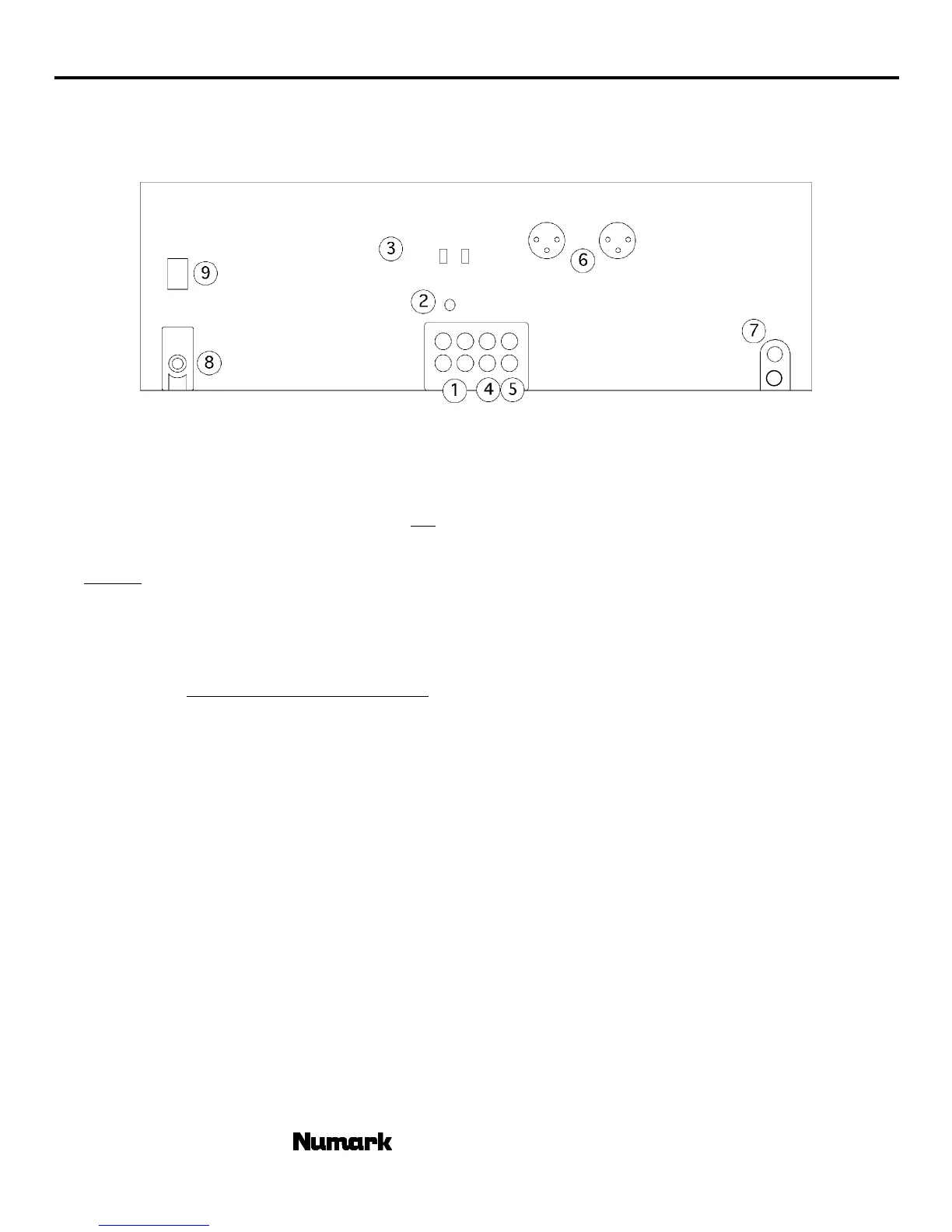

REAR PANEL FEATURES
1. Channels Inputs - Unbalanced RCA jacks for connecting external sources. The Phono/Line Input is selected
with the toggle switch on the front panel. You can connect stereo audio from Turntables, HiFi VCRs,
cassette and reel-to-reel tape decks, DAT machines, CD players, laser discs, tuners, even synthesizers or
other mixing consoles.
NOTE: Plug mono audio sources into both Left and Right inputs using a "Y" cable
connector.
2. GND - Grounding lug for turntable connection. Always use this connection when using turntables. (your
turntable cable should have a grounding wire)
3. Line/Phono Input switch - Use this to allow either line level or phono level equipment to be plugged into
your channel inputs. When Phono input is selected, your signal is fed directly to the high-quality RIAA phono
pre-amplifiers. Use this position only for turntables. Line level sources will overload the sensitive phono pre-
amps and will sound very bad, so always be sure to toggle the line/phono switch over to line before
connection of line sources.
4. Third Line Input – Plug in a third line level device such as tape deck or additional CD player here.
5. Stereo Main Outputs - Unbalanced RCA connectors controlled by the Master fader.
6. Balanced Main Outputs - Low-impedance XLR type connectors controlled by the Master fader.
7. Mic Input – Plug your 1/4” Microphone plug in here.
8. Power Connector - Plug in power adapter here and check the voltage level to match your country’s standard.
9. Power Switch – Turn on unit here.
