Numark NS4 FX Service Manual

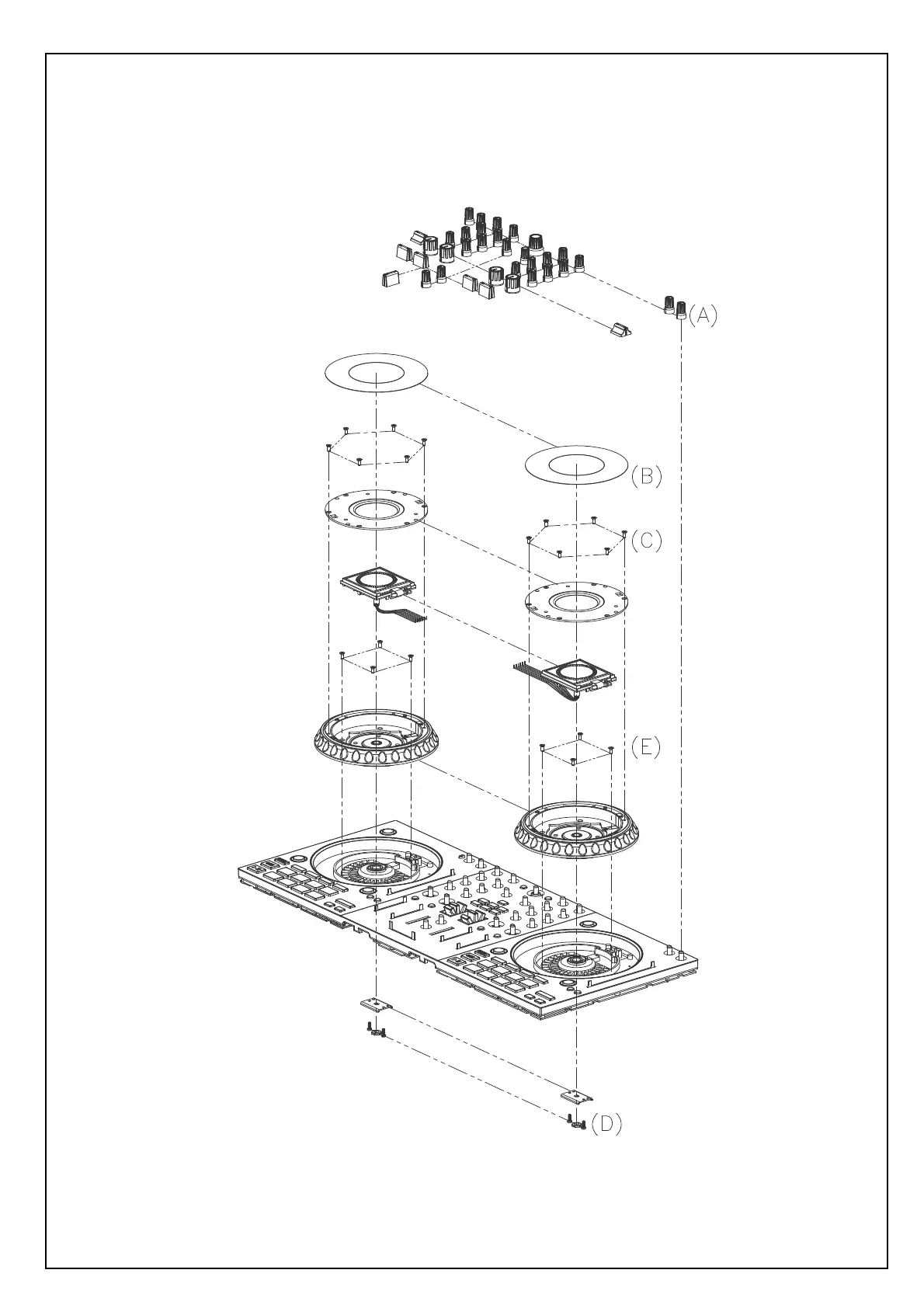

2. DISASSEMBLE THE WHEEL BASE ASS'Y AND KNOB AND VR KNOB.
(A)REMOVE 29 PCS KNOB AND 7 PCS VR KNOB FROM THE TOP PANEL.
(B)REMOVE 2 PC DISPLAY PLATE FROM THE WHEEL PLATE.
(C)REMOVE 12 PCS SCREW FROM THE WHEEL FIXED HOLDER.
(D)REMOVE 4 PCS SCREW AND 2 PCS WASHER FROM THE TOP PANEL.
(E)REMOVE 8 PCS SCREW FROM THE WHEEL BASE ASS'Y.
(Fig2)
