Numark NS4 FX

3. DISASSEMBLE THE PCB ASS'Y OF THE TOP PANEL.
(A)REMOVE 4 PCS SCREW FROM THE TOGGLE SWITCH PCB ASS’Y.
(B)REMOVE 2 PCS SCREW FROM THE TOP PANEL.
(C)REMOVE 3 PCS SCREW FROM THE LEFT FUNCTION PCB ASS’Y.
(D)REMOVE 3 PCS SCREW FROM THE LEFT SENSOR PCB ASS’Y.
(E)REMOVE 3 PCS SCREW FROM THE RIGHT SENSOR PCB ASS’Y.
(F)REMOVE 2 PCS SCREW FROM THE GROUND PLATE.
(G)REMOVE 18 PCS SCREW FROM THE MAIN PCB ASS’Y.
(H)REMOVE 10 PCS SCREW FROM THE FUNCTION PCB ASS’Y.

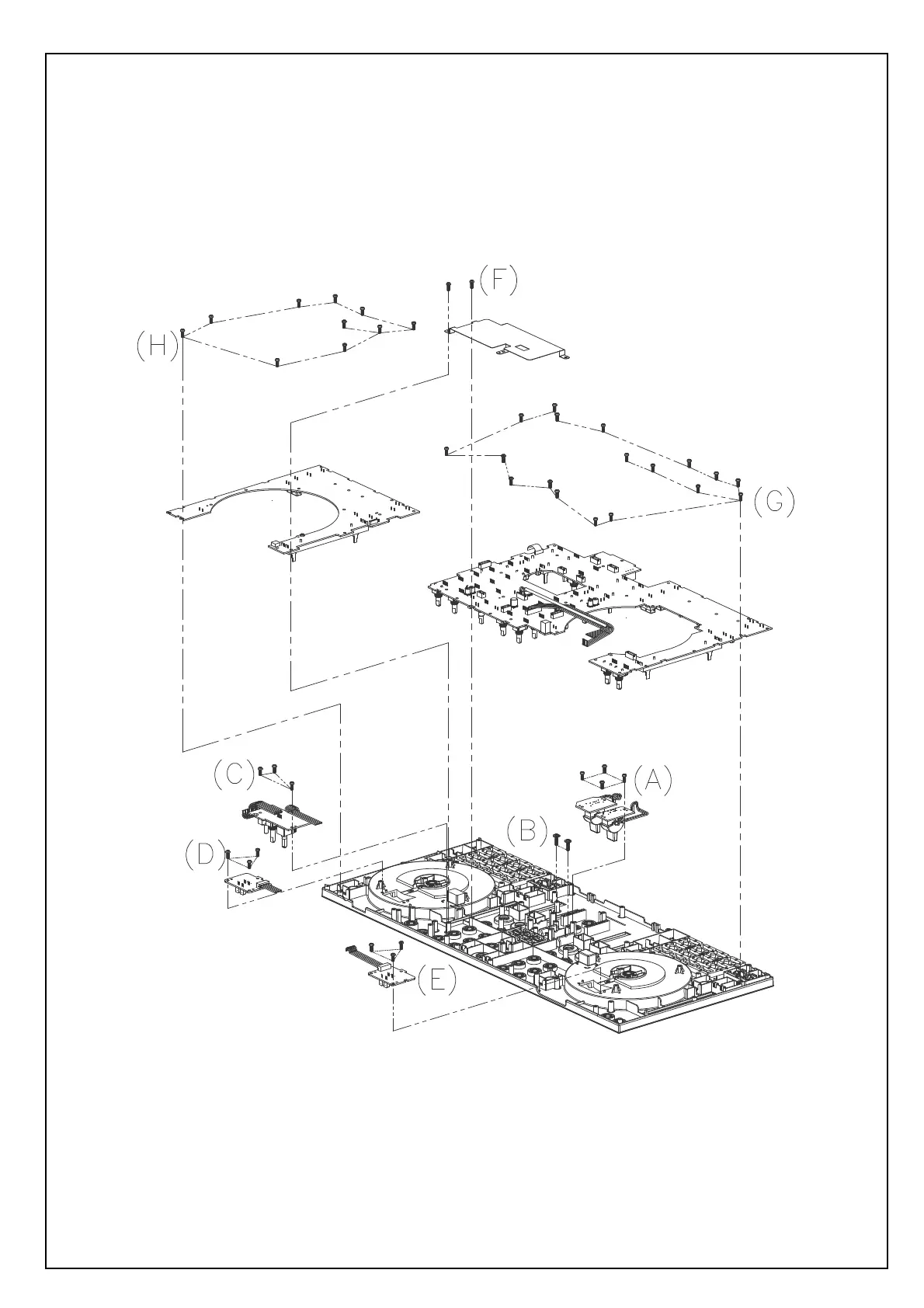

(Fig3)
