Numark NS4 FX Service Manual

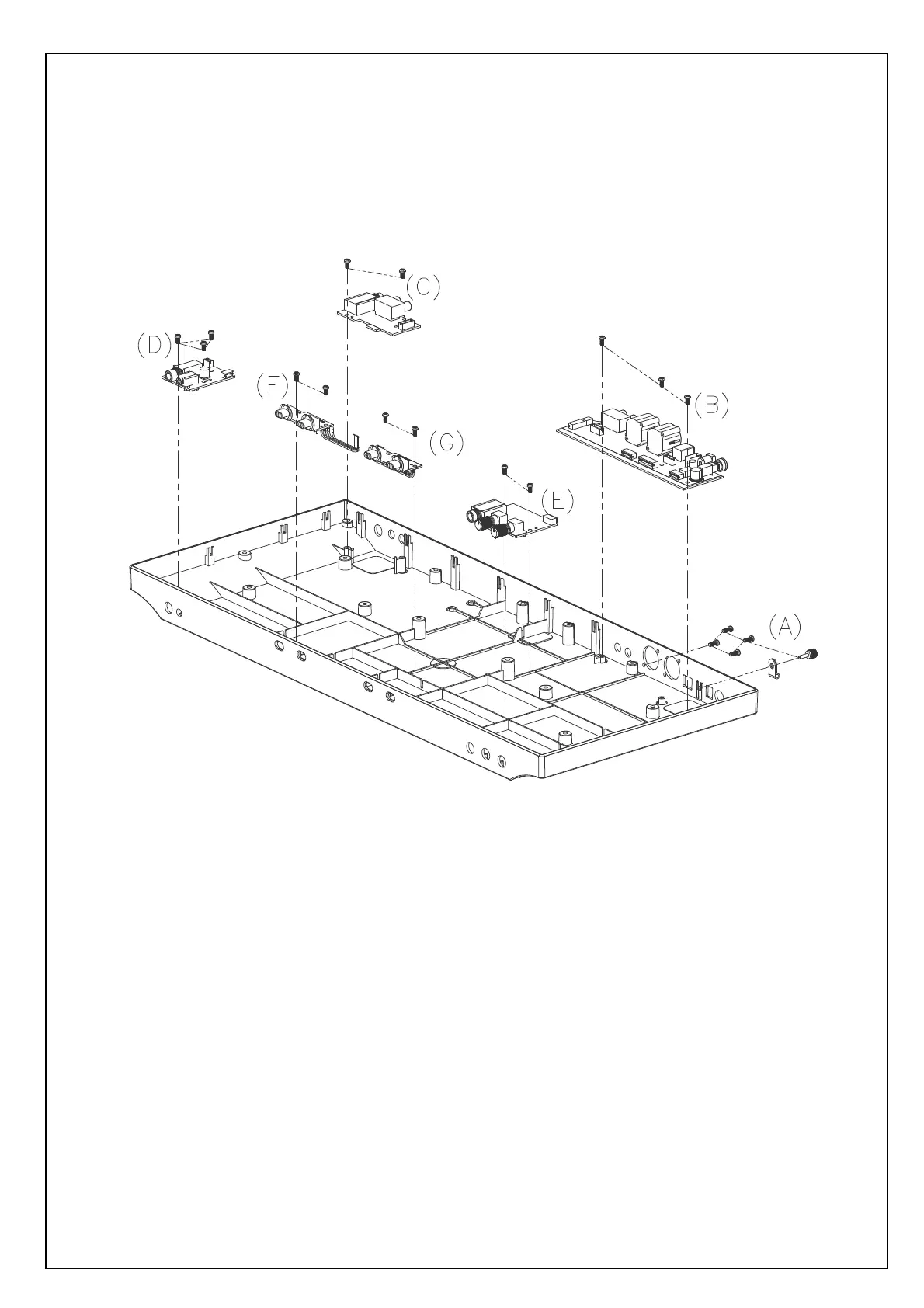

4. DISASSEMBLE THE PCB ASS'Y OF THE BOTTOM PANEL.
(A)REMOVE 4 PCS AND 1 PC HOLDER SCREW AND 1 PC CABLE CLAMP FROM THE BOTTOM PANEL.
(B)REMOVE 3 PCS SCREW FROM THE USB PCB ASS’Y.
(C)REMOVE 2 PCS SCREW FROM THE INPUT PCB ASS’Y.
(D)REMOVE 3 PCS SCREW FROM THE HP PCB ASS’Y.
(E)REMOVE 2 PCS SCREW FROM THE MIC PCB ASS’Y.
(F)REMOVE 2 PCS SCREW FROM THE LEFT ASSIBN PCB.
(G)REMOVE 2 PCS SCREW FROM THE RIGHT ASSIBN PCB.
(Fig3)
