Numark NV User Guide

13

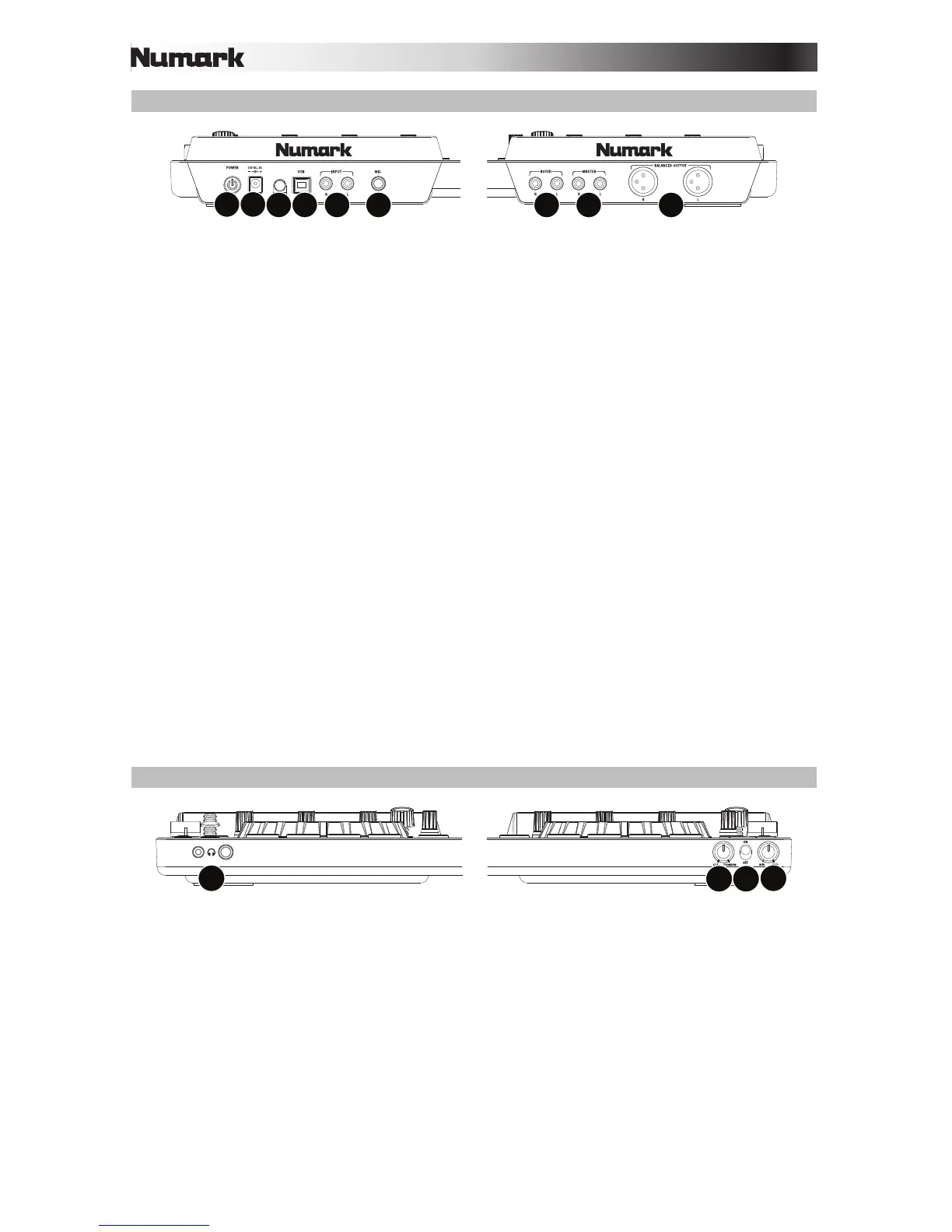

Rear Panel
1234
56789
1. Power In: Use the included power adapter (12 V DC, 2 A, center-positive) to connect NV
to a power outlet. While the power is switched off, plug the cable into NV first, then plug
the cable into a power outlet.
2. Power Switch: Turns NV on and off. Turn on NV after all input devices have been
connected and before you turn on amplifiers. Turn off amplifiers before you turn off NV.
3. Cable Restraint: You can secure cables to this restraint to help avoid disconnecting
them accidentally.
4. USB: This USB connection sends and receives audio and control information from a
connected computer.
5. Master Output (XLR): Connect this low-impedance XLR output to a PA system or
powered monitors. The level of this output is controlled with the Master knob on the top
panel.
6. Master Output (RCA): Use standard RCA cables to connect this output to a speaker or
amplifier system. The level of this output is controlled by the Master knob on the top
panel.
7. Booth Output (RCA): Use standard RCA cables to connect this output to a booth
monitoring system. The level of this output is controlled by the Booth knob on the top
panel.
8. Line Inputs (RCA): Connect line-level devices, such as CD players, samplers or audio
interfaces, to these inputs.
9. Mic Input (1/4"): Connect a 1/4" microphone to this input. This input's audio signal is
routed directly to the Program Mix.
Front Panel
1234
1. Headphones (1/4" or 1/8"): Connect your 1/4" or 1/8" headphones to this output for
cueing and mix monitoring.
2. Headphone Volume: Adjusts the volume level of the headphone output.
3. Split Cue: When this switch is in the On position, the headphone audio will be "split"
such that all channels sent to Cue are mixed to mono and applied to the left headphone
channel and the Program mix is mixed to mono and applied to the right channel. When
the switch is in the Off position, Cue and Program audio will be "blended" together.
4. Cue Blend: Turn to mix between Cue and Program in the Headphone channel. When all
the way to the left, only channels routed to Cue will be heard. When all the way to the
right, only the Program mix will be heard.

Numark NV Specifications

General

Platter size	5 \
Product color	Black
Platter backlight	Yes
Built-in optical drive	-
Number of scratcher platters	2
USB version	2.0
Apple docking compatibility	Not supported
Power supply type	AC
Cables included	AC, USB
