Numatic HFS 1015 User Manual

11
T 01460 68600
MACHINE/
MODELS NO.s
HFS 1015 HFS 1023 HFM 1015 HFM 1023
HFM
1515
FMH
1515
HFM
1523
HFM
1530
HFM
1545
HFT 1530
Motor 205201 205201 205201 205201 205202 205202 205202 205202 205204 205205
Gearbox 230206 230210 230206 230210 230206 230206 230210 230209 230210 230206
Start Cap 205088 205088 205088 205088 205088 205088 205088 205088 205088 205088
Run Cap 208651 208651 208651 208651 220897 220897 220897 220897 220897 220897
Voltage
Relay
208582 208582 208582 208582 902715 902715 902715 902715 902715 206824
Handle Relay 206575 206575 206575 206575 206575 206575 206575 206575 206575 206575
Replacement parts

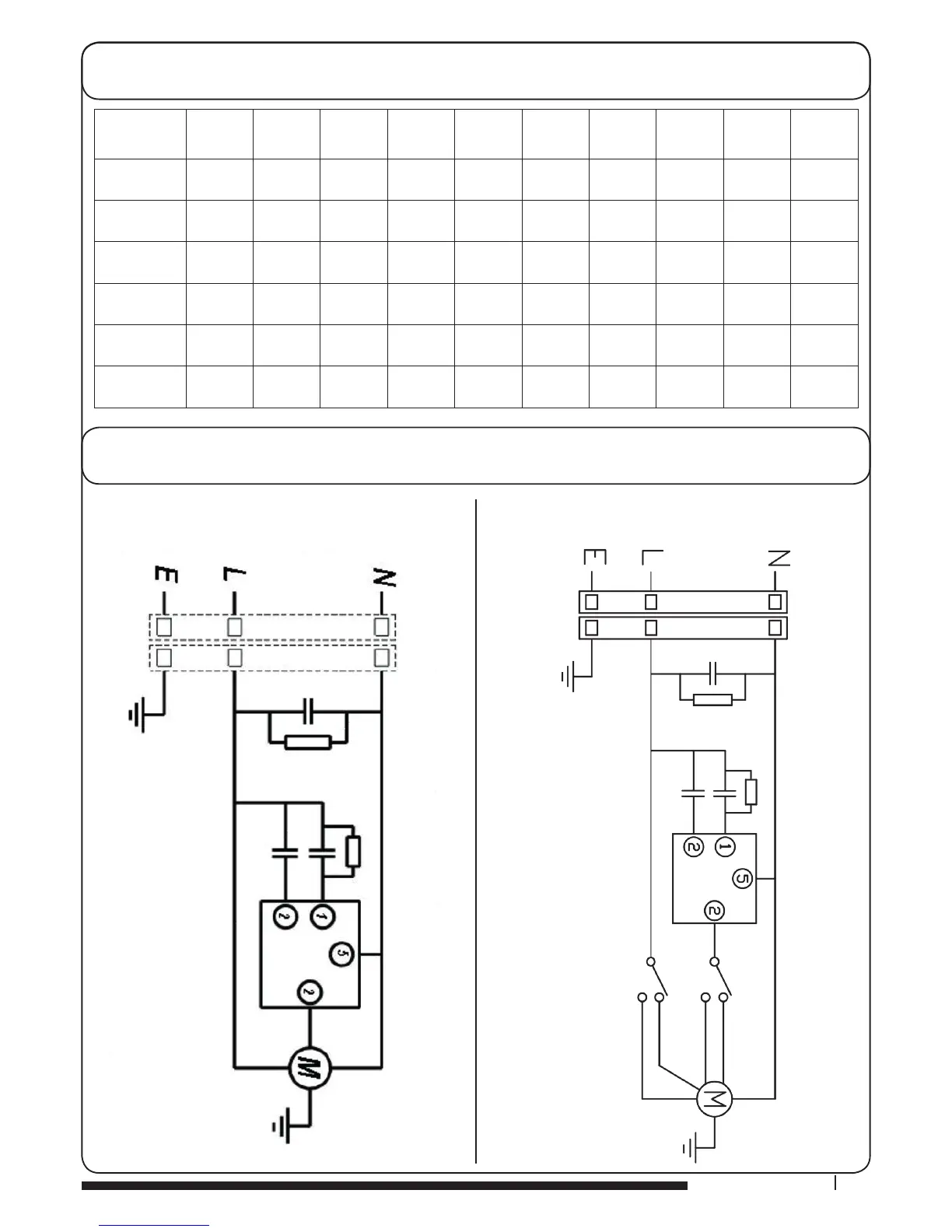

Schematic Diagram
HFS / HFM / FMH 1000W / 1500W - DRW-11701 (A09) HFT 1530 - DRW-12031 (A05)
