Numatics DPS280 Series User Manual

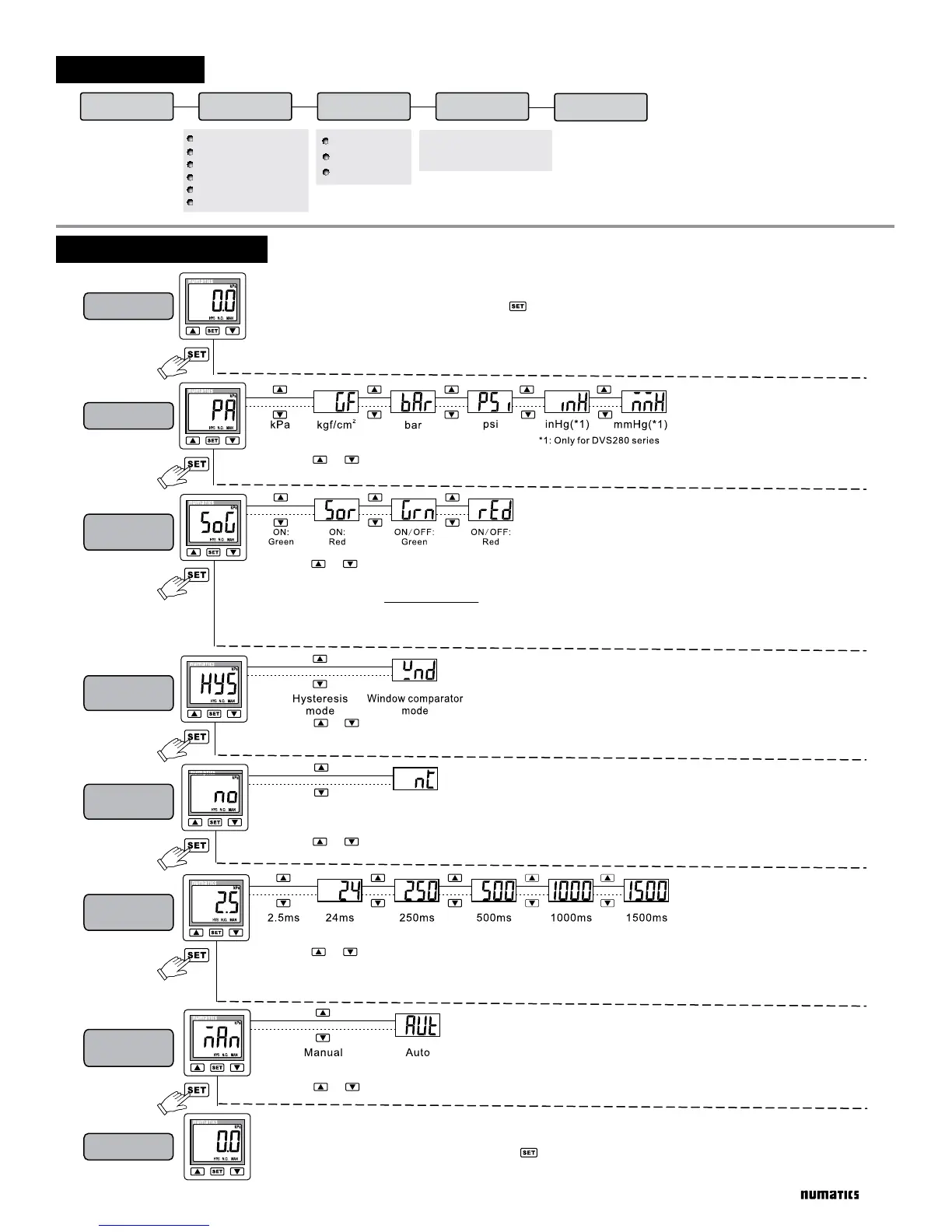

SETTING STEPS
INITIAL SETTING MODE
Sensing Mode
Sensing Mode
Sensing Mode
Unit Setting
Units
Display Color
Operation Mode
Output Type
Response Time
Manual / Auto Setting
Initial Setting Pressure Setting
Display Color
Setting
Output Type
Setting
Response
Time Setting
Manual / Auto
Setting
Operation
Mode Setting
Zero Calibration Sensing Mode
P_1 or n_1
P_2 or n_2
H
Calibrate switch to zero under
atmospheric conditions
Use the or button to select manual / auto setting.
To re-enter sensing mode momentarily press button.
Use the or button to set response time.
Sets number of milliseconds between the switch’s reading of the applied pressure
value and how quickly the output responds to that change. Prevents output chattering.
See Pressure Setting Modes
for more information
SoG = State “on” Green SoR = State “on” Red
Eg: If SoG is selected. When the Output State is “ON” the large display will be green. If the Output type selected below is “Normally Open”
(off) the large display is Red until set point is achieved. At that point the output closes (goes on) and the display will go Green. If the Output
type selected below is “Normally Closed” (on) the large display is Green until set point is achieved. At that point the output opens (goes off)
and the display will go Red.
Use the or button to set output type.
Normally Open
type
Normally Closed
type
Use the or button to set operating mode.
Use the or button to set display color.
Use the or button to set desired pressure unit.
To enter initial setting mode press and hold button for 3 seconds.
DPS280 / DVS280 Series
4
