1) Main switch.
- When pressed this switch powers the machine
(light 2 on) and starts boiler heating (light 7 on).
- Pressing this switch again turns the machine off
(light 2 off), and stops boiler heating (light 7 off).
2) Unit ON light.
- When this light is ON, the machine is powered and
operative.
- When this light is OFF the machine is off.
3) Power supply plug.
4) Coffee dispensing button.
- Press this button and the unit starts dispensing
coffee (and continues for as long as it remains
pressed) (light 5 on).
- Press the button again and the unit stops dispen-
sing coffee (light 5 off).
5) Coffee dispensing light.
- This light remains on while coffee is being dispensed.
6) Reservoir empty light.
- When this light is on, the water reservoir (12)
needs to be refilled.
7) Heating element light.
- ON: the heating element is functioning.
- OFF: the boiler has reached operating temperatu-
re or the machine is off.
8) Steam knob.
- Turn the knob and adjust the jet of steam.
9) Delivery assembly attachment.
Filter holder housing (b1).
10) Moveable steam nozzle with insulated
outlet (10a).
Delivers steam to heat liquids in containers.
11) Water reservoir hatch.
12) Water reservoir.
The reservoir can hold 2.3 liters of water.
Although the unit can operate with any type of water, the
lower the water hardness the onger the unit will last.
13) Cup warming grill.
14) Cup warming shelf.
15) Cup support grill.
16) Water drain tank.

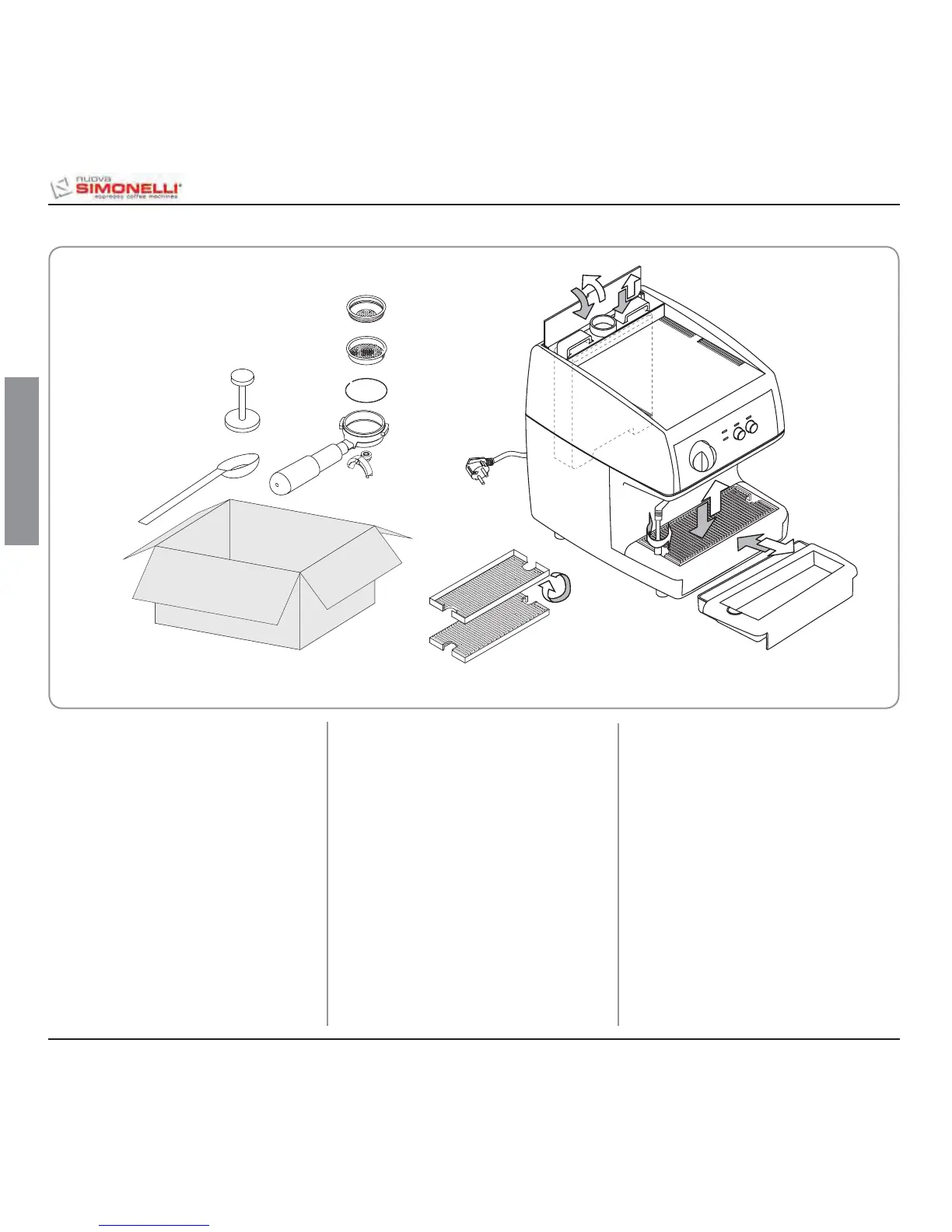

b0) Coffee nozzle.
b1) Filter holder.
b2) Spring.
b3) Two-cup filter.
b4) Single-cup filter.
b5) Coffee press.
b6) Coffee measure.
DESCRIPTION OF CONTROL PANEL AND OPERATIONS
