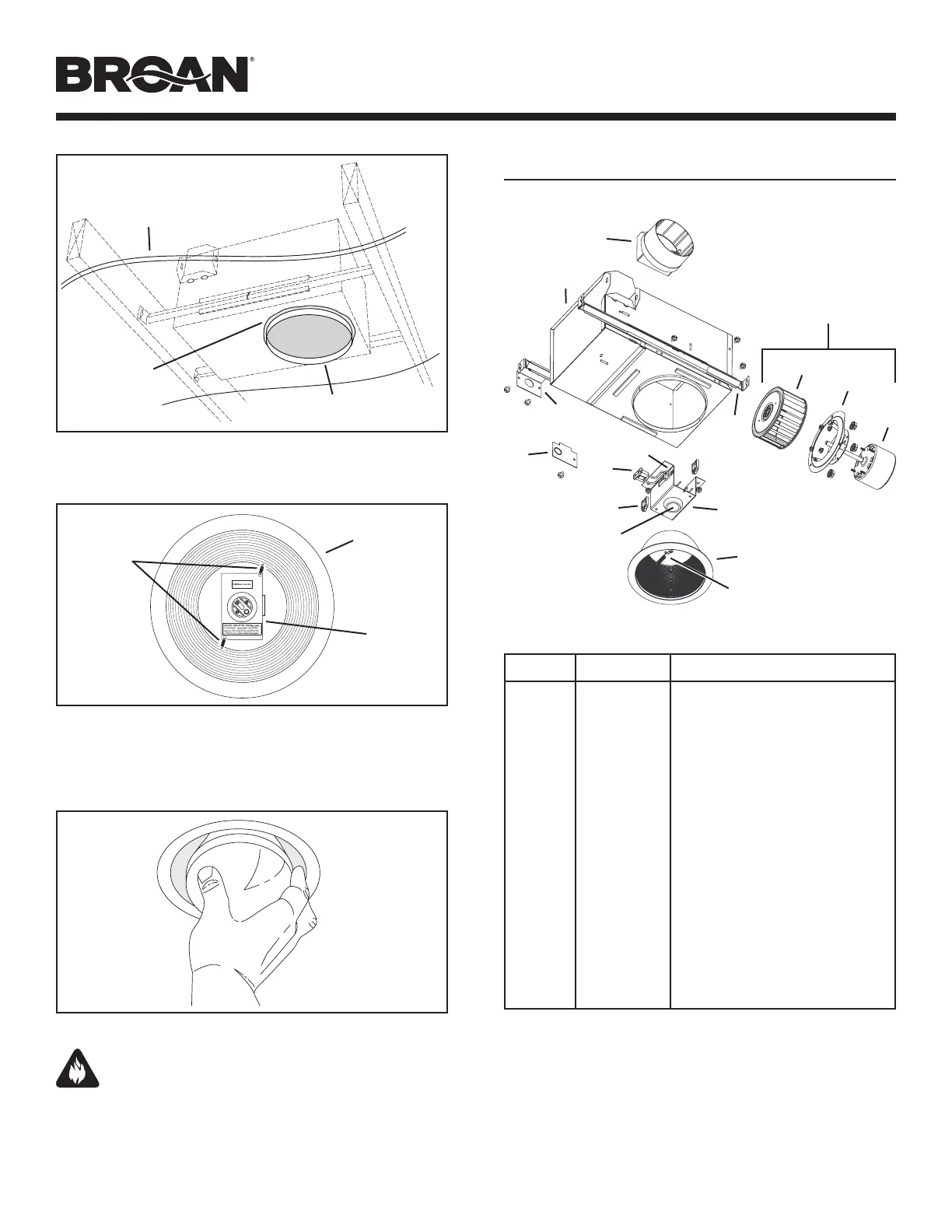

MODEL 744
SERVICE PARTS
KEY NO. PART NO. DESCRIPTION
1 97014185 Damper / Duct Connector
2 97016382 Housing Assembly
3 98003036 Mounting Bracket (4 req.)
4 98005512 Wiring Adaptor Plate
5 99524804 Blower Wheel *
6 99524805 Motor Bracket / Venturi *
7 99080557 Motor *
97016454 Motor / Motor Bracket Assembly
(includes Key Nos. 6 & 7) *
8 99271323 Receptacle
9 99271322 Thermal Protector
10 99420551 Plastic Wire Clip
11 99770033 Lamp Socket
12 97016491 Lamp Bracket
97016453 Lamp Bracket Assembly
(includes Key Nos. 8 thru 12)
13 99524802 Trim Ring / Baffle with Springs
14 99525160 Baffle Springs (2 req.)
15 98010583 Electrical Box Cover
3
2
8
1
5
9
10
12
11
4
99043318E
Order replacement parts by PART NO. - not by KEY NO.
* Lamp Bracket Assembly must be removed to service these
parts.
9. Attach trim ring / baffle to housing.
Remove the cardboard protector from inside the housing collar.
Insert one end of each spring into the holes on the lamp bracket.
Center trim ring / baffle in ceiling opening.
10. Install bulb.
CAUTION - RISK OF FIRE:
75W MAX. LAMP
Use R30, BR30, PAR30L, or PAR30LN lamps only (75W Max.).
For wet locations (tub or shower) - use PAR30L or PAR30LN (75W
Max.) lamp only. Use no other lamp types.
Do not install a lamp indentified for use only in enclosed luminaries.
6
7
13
FINISHED
CEILING
MATERIAL
HOUSING
COLLAR
CLEARANCE
HOLE
SPRINGS
TRIM RING /
BAFFLE
LAMP
BRACKET
Lamp Bracket Assem-
bly must be removed to
service these parts.
14
8. Finish ceiling.
Cut an opening in finished ceiling material for housing collar.
15
