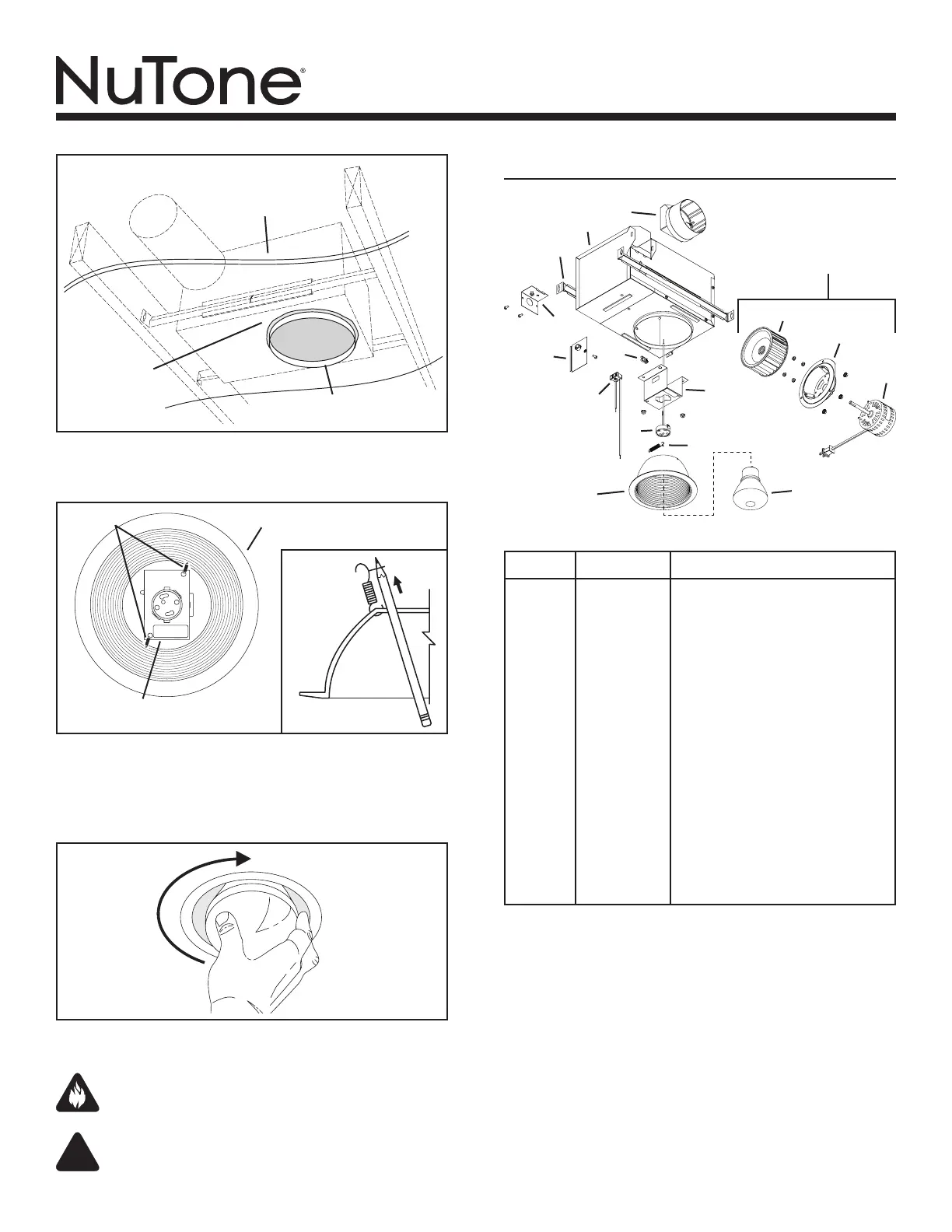

Page 4
MODEL 744LEDNT
SERVICE PARTS
KEY NO. PART NO. DESCRIPTION
1 97014185 Damper / Duct Connector
2 97016382 Housing Assembly
3 98003036 Mounting Bracket (4 req.)
4 98005512 Wiring Adaptor Plate
5 99524804 Blower Wheel *
6 99524805 Motor Bracket / Venturi *
7 99080731 Motor *
97020054 Motor / Motor Bracket Assembly
(includes Key Nos. 6 & 7) *
8 ------------- Receptacle
9 99420551 Plastic Wire Clip
10 98010900 Lamp Bracket
11 ------------- Harness, GU24 Socket
97019028 Lamp Bracket Assembly
(includes Key Nos. 8 thru 11)
12 99524802 Trim Ring / Baffle with Springs
13 99525160 Baffle Springs (2 req.)
14 99271540 LED Bulb
15 98010583 Electrical Box Cover
99045499C
Order replacement parts by PART NO. - not by KEY NO.
* Lamp Bracket Assembly must be removed to service these
parts.
FINISHED
CEILING
MATERIAL
HOUSING
COLLAR
CLEARANCE
HOLE
8. Finish ceiling.
Cut an opening in finished ceiling material for housing collar.
9. Attach trim ring / baffle to housing.
Remove the cardboard protector from inside the housing collar.
Use a pencil to insert one end of each spring into the holes on the
lamp bracket. Center trim ring / baffle in ceiling opening.
10. Install bulb.
SPRINGS
TRIM RING / BAFFLE
LAMP
BRACKET
CAUTION: Twist bulb to install or remove.
CAUTION - RISK OF FIRE: Use only R30, BR30, or PAR30
shaped, 10W LED bulb with GU24 base (supplied).
Replacement bulbs can be ordered from NuTone if not
available locally (see service parts list).
3
2
8
1
5
9
10
12
11
4
6
7
13
Lamp Bracket Assembly
must be removed to
service these parts.
14
15
