TIMEOUT AND VOLUME ADJUSTMENTS
TIMEOUT
Refer to Figure 10.
The Door Speaker operates “hands-free.” The intercom
conversation is controlled by the Master Speaker. Operation is
as follows: To speak to the Door Speaker, depress the DOOR
TALK button. To listen to the Door Speaker, release the DOOR
TALK button.
When the DOOR TALK button is released, the Door Speaker
will be active until it times out. This timeout period is factory-set
for approximately 15 seconds.
If the owner desires a longer timeout period, it can be
adjusted up to 35 seconds. Adjust timeout by turning TIMEOUT
thumbwheel pot clockwise to increase time.
VOLUME
Refer to Figure 11.
The volume is factory set. However, if the intercom
volume needs to be adjusted, use a screwdriver through the
hole in the bottom of the speaker to make the adjustment.
Turn clockwise to INCREASE volume.
OPERATION
Refer to Figure 12. Inside Speaker to Inside Speaker –
To talk from one inside speaker to the other, depress the
INSIDE TALK button. Keep the button depressed while
speaking; release the button to hear reply. The person making a reply must also depress INSIDE TALK to speak.
While the INSIDE TALK buttons are depressed, the door speaker will be disconnected. When the INSIDE TALK buttons are
released, both inside speakers will be in the “listen to the door mode” until the system times out.
Inside Speaker to Door Speaker – To speak from an inside speaker to the door speaker depress the DOOR TALK button.
To listen to the door speaker, release the DOOR TALK button.
Optional Door Release – Depress the DOOR RELEASE as long as entrance requires.

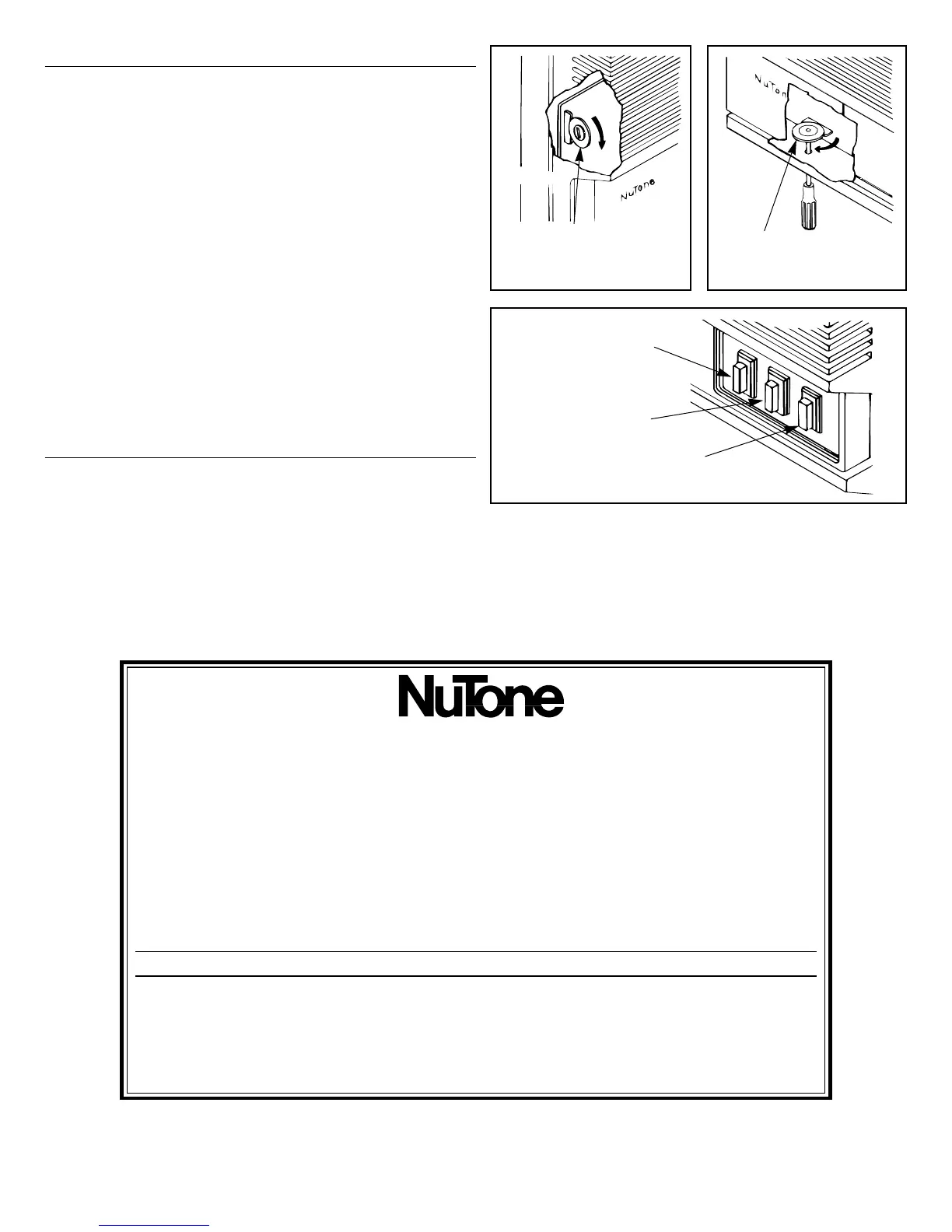

FIGURE 10
FIGURE 11
TIMEOUT THUMBWHEEL
VOLUME CONTROL
INSIDE TALK
DOOR TALK
DOOR RELEASE
