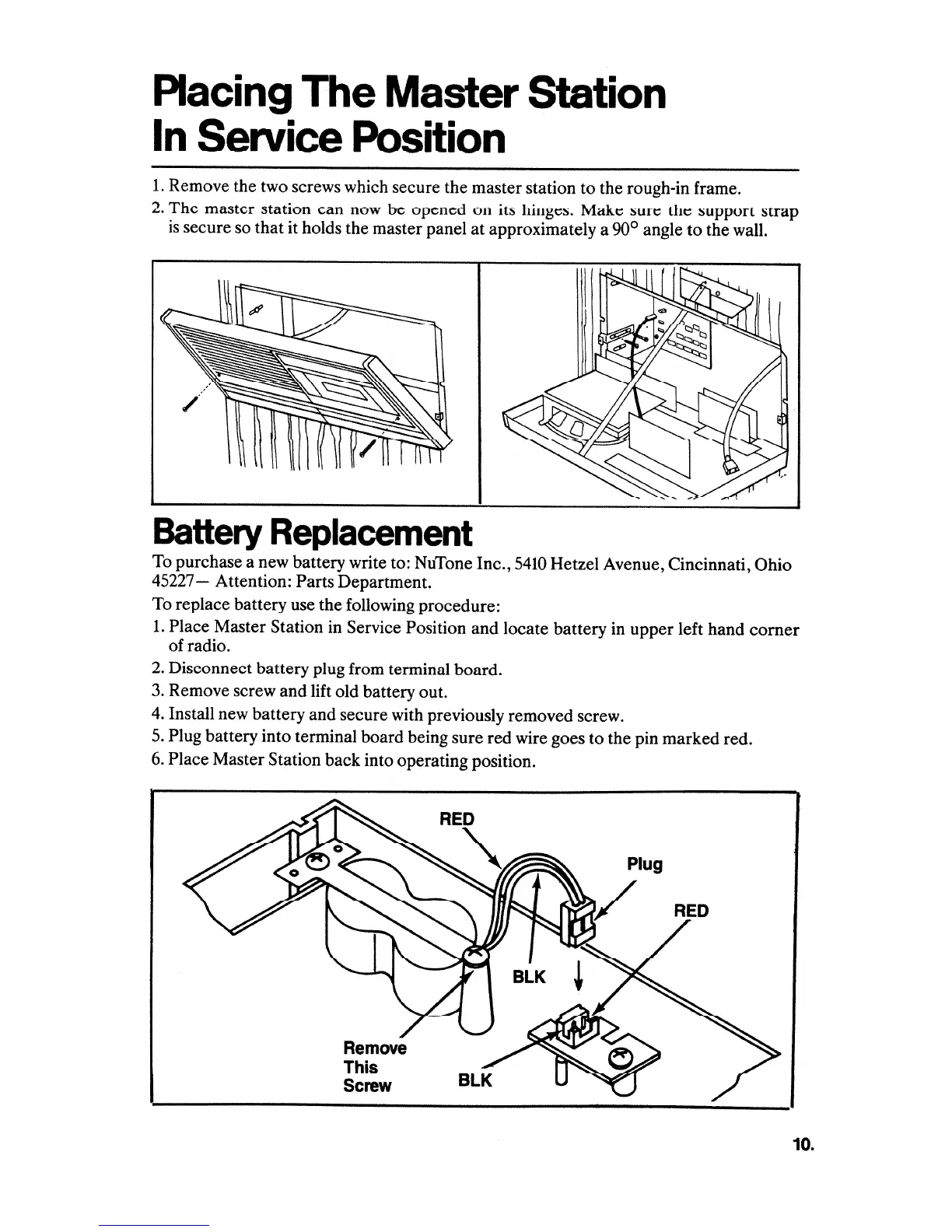

Placing
The
Master
Station
In
Service
Position
1.
Remove the two screws which secure the master station to the rough-in frame.
2.
The
master
station
can
now
be
opened
on
its hinges.
Make
sure
the
support
strap
is
secure so that it holds the master panel at approximately a 90° angle
to
the wall.
Battery
Replacement
To purchase a new battery write to: NuTone Inc.,
5410
Hetzel Avenue, Cincinnati, Ohio
45227-
Attention: Parts Department.
To replace battery use the following procedure:
1.
Place Master Station in Service Position and locate battery in upper left hand
corner
of radio.
2.
Disconnect
battery
plug
from
terminal
board.
3.
Remove screw and lift old battery out.
4.
Install new battery and secure with previously removed screw.
5.
Plug battery into terminal board being sure red wire goes to the pin marked red.
6.
Place Master Station back into operating position.
