MODEL NM100WH
Page 8

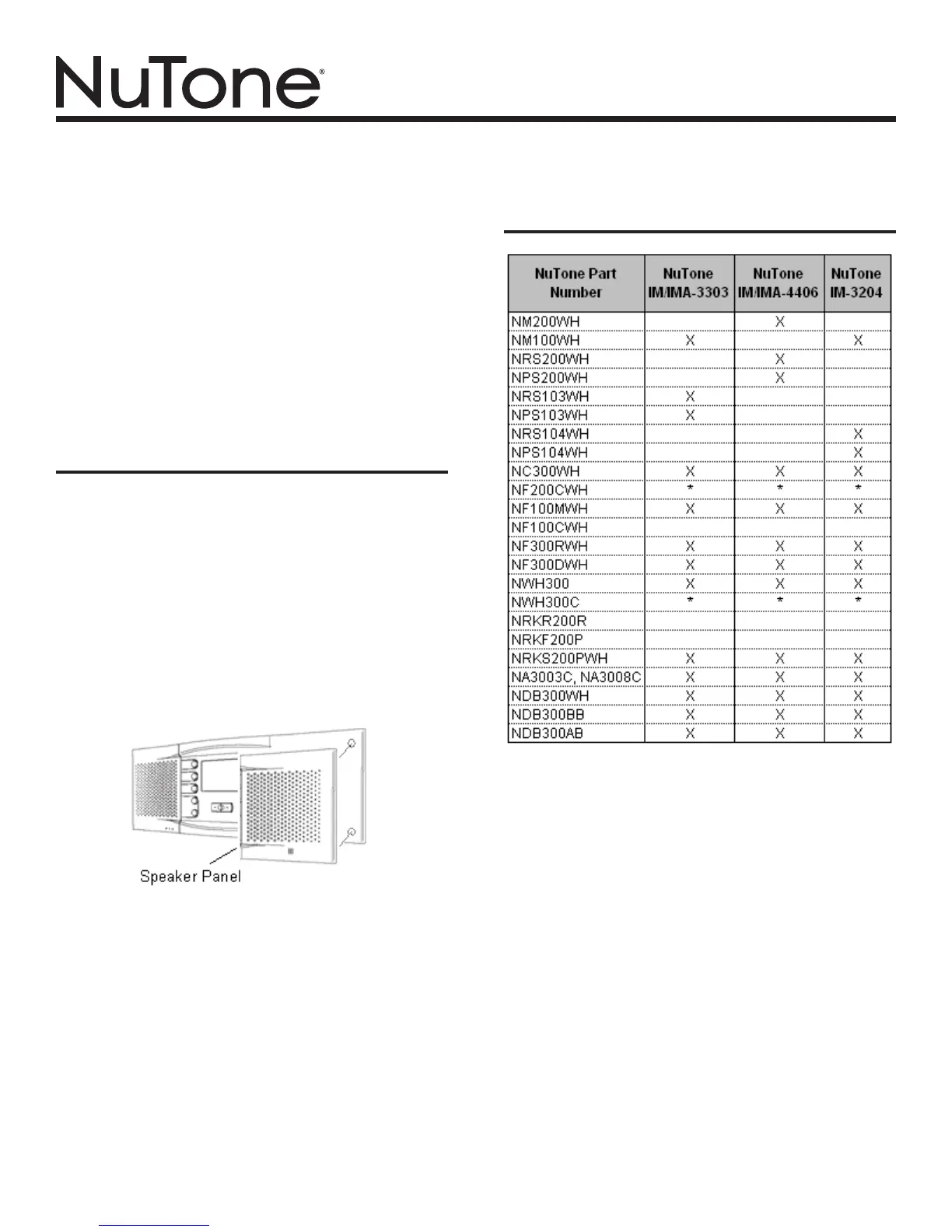

APPENDIX A - NUTONE
SYSTEMS
*Refer to frames below:
NF100MWH Replacing a master only system with an
NM100 master
NF100CWH Replacing a combination system with an
NM100 master and NC300 CD player
NF200CWH Replacing a master only system with an
NM100 master and NC300 CD player (requires hole in wall
to be made larger)
NF300RWH Used on all indoor remote station
replacements
•NF300PWH–Usedonalloutdoororhighsunareaush
mount remote station replacements
NRKS200PWH Used on all outdoor surface mount
remote station replacements
NF300DWH Used on older NuTone door station
replacements,notrequiredforM&Sreplacements
Afterallconnectionshavebeenmade,inserttheNM100power
plug into NA300TA transformer and secure the master to the
rough-inusingthe2screwsprovided.IfusingtheNF200CWH,
NF100CWHorNF100MWHframewithaNC300player,install
the master unit over the frame. Do not over tighten the screws
as the plastic may distort or crack. Install the speaker panel on
the master as shown.
Please be careful to only apply pressure on the speaker panel
at the corners and not in the middle. Check all functions by
following the guidelines in the Owners Manual shipped with
themasterunit.Ifanydifcultiesareencountered,recheckall
connections. If after reviewing these instructions you are unable
to resolve any problems, contact technical support at 1-888-
336-6151.
TESTING
The door release switch contacts are very versatile and can be
used with many AC/DC door or switch contacts. Be sure to use
thewireandpowersupplyortransformerspeciedbythedoor
or gate release product being used.
PANIC INTERFACE WITH SECURITY SYSTEM
Run a line of 18 gauge solid copper, twisted pair approved
low voltage cable from the NWH300 or NWH300C rough-in
location to the security control panel. Setup the security panel to
receive a normally open dry contact for panic operation. (Refer
to programming procedures accompanying the security panel).
Label and secure cables at the NWH300 or NWH300C rough-
in.HaveacertiedsecurityinstallerhooktheNM100uptothe
alarm system.
