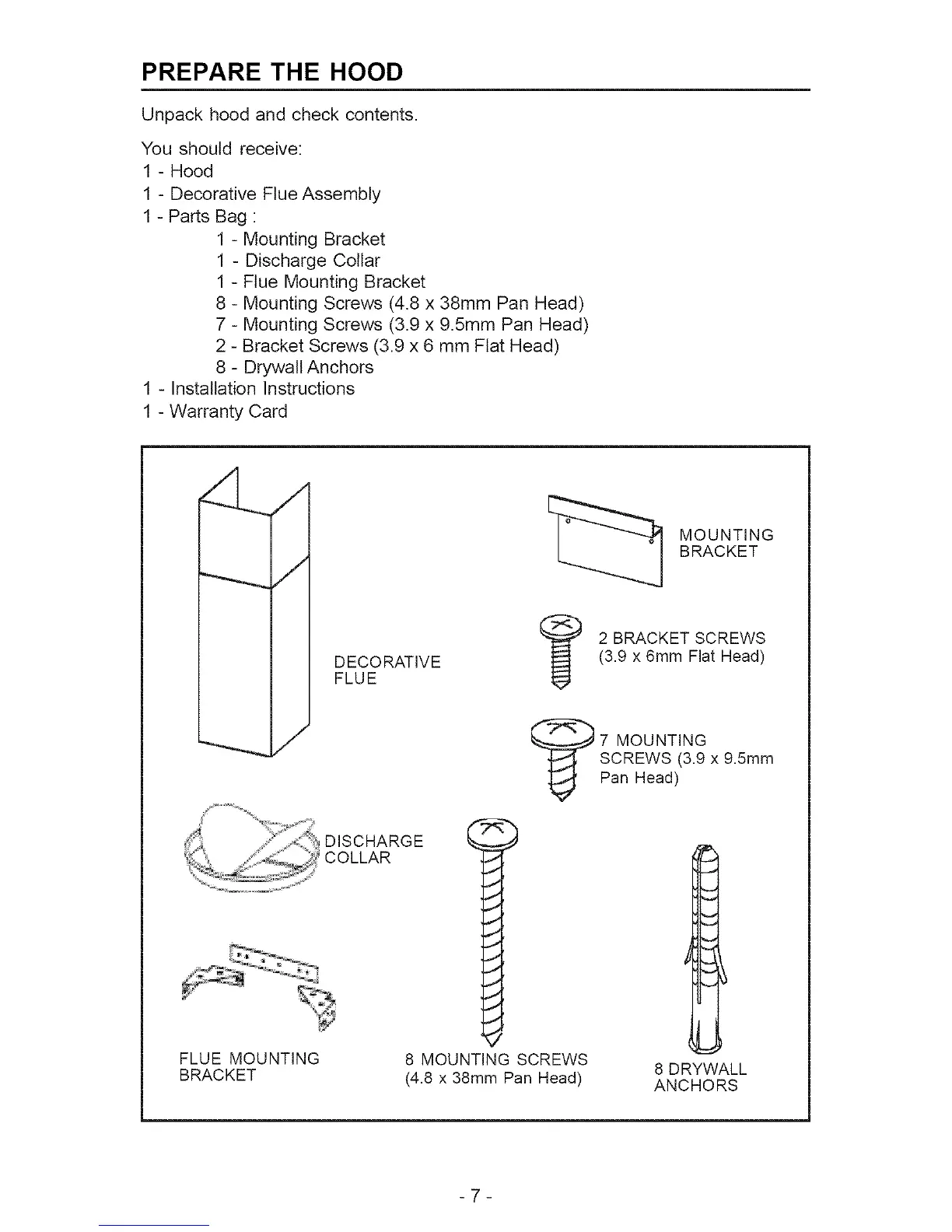

PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag :
1 - Mounting Bracket
1 - Discharge Collar
1 - Flue Mounting Bracket
8 - Mounting Screws (4.8 x 38mm Pan Head)
7 - Mounting Screws (3.9 x 9.5mm Pan Head)
2 - Bracket Screws (3.9 x 6 mm Flat Head)
8 - Drywall Anchors
1 - Installation Instructions
1 - Warranty Card
DECORATIVE
FLUE
MOUNTING
BRACKET
_i_ 2 BRACKET SCREWS
(3.9 x 6ram Flat Head)
7 MOUNTING
SCREWS (3.9 x 9.5mm
Pan Head)
FLUE MOUNTING
BRACKET
8 MOUNTING SCREWS
(4.8 x 38mm Pan Head)
8 DRYWALL
ANCHORS
