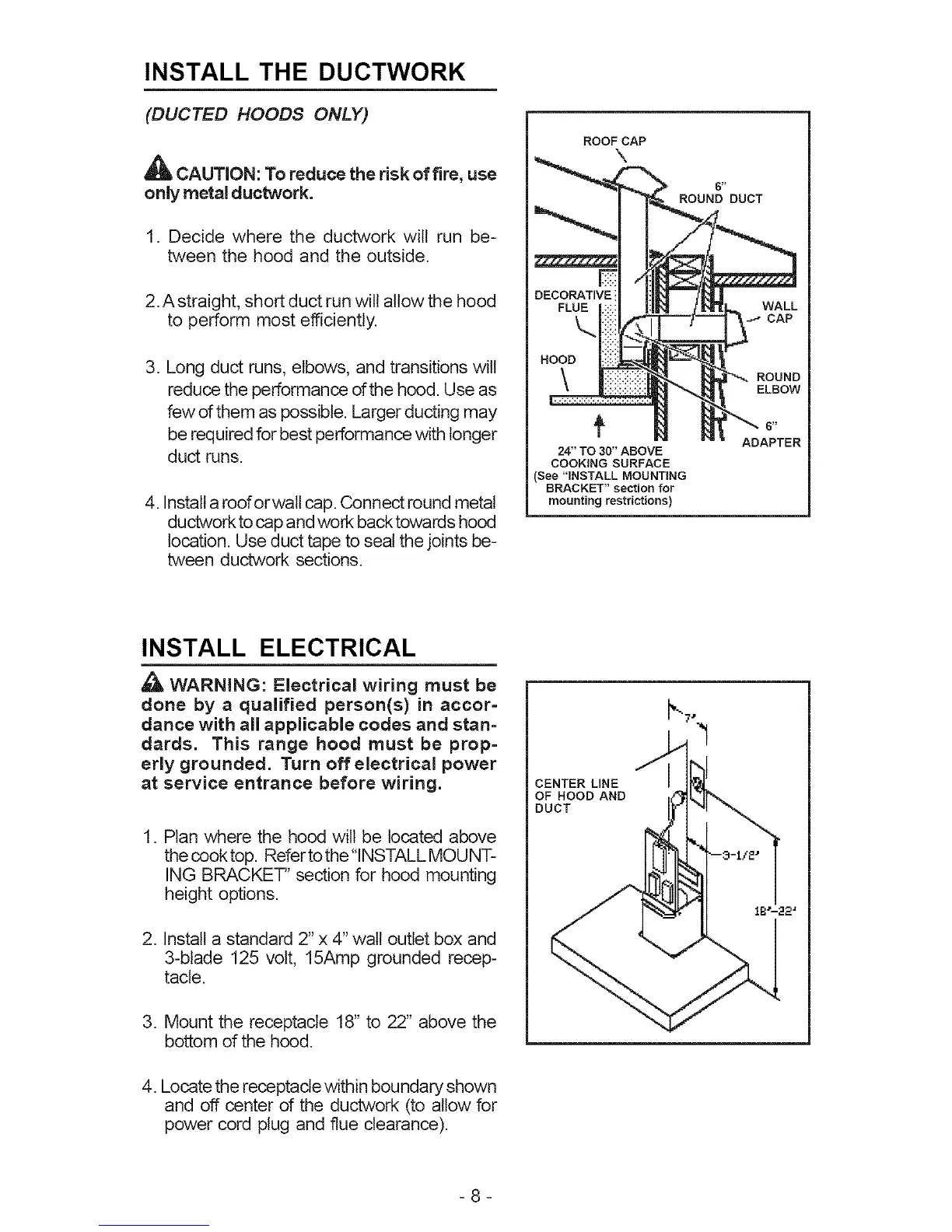

INSTALL THE DUCTWORK
(DUCTED HOODS ONLY)
A
CAUTION: To reduce the risk of fire, use
only metal ductwork.
1. Decide where the ductwork will run be-
tween the hood and the outside.
2.A straight, short duct run will allow the hood
to perform most efficiently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use as
few ofthem as possible. Larger ducting may
be required for best performance with longer
duct runs.
4. Installa rooforwalt cap. Connect round metal
ductwork to capand work backtowards hood
location. Use duct tape to seat the joints be-
tween ductwork sections.
ROOF CAP
N
6"
ROUND DUCT
DECORATIVE:
24" TO 30" ABOVE
COOKING SURFACE
See "INSTALL MOUNTING
BRACKET" section for
mounting restrictions)
ROUND
ELBOW
6"
ADAPTER
INSTALL ELECTRICAL
_, WARNING: Electrical wiring must be
done by a qualified person(s) in actor=
dance with all applicable codes and stan=
dards. This range hood must be prop=
edy grounded. Turn off electrical power
at service entrance before wiring.
1. Plan where the hood will be located above
thecooktop. Refer tothe"INSTALL MOUN-r-
ING BRACKET" section for hood mounting
height options.
2. Install a standard 2" x 4" wall outlet box and
3-blade 125 volt, 15Amp grounded recep-
tacle.
3. Mount the receptacle 18" to 22" above the
bottom of the hood.
4. Locate the receptacle within boundary shown
and off center of the ductwork (to allow for
power cord plug and flue clearance).
CENTER LINE
OF HOOD AND
DUCT
-8-
