Nuvoton TOF KHKT001 User Manual

15
TOF camera
KHKT001-EVM
<Back View>
<Side View>
almost
1.2m
(a)
Desk
(a) Desk
PC
Power
(d) Desk with casters
No
Items
Detail specs
(a)
Desk
Normal PC desk.
(b)
Target
-
Flat, thin and durable board
-
Target size is 60 cm (H) x 50 cm(V)
-
Reflectivity is 90%@850 nm light
(c)
Tripod for camera
Height
should be adjusted to around 1.2m.
(d)
Desk
with caster
Desk with casters is useful
to change the distance between the
target and the TOF camera.
(e)
Support pillar
Book
stand etc.
(c)
Tripod
(b) Target
(e) Support pillar
(b) Target

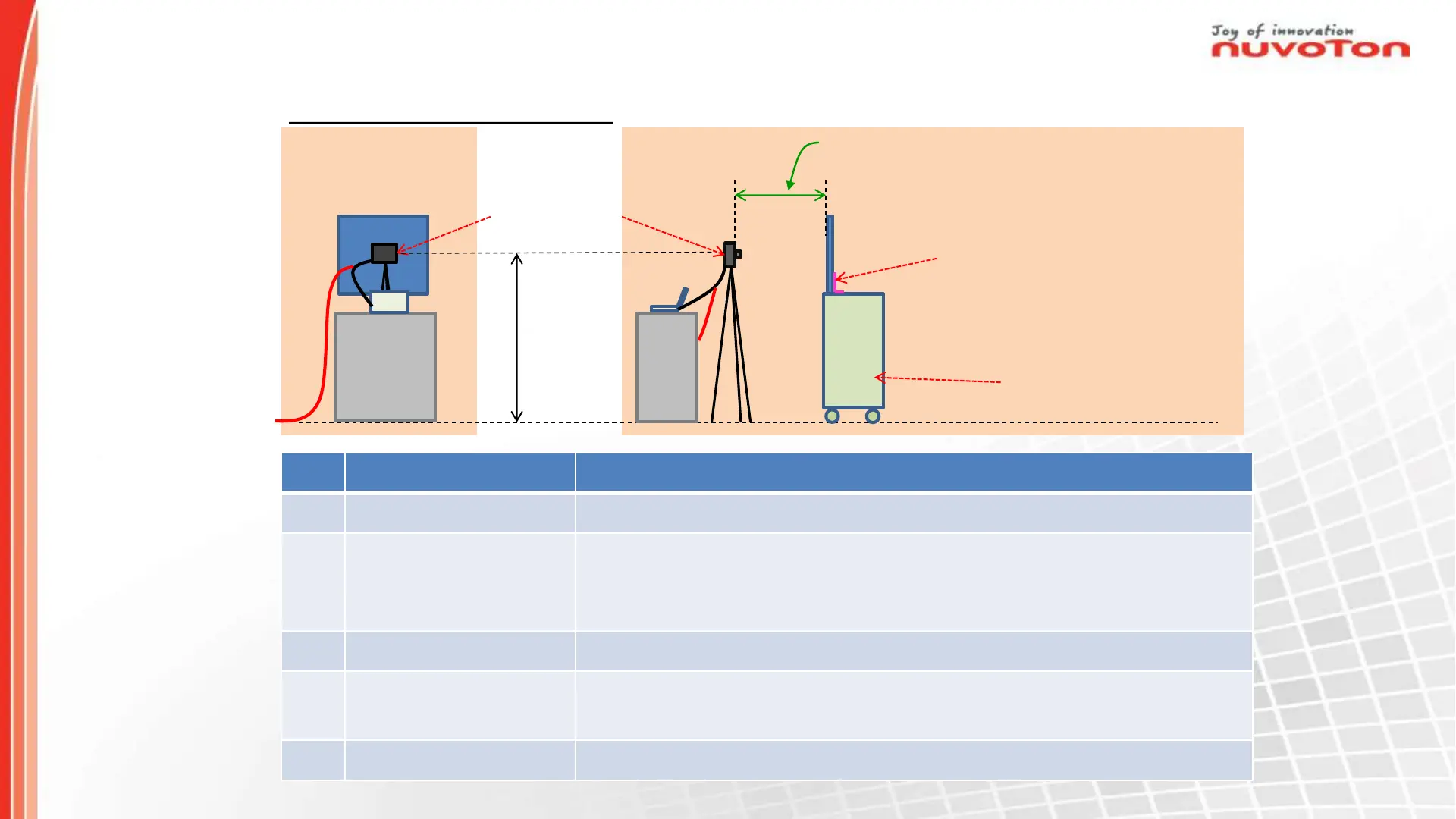

Evaluation equipment
PC
Distance changes from
200mm to 4500mm
Example of Evaluation Equipment
* It is important to reduce the reflectivity of the floor and surroundings to avoid multipath interference.
