Nuvoton TOF KHKT001 User Manual

5

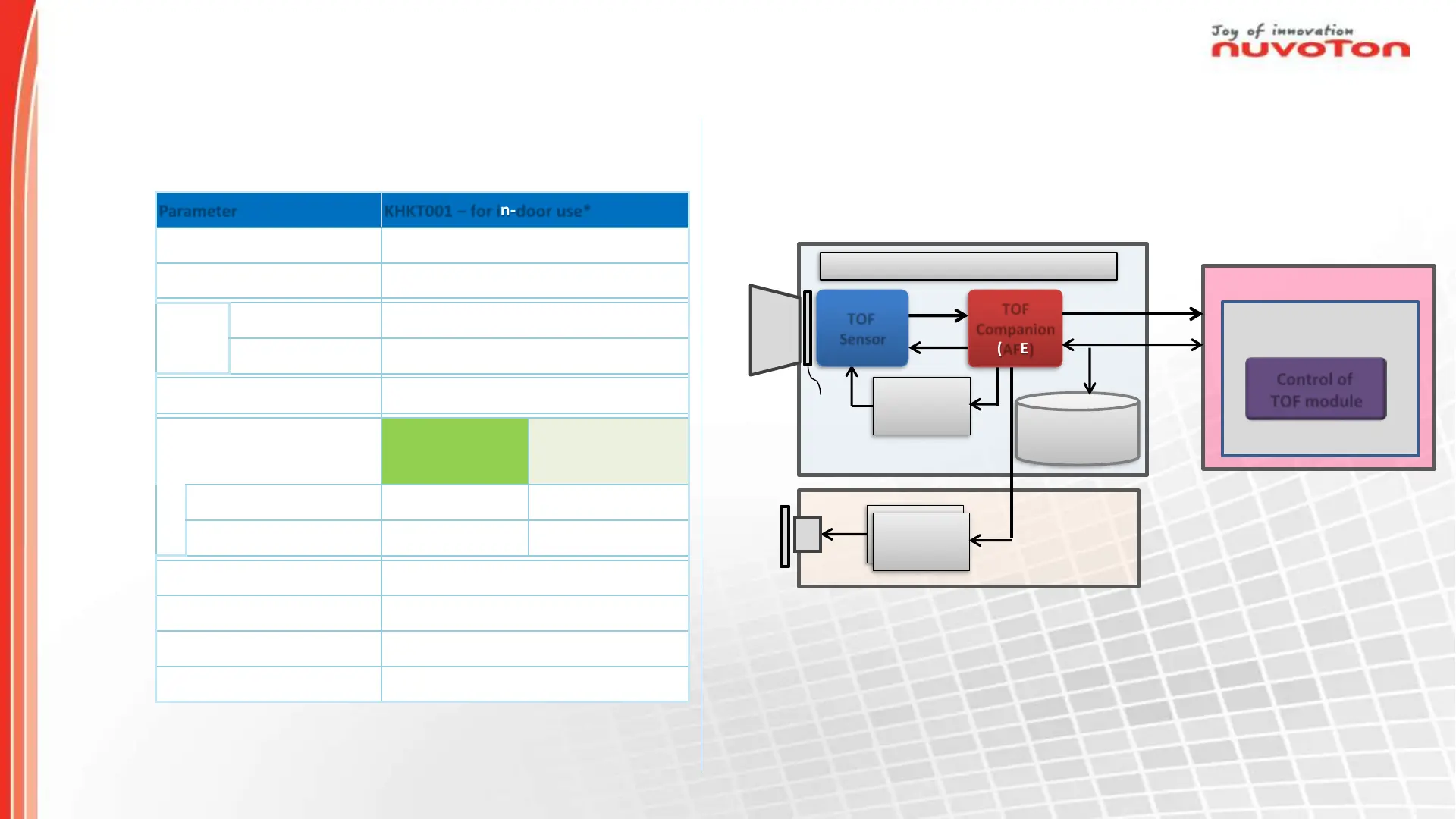

■ Specifications ■ Block Diagram
Parameter
KHKT001
– for in-door use*
TOF
Sensor
1/4” VGA /IR
– TOF
Resolution
640
x 480 (VGA)
Lens
FOV
H:
110° x V: 80°
Aperture
F1.3
VCSEL
850nm
x 2pc
Performance
Mode 0:
Short
range
Mode 1:
Long
range
Camera Distance
0.2 to 1.2 [m]
0.5 to 4.5 [m]
Frame
Rate
30 fps
20 fps
Interface
MIPI (CSI
-2)／I2C
Module
Size
85
x 29.4 x 22.9 [mm]
Supply
Voltage
DC 5V (From 4.85V to 5.3V)
Operating
Temperature
Ta=
0 to +60°C
Overview of KHKT001-EVM
VCSEL
Shutter
Driver
LENS
BPF
Driver
PM IC
TOF
Sensor
TOF
Companion
(AFE)
Diffusor
Calibration Data
on EEPROM
Software
MIPI
I2C
SoC Board
Sensor board
LD board
Control of
TOF module

Nuvoton TOF KHKT001 Specifications

General

Brand	Nuvoton
Model	TOF KHKT001
Category	Control Unit
Language	English
