Nvidia GeForce GTX 770 User Manual


CONFIGURING SLI
> Windows XP
Go to Start
 Control Panel and select the NVIDIA Control
Panel icon.
> Windows Vista
z
Classic view
Go to Start
 Control Panel and select the NVIDIA Control
Panel icon.
z
Control Panel Home view
Go to Start
 Control Panel  Additional Options and select
the NVIDIA Control Panel icon.
Enabling / Disabling SLI

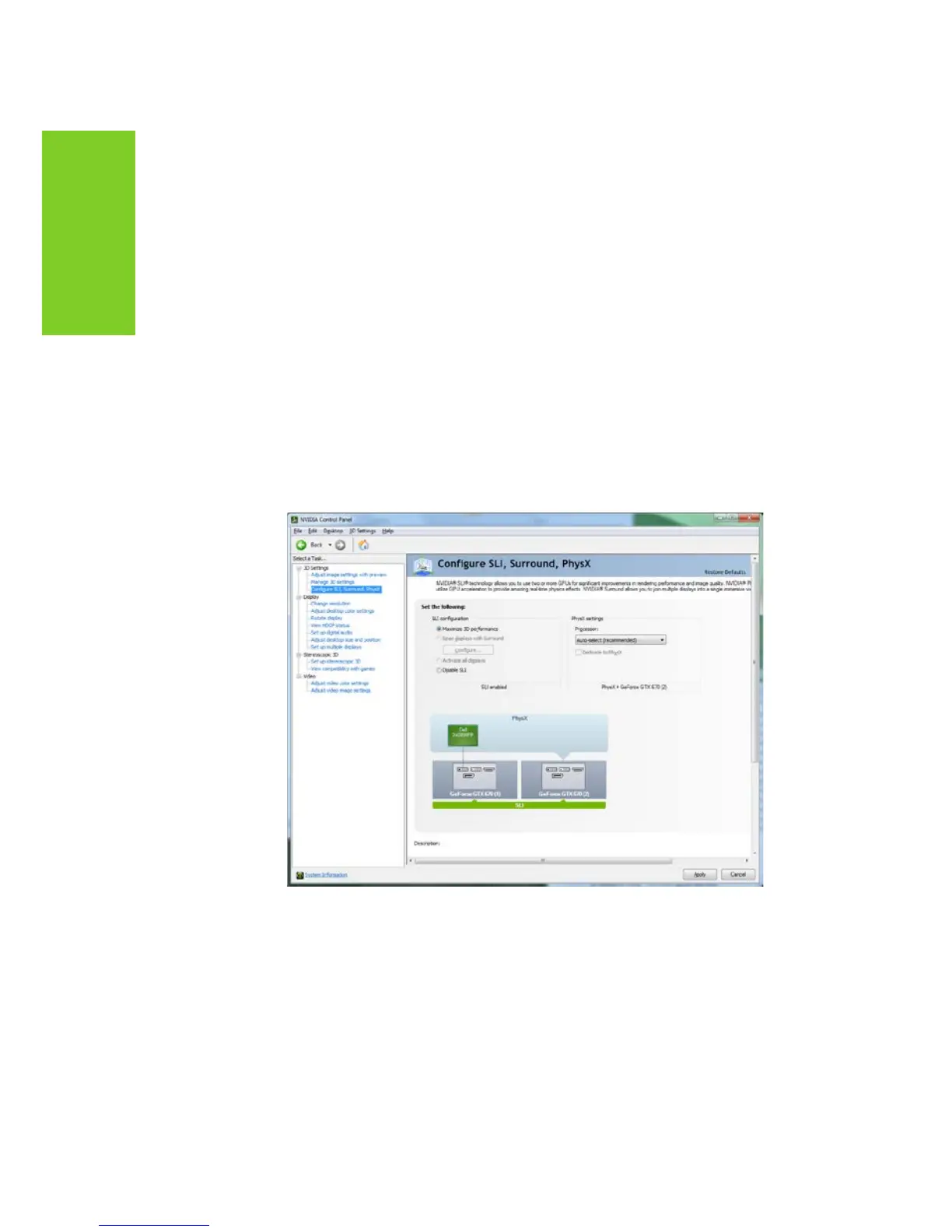

2 Once you have the NVIDIA Control Panel open, click on
Configure SLI, Surround, PhysX in the left task pane.
3 Select from the following multi-GPU configurations:
> Maximize 3D performance
Select this mode when you want your graphics cards to work
together to increase your rendering performance and image quality.
> Acivate all displays
Activate all displays disables SLI and activates all connected
displays (heads).


Nvidia GeForce GTX 770 Specifications

General

CUDA Cores	1536
Base Clock	1046 MHz
Boost Clock	1085 MHz
Memory	2 GB or 4 GB GDDR5
Memory Interface Width	256-bit
Memory Bandwidth	224.3 GB/s
TDP	230 W
Recommended System Power	600 W
Architecture	Kepler
GPU	GK104
Memory Clock	7010 MHz
Outputs	Dual-link DVI-I, Dual-link DVI-D, HDMI, DisplayPort
Process	28 nm
OpenGL	4.4
Shader Model	5.0
PCI Express Interface	PCIe 3.0 x16
Maximum Digital Resolution	4096x2160
Maximum Display Outputs	4
SLI Support	Yes
