Installation and Setup
www.nvidia.com
NVIDIA RTX Blade Server DU-09554-001 _v02|12
On square-holed racks, make sure the prongs are completely inserted into the hole
by confirming that the spring is fully extended.
The prong behind the metal clip will hold a screw that secures the rack mount kit in
place. The metal clip helps secure the rail in place while installing the rail to the rear
of the rack.
3.
Extend the rail to the rear post of the rack and secure the rail to the post.
Make sure that rail is level and the attachment on the rear post is at the same rack
unit as the front.
a) Insert the spring-loaded prongs into the holes on the rear rack post.
b) On square-holed racks, make sure the prongs are completely inserted into the
hole by confirming that the spring is fully extended.
4.
Repeat these steps for the other rail.
5.
Secure the rails to the rack using the provided screws.
Install one screw for each rail end.

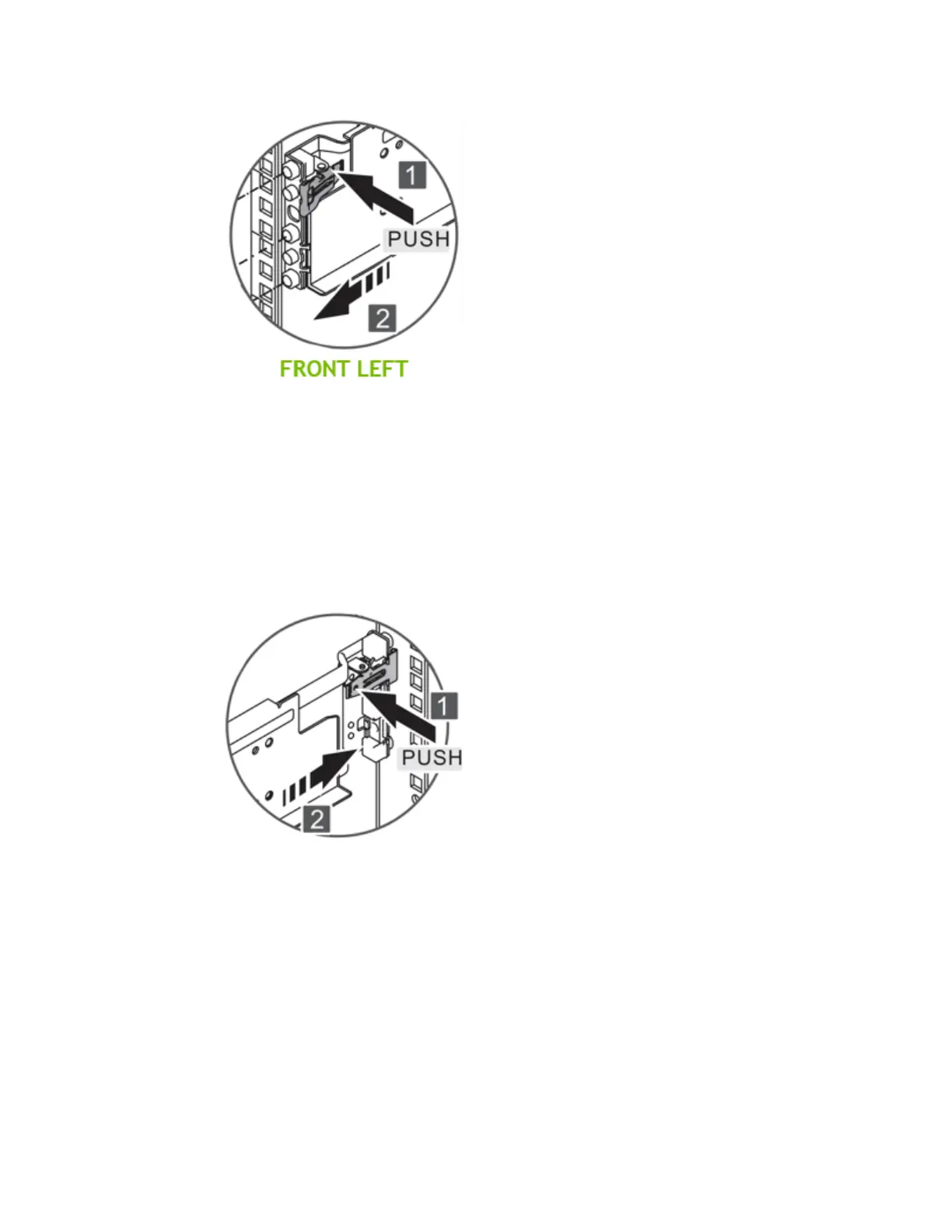

a) Install the flat head screws to the front by first pressing on the metal clip and then
installing the screws on both left and right side rails.
