Nyrius NAVS500 User Manual

- 3 -
1. USB SOCKET - For software upgrades and
keyboard or mouse connection
2. POWER LED - Indicates power on
3. VIDEO LED - Indicates HDMI connection
4. LINK LED - Indicates wireless connection
5. IR 2.5mm SOCKET - Connect external IR
remote extender
6. STANDBY BUTTON - Set unit to standby
7. HDMI SOCKET - Connect your HDMI device
8. 5V DC POWER SOCKET - Connect to power
supply

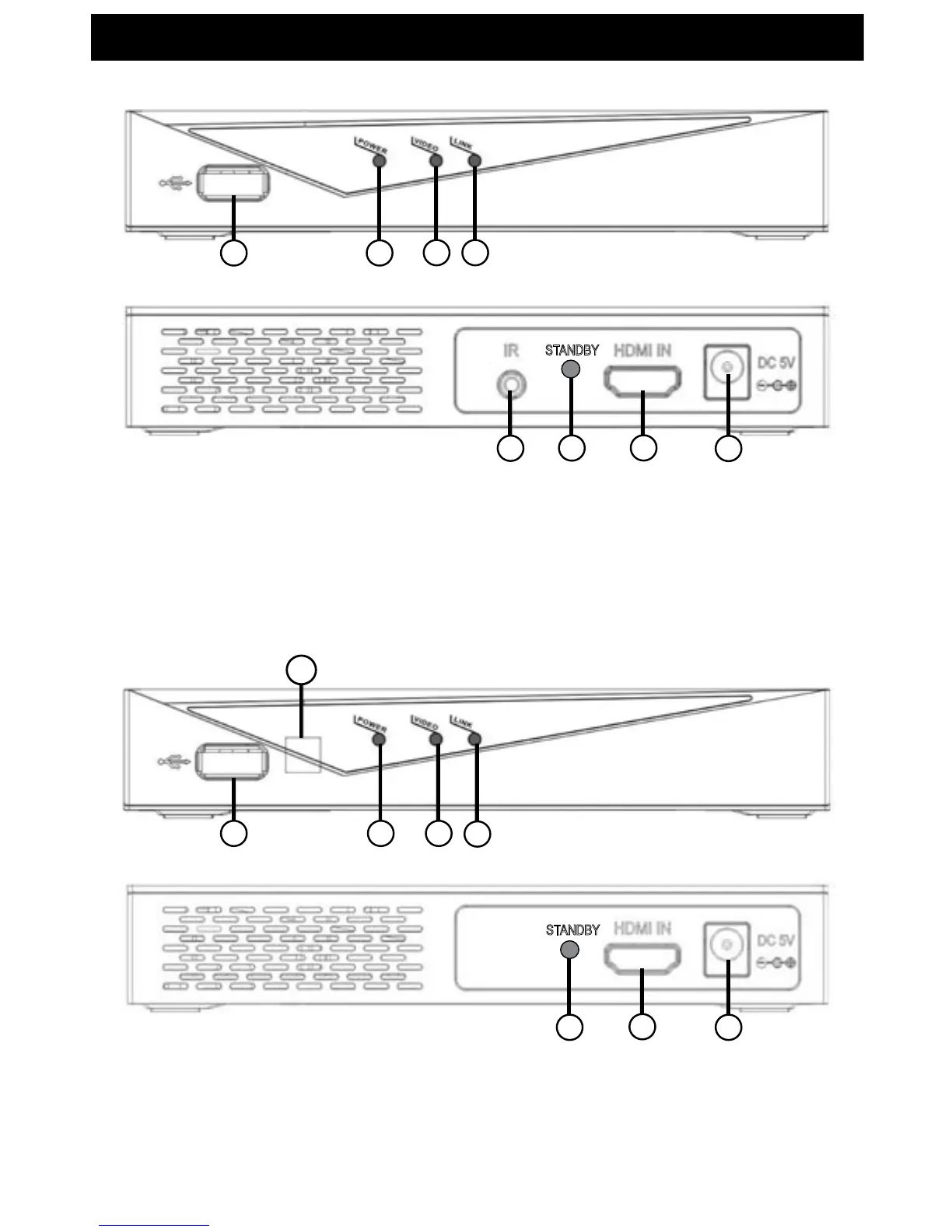

BUTTONS AND CONNECTIONS
1 2
3 4
Transmitter - FRONT
2 3 4
5
1
Receiver - FRONT
7
86
Receiver - BACK
Transmitter - BACK
5
7
8
6
1. IR SENSOR WINDOW - Detects IR commands
2. USB SOCKET - For Software upgrades and
keyboard or mouse connection
3. POWER LED - Indicates power on
4. VIDEO LED - Indicates HDMI connection
5. LINK LED - Indicates wireless connection
6. STANDBY BUTTON - Set unit to standby
7. HDMI SOCKET - Connect your HDMI device
8. 5V DC POWER SOCKET - Connect to power
supply

Nyrius NAVS500 Specifications

General

Brand	Nyrius
Model	NAVS500
Category	Receiver
Language	English
