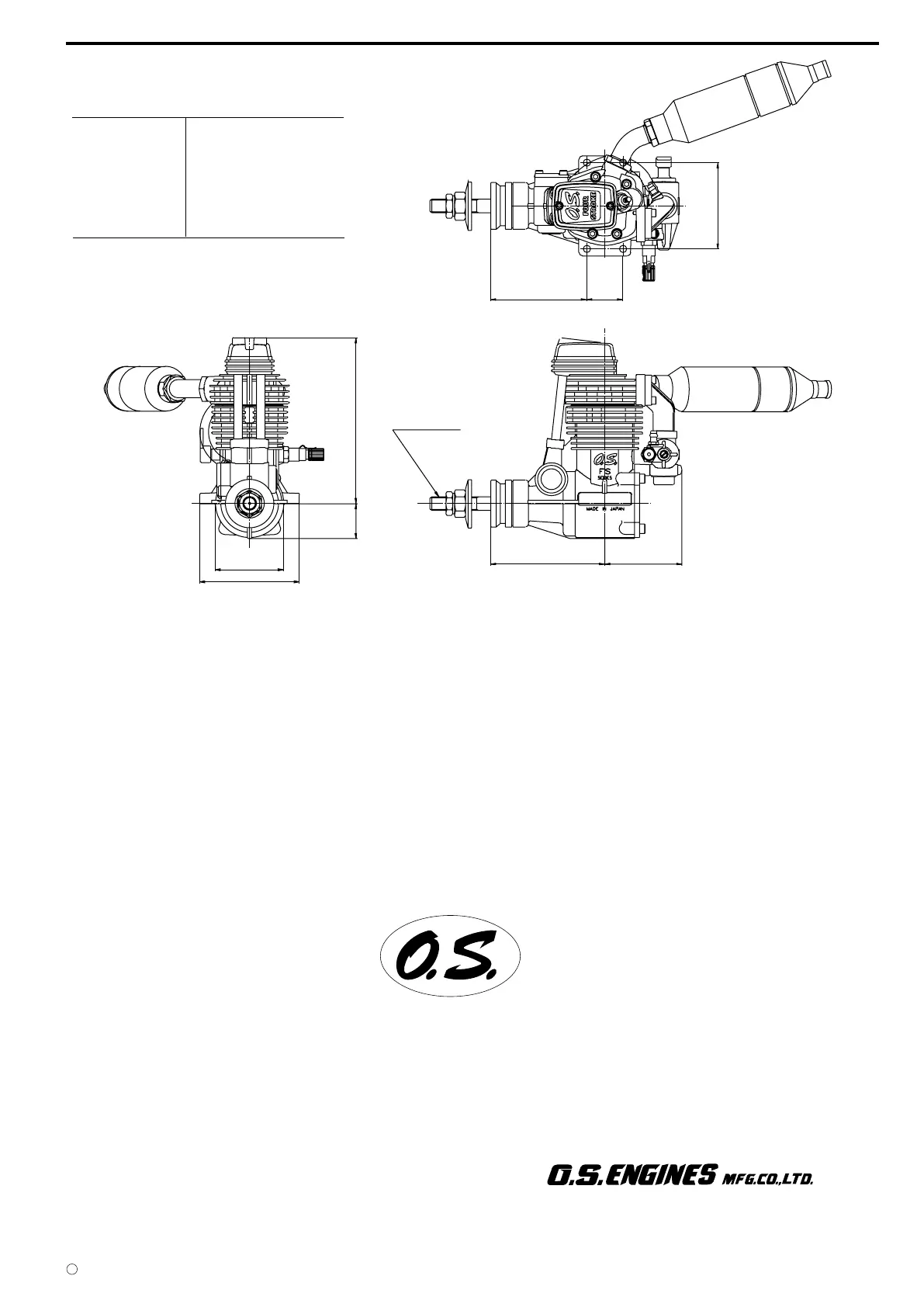

O.S. engine fs-70II - Three View Drawing

28
FS-70SⅡ
11.50cc/0.702cu.in.
25.8mm/1.016in.
22.0mm/0.866in.
2.000〜12.000r.p.m.
1.1bhp/11.000r.p.m.
580g/20.4oz.
58
39.6
20.3 96.4
UNF5/16-24
66.3
44.7
55.8
21
50
Dimensions(mm)
Displacement
Bore
Stroke
PracticalR.P.M.
Output
Weight
Specifications
THREE VIEW DRAWING
■
■
■
■
■
■
