O.S. engine MAX-12TR Series - Three View Drawing 26

■ Displacement
■ Bore
■ Stroke
■ Practical R.P.M.
■ Power output
■ Weight
SPECIFICATIONS

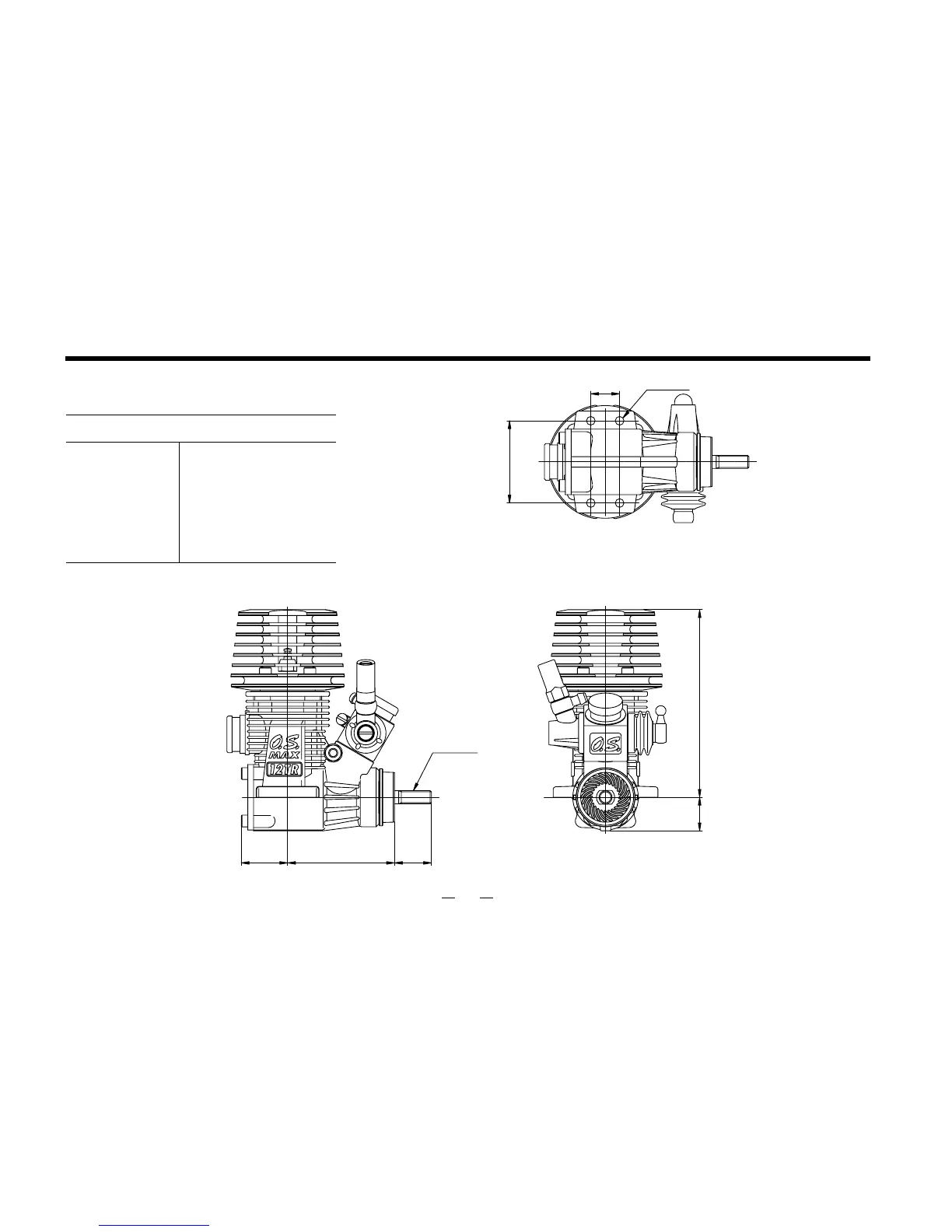

12TR THREE VIEW DRAWING Dimensions(mm)
31.4
11
4-
φ
3.3
17.7 40.8
12.8
71.6
14.1
M5X0.8
2.11 cc
(
0.129 cu.in.
)
14.0mm
(0
.551 in.
)
13.7mm
(
0.539 in.
)
4,000
~ 36,000 r.p.m.
1.1 bhp / 30,000 r.p.m.
216.5g(7.5oz.)
MAX-12TR W/10J
