O.S. engine MAX-15 - Three View Drawings

4.07 cc
(
0.249 cu.in.
)
18.0mm
(
0.709 in.
)
16.0mm
(
0.630 in.
)
2,000
~ 16,000 r.p.m.
0.6 bhp / 15,000 r.p.m.
185.5g
(
6.54 oz.
)
■
■
■
■
■
■
2.49 cc
(
0.1517 cu.in.
)
15.2mm
(
0.598 in.
)
13.7mm
(
0.539 in.
)
2,500
~ 18,000 r.p.m.
0.41 bhp / 17,000 r.p.m.
129.5g
(
4.56 oz.
)
■
■
■
■
■
■

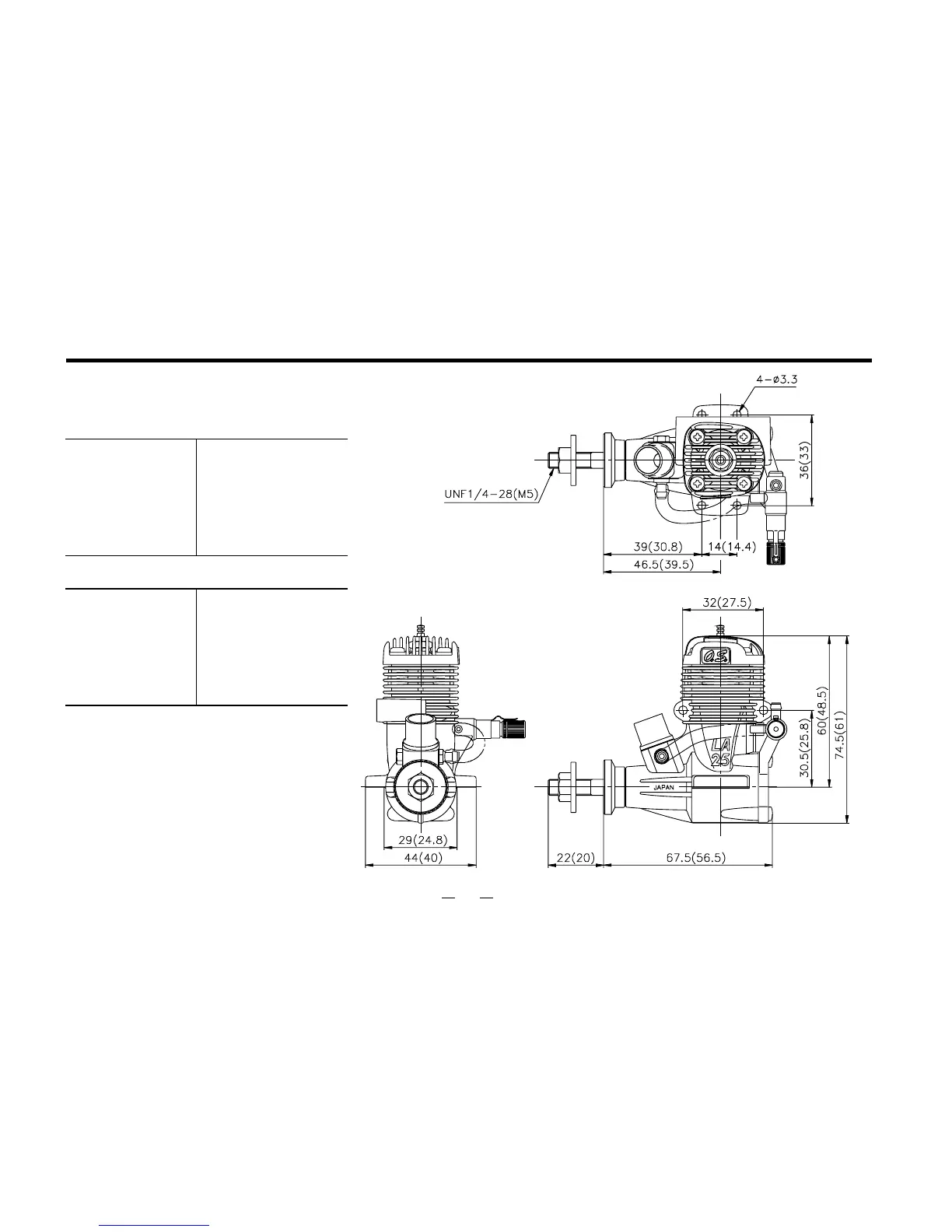

MAX-15/25LA-S THREE VIEW DRAWING
Displacement
Bore
Stroke
Practical R.P.M.
Power output
Weight
25LA-S SPECIFICATIONS
Displacement
Bore
Stroke
Practical R.P.M.
Power output
Weight
15LA-S SPECIFICATIONS
( )15LA
Dimensions(mm)
28
