INSTALLING THE GLOWPLUG
Carburetor
Install washer on glowplug
and insert carefully into
cylinder-head, making sure
that it is not cross-threaded
before tightening firmly.

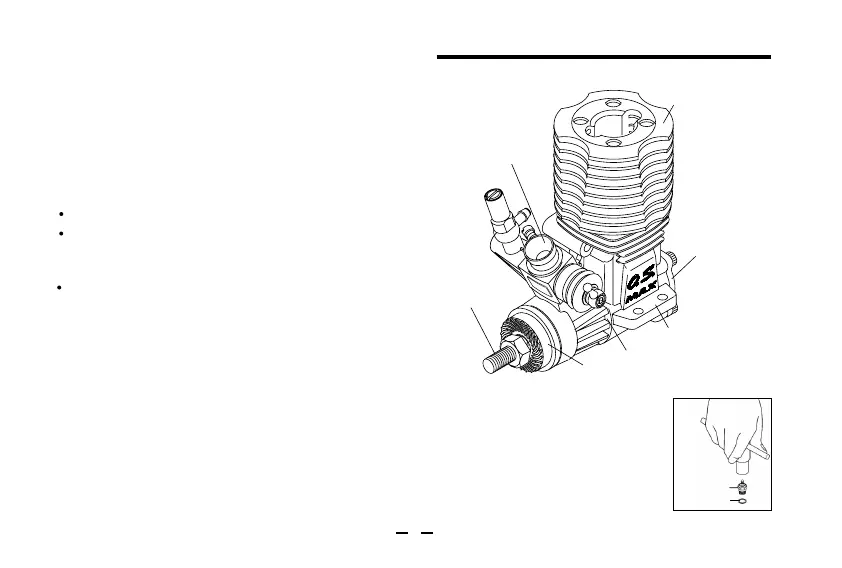

BASIC ENGINE PARTS
The MAX-15CV-R is high-perfomance
engines for 1/10 class R/C racing cars.
There are two verions, the one with 10E-
R carburettor and the other with 10C
carburetor.
Crankshaft
Glow plug
Washer
Drive Hub
Crankcase
Beam Mount
Heatsink Head
Cover Plate
As delivered, the engine has its carburetor
lightly fit into its intake. Secure it changing
its angle according to the car chassis.
NOTE
NOTE: With this engine, the piston will feel
tight at the top of its stroke when the engine
is cold. This is normal. The piston and
cylinder are designed to achieve a perfect
running clearance when they reach their
normal running temperatures.
Standard accessories
Glow Plug No.8
Super Air Cleaner 102
102 Cleaner Body
101,102 Filter Elements (3pcs.)
Engine Mount Spacer (For 15CV-RX)
