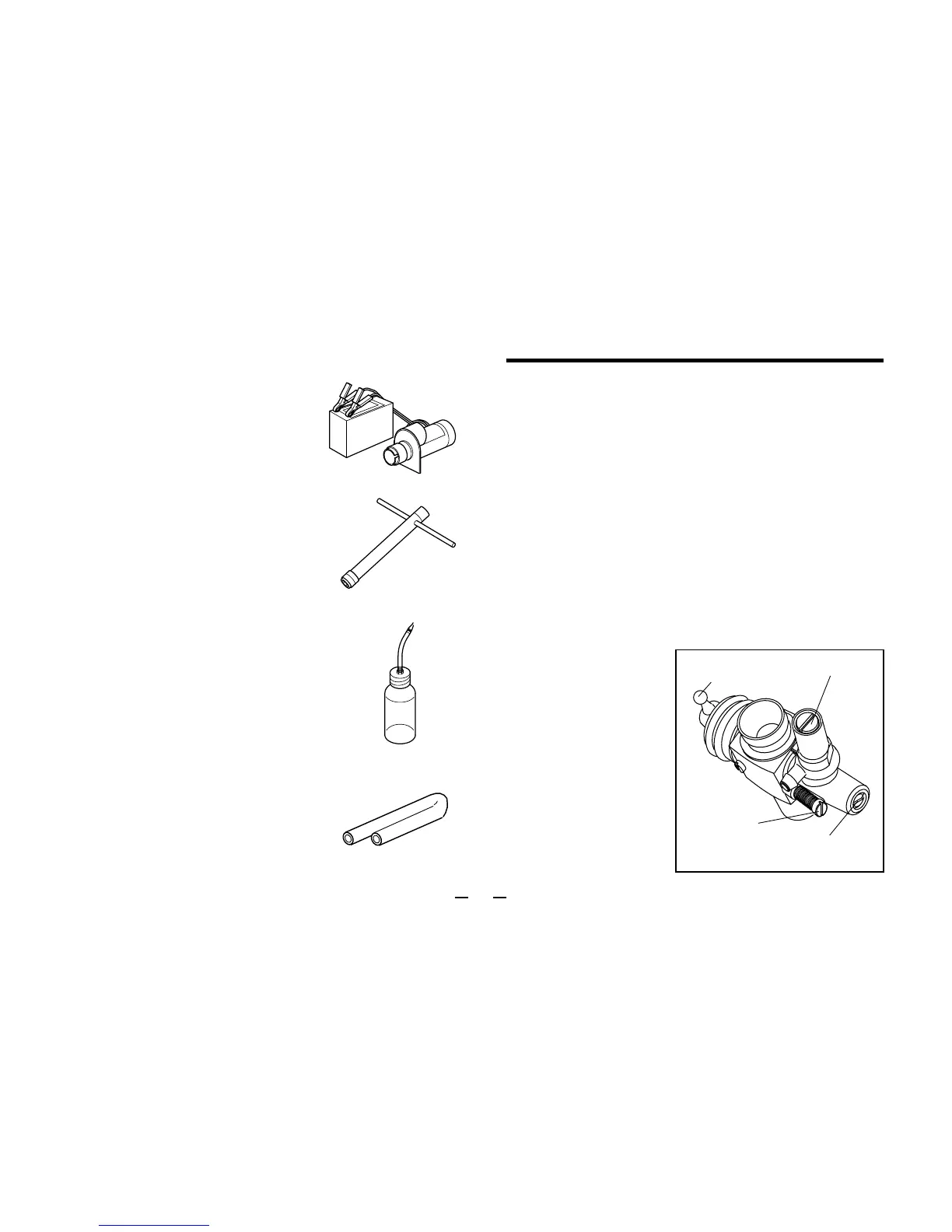

LONG SOCKET WRENCH
SILICONE TUBING
Heatproof silicone tube of approx.
5mm o.d. and 2mm i.d. is required
for the connection between the fuel
tank and engine.
FUEL BOTTLE OR PUMP
ELECTRIC STARTER AND STARTER BATTERY
Use an electric starter with 12-volt
battery for starting the MAX-15CV.
CARBURETOR CONTROLS
(
10C
)
The Needle-Valve:
•
The Mixture Control Screw:
•
The Throttle Stop Screw:
For setting the minimum idling speed.
•
Needle Valve
Mixture Control Valve
Assembly Screw
Throttle
Stop Screw
Ball Link
NOTE:
Readjustment may
be necessary, occa-
sionally to allow for
changes in fuel for-
mulae, gear ratio or
clutch engagement
point.
Three adjustable controls are provided on this
carburetor.
For adjusting the mixture strength when the throttle
is fully open.
For adjusting the mixture strength at part-
throttle and idling speeds, to obtain steady
idling and smooth acceleration to mid speeds.
Recommended for easy removal
and replacement of the angled
and recessed glowplug, the
O.S.Long Socket Wrench
incorporates a special grip.
For filling the fuel tank, a simple,
polyethylene "squeeze" bottle,
with a suitable spout, is required.
12
