INSTALLATION OF E-1000 SILENCER
(
12/15LD
(
T
)
.
LD
-
X
(
T
)
)

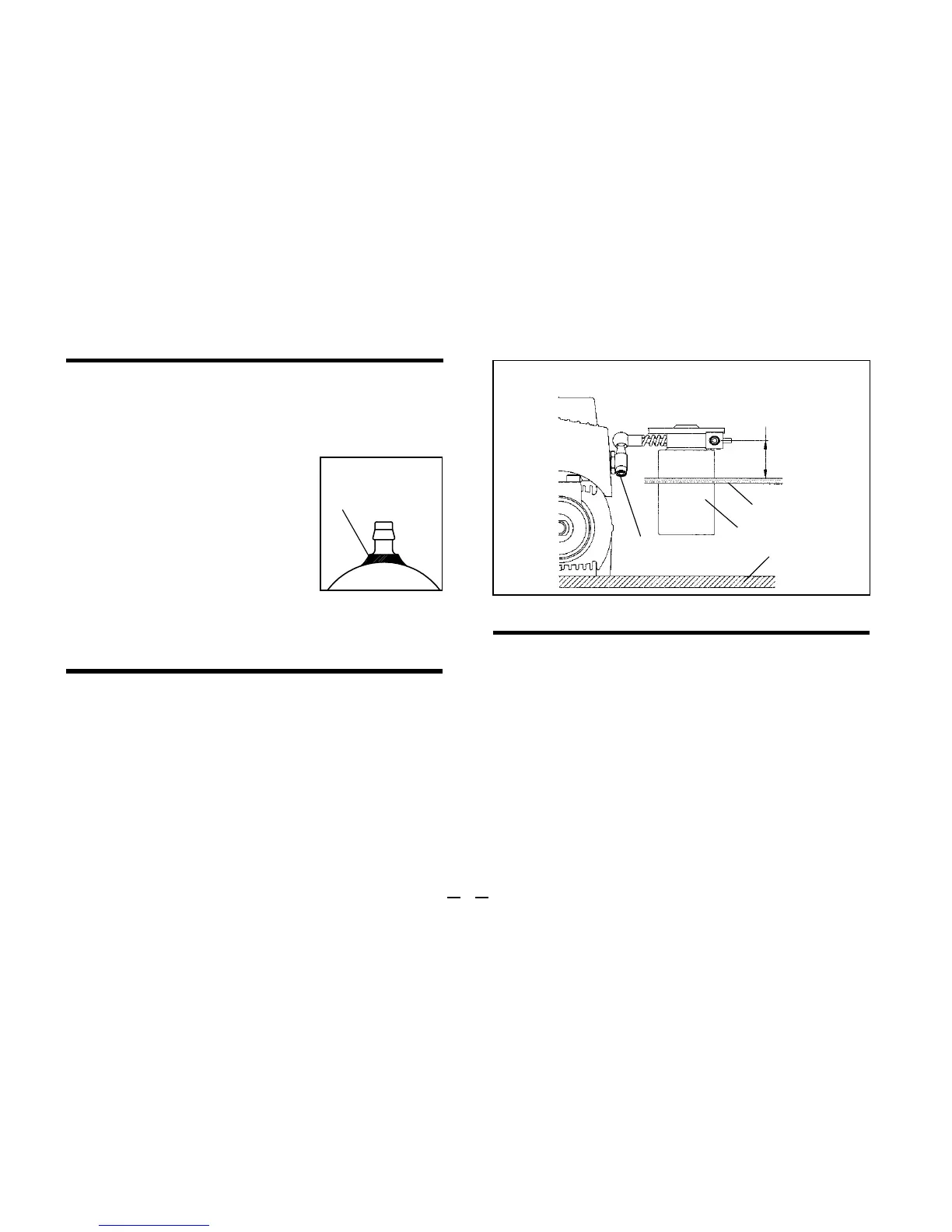

Fit the nipple (supplied) to
the silencer, applying heat-
resistant epoxy sealant at
the roor of the fitting (See
sketch).
Before installing the engine
in the chassis, secure the silencer to the en-
gine with M3X27mm screws.
Seal here applying
heat-resistent
epoxy sealant.
MODIFICATION OF O.S. E-1000 SILENCER FOR
PRESSURIZED FUEL SUPPLY
•
•
THROTTLE LINKAGE
The throttle-arm ball-link is adjustable. Loosen
3mm set-screw and adjust the link so that link-
age rod and upper plate become parallel, and
then retighten it securely.
If the linkage rod and upper plate are not paral-
lel, throttle valve will not move smooth-ly and
may dam-age the carburettor.
Adjust the ball link position so that
linkage rod and upper plate become
parallel by loosening 3mm set-screw.
Upper plate
Throttle servo
3mm set-screw
Chassis
AIR CLEANER
The air cleaner of this engine is integrated with
the engine shield. It contains a specially im-
pregnated filter element which prevents highly
damaging dust and dirt from being drawn into
the engine through the carburettor.
An O-ring is fitted between the engine shield
and carburettor to exclude air leaks.
