16 - Connect to terminal 4 in slave barrier
17 - Connect to terminal 5 in slave barrier
18 - Connect to terminal 4 in slave barrier
19 - Connect to terminal 3 in slave barrier
When used as a Master Barrier below terminals will be situated on the din rail
D
3250

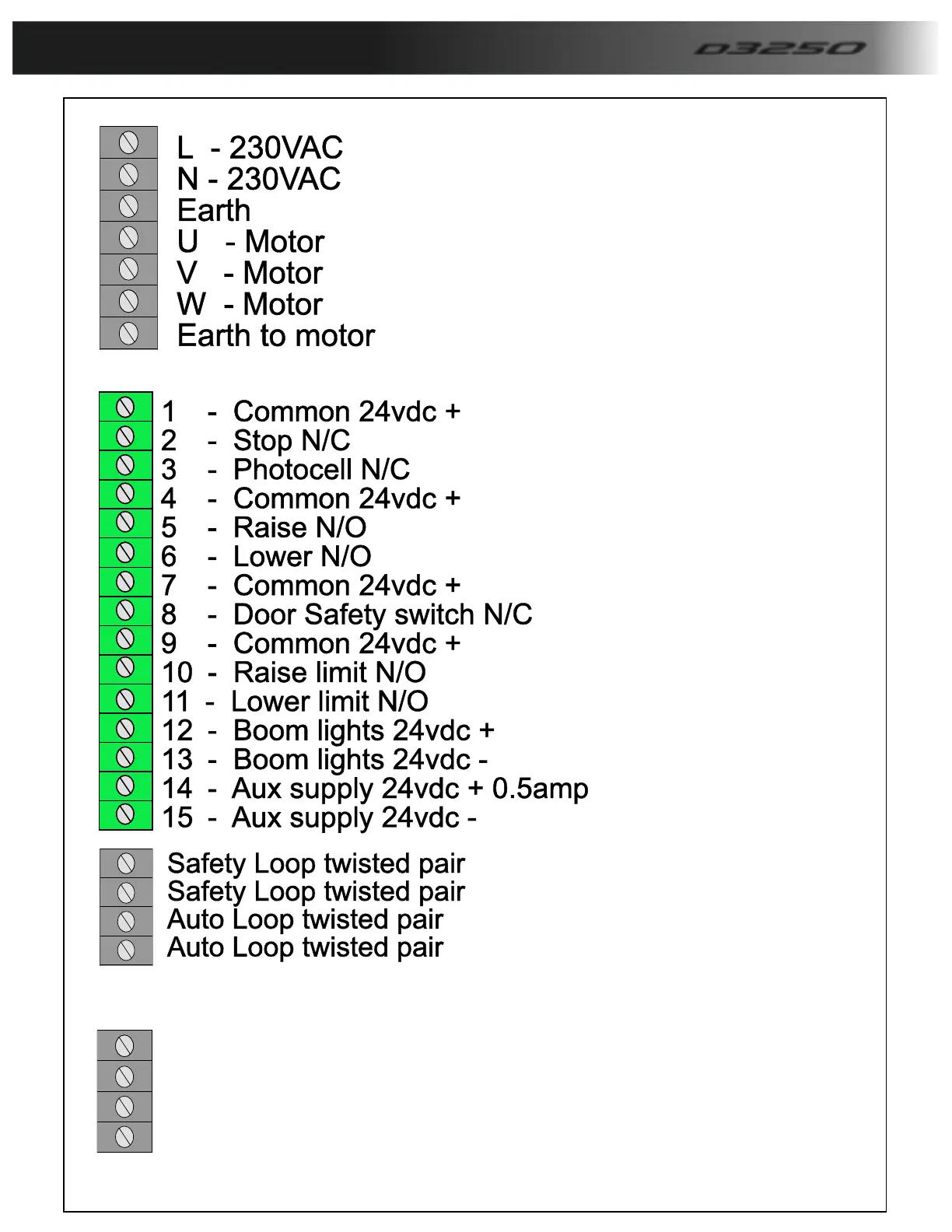

Connection Terminals
