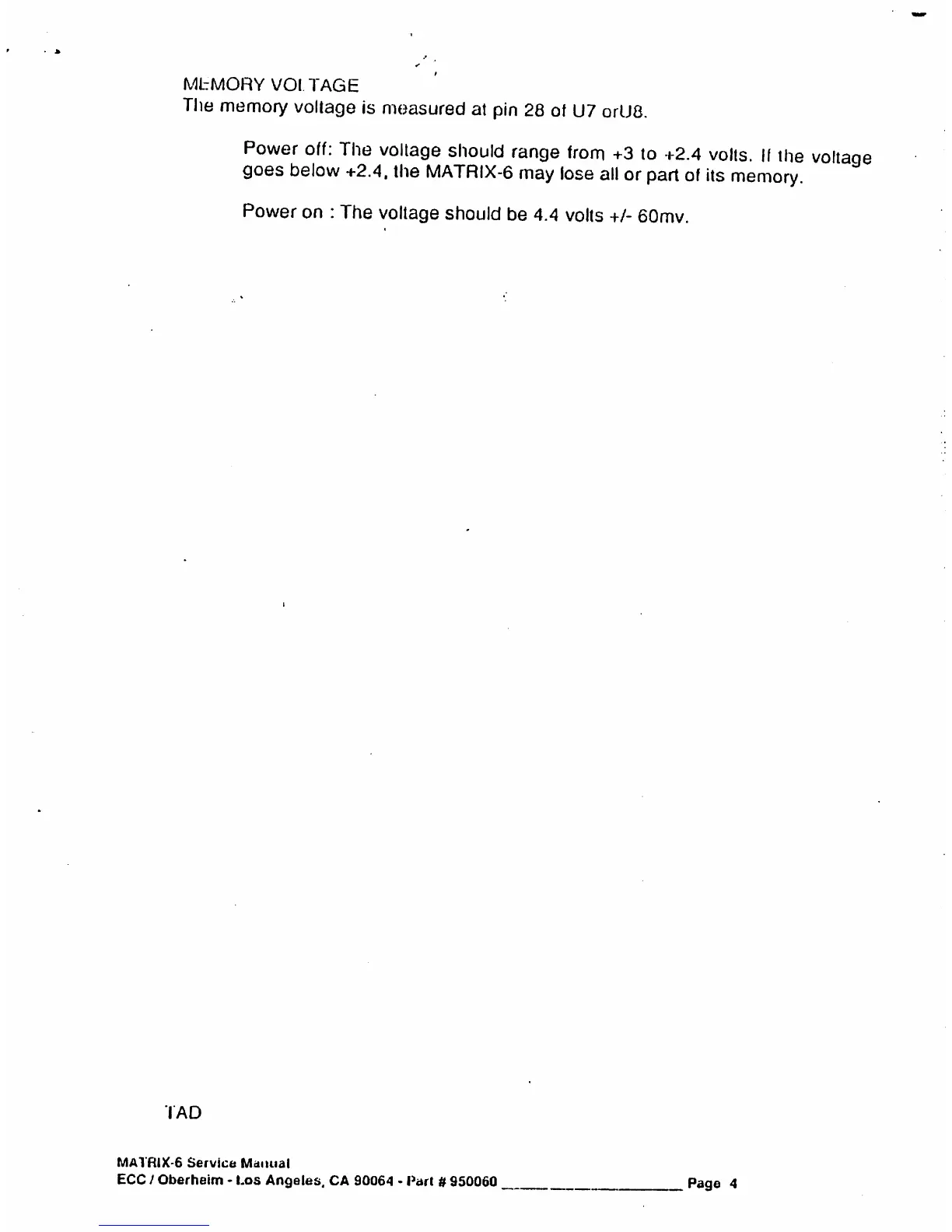

MbMORY
VOI
TAGE
The
memory
voltage
is
measured
at
pin
28
of
U7
orU8.
Power
off:
The
voltage
should
range
from
+3
to
+2.4
volts.
If
the
voltage
goes
below
+2.4,
the
MATRIX-6
may
lose
all
or
part
of
its
memory.
Power
on
:
The
voltage
should
be
4.4
volts
+/-
60mv.
TAD
MATRIX-6
Service
Manual
ECC
/
Oberheim
-
Los
Angeles,
CA
90064
-
Part
U
950060
Page
4
